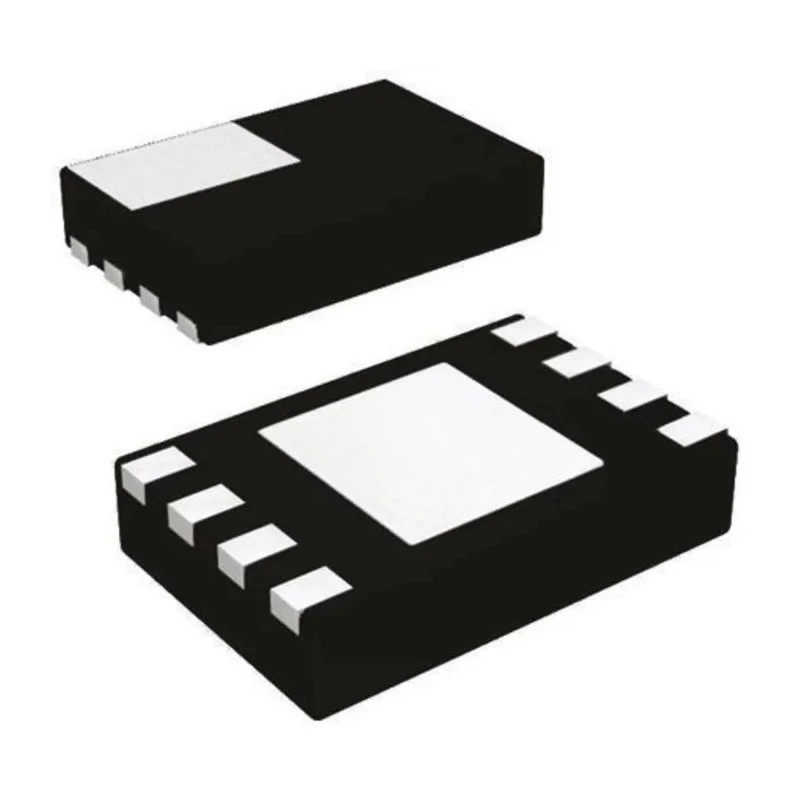

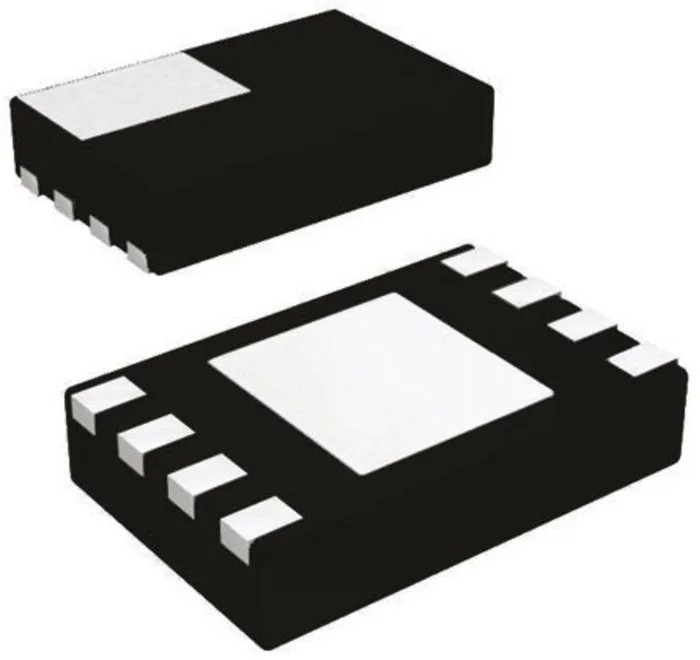

onsemi 1 MB Serial-I2C EEPROM 8-Pin UDFN Package 400 kHz Clock CAT24M01HU5I-GT3
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Length | 2mm |
| Model | CAT24M01HU5I-GT3 |
| Width | 3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -40°C |
| Memory size | 1MB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 3.5mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 128 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 400ns |
| Number of Words | 131072 |
Key Features
- Memory size of 1MB with 131072 words organized as 128 x 8 bit.
- Supports Serial-I2C interface for efficient data communication.
- Low supply current of 3.5 mA ensures energy-efficient operation.
- Operates over a wide voltage range from 1.8 V to 5.5 V.
- Compact dimensions measuring 2mm length by 3mm width in a UDFN surface mount package.
- Data retention capability of up to 100 years ensures long-term reliability.
- Maximum random access time of 400 ns supports fast data reading and writing.
- Complies with automotive standard AEC-Q100 for enhanced quality.
Product Description
onsemi CAT24M01HU5I-GT3 is a 1 MB electrically erasable programmable read-only memory (EEPROM) device designed for use in semiconductor and electronics applications requiring reliable non-volatile storage. This memory chip employs a Serial-I2C interface to enable efficient serial communication, operating at a maximum clock frequency of 400 kHz, which supports quick data access and control.
Encased in an 8-pin UDFN surface mount package with compact dimensions of 2mm length by 3mm width, this EEPROM is ideal for space-constrained electronic assemblies. It features a memory organization of 128 x 8 bits, delivering a total storage capacity of 1 MB and facilitating seamless integration in embedded systems.
The device operates efficiently with a supply voltage range from 1.8 V to 5.5 V, ensuring compatibility with diverse power sources. It maintains low power consumption characteristics with a supply current of 3.5 mA. The chip is designed to function robustly across harsh temperature environments ranging from -40°C to 85°C, making it well-suited for automotive and industrial applications.
onsemi CAT24M01HU5I-GT3 offers a data retention lifespan of 100 years, guaranteeing long-term storage reliability critical in industrial, commercial, and automotive sectors. A maximum random access time of 400 ns supports high-speed read-write cycles essential for performance-driven electronics.
Memory size of 1 MB with 131072 words organized as 128 x 8 bit. Serial-I2C interface supporting 400 kHz clock frequency. Compact 8-pin UDFN surface mount package measuring 2mm x 3mm. Wide operating voltage from 1.8 V to 5.5 V.
Wide temperature range between -40°C and 85°C for automotive compliance. Low power consumption at 3.5 mA supply current. Data retention capability of 100 years. Maximum random access time of 400 ns. Meets AEC-Q100 automotive standard assurance.
This EEPROM is widely applicable in embedded system memory storage, automotive electronic modules, industrial control systems, and electronic device manufacturing. Its adherence to automotive standards ensures it meets rigorous reliability and quality demands required for critical applications.
Explore our extensive semiconductor and memory chip categories for other high-quality electronic components designed to meet your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The memory size of this model is 1 MB, organized as 128 x 8 bits, which equates to 131072 words.
It supports a maximum clock frequency of 400 kHz for efficient data communication via the Serial-I2C interface.
This EEPROM operates over a wide voltage range from 1.8 V to 5.5 V.
The dimensions of the 8-pin UDFN package are 2 mm in length and 3 mm in width.
The maximum random access time is 400 ns, allowing for fast data reading and writing.
The supply current for this model is 3.5 mA, ensuring energy-efficient operation.
It operates effectively in a temperature range from -40°C to 85°C, suitable for automotive applications.
This EEPROM complies with the AEC-Q100 automotive standard, which ensures enhanced quality for automotive applications.
The memory is organized as 128 x 8 bits, providing a total of 131072 words.
It is widely applicable in embedded system memory storage, automotive electronic modules, and industrial control systems.
This model uses a Serial-I2C interface for efficient data communication.
The data retention capability is up to 100 years, ensuring long-term reliability.
