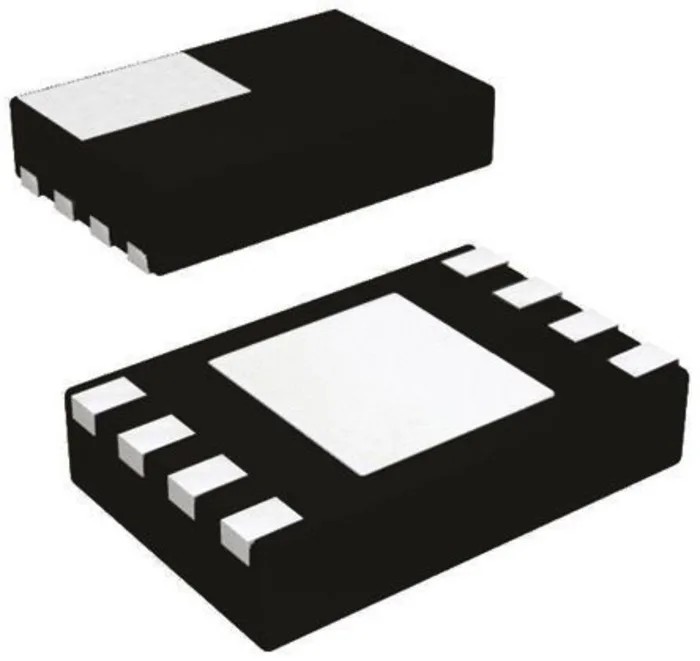

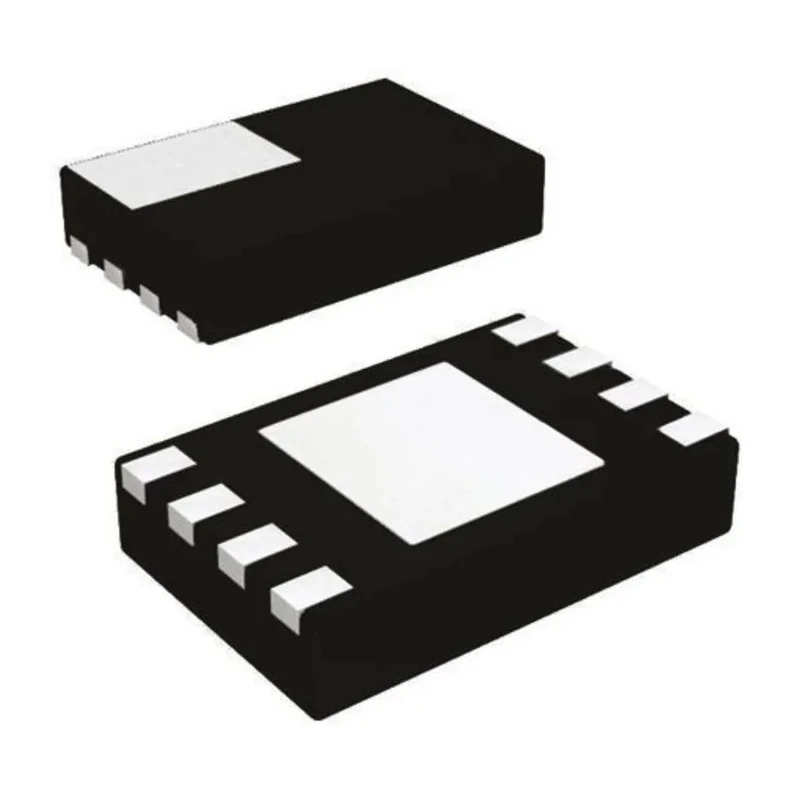

onsemi 4 kB EEPROM 900 ns 8-Pin UDFN Serial-I2C CAT24C04HU4I-GT3
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 550μm |
| Length | 2.05mm |
| Model | CAT24C04HU4I-GT3 |
| Width | 3.05mm |
| Mount Type | Surface |
| Series | CAT24Cxx |
| Maximum Operating Temperature | 85°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -40°C |
| Memory size | 4kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 2mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 512 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 512 |
Key Features
- Memory size of 4 kB with 512 x 8 bit organization for efficient data storage.
- Maximum random access time of 900 ns ensuring fast memory access.
- Operating voltage range from 1.7 V to 5.5 V suitable for low power designs.
- Compact 8-pin UDFN surface mount package dimensions 2.05 mm x 3.05 mm x 0.55 mm.
- Supports I2C serial interface with a maximum clock frequency of 400 kHz.
- Data retention guaranteed up to 100 years for long-term reliability.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Complies with automotive standard AEC-Q100 ensuring robust quality.
Product Description
onsemi CAT24C04HU4I-GT3 is a high-performance 4 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) chip featuring a fast 900 ns random access time. It uses an 8-pin Ultra Thin Dual Flat No-Lead (UDFN) surface mount package, making it highly suitable for compact and space-constrained applications.
This EEPROM provides a Serial I²C interface operating up to 400 kHz, enabling seamless integration with microcontrollers and other digital systems. It operates over a supply voltage range from 1.7 V to 5.5 V, providing flexibility in low-power or automotive-grade embedded systems.
The device supports 512 words with 8 bits per word, organized as 512 x 8 bits memory, delivering reliable data storage with guaranteed retention for up to 100 years. It withstands extreme operational conditions with a temperature range from -40°C to +85°C, meeting automotive industry standards through AEC-Q100 certification.
The compact dimensions (2.05 mm length, 3.05 mm width, 550 μm height) and surface mount technology (SMT) package type facilitate automated assembly in manufacturing. The chip consumes a supply current of only 2 mA, contributing to energy-efficient designs.
Memory size of 4 kB with 512 x 8 bit organization for efficient data storage. Maximum random access time of 900 ns ensuring fast memory access. Operating voltage range from 1.7 V to 5.5 V suitable for low power designs. Compact 8-pin UDFN surface mount package dimensions 2.05 mm x 3.05 mm x 0.55 mm.
Supports I2C serial interface with up to 400 kHz clock frequency. Data retention guaranteed up to 100 years for long-term reliability. Wide operating temperature range from -40°C to +85°C for harsh environments. Automotive standard AEC-Q100 compliance ensures high ruggedness and quality.
Supply current of 2 mA ideal for power-efficient circuit designs.
This EEPROM chip is suitable for use in industrial, automotive, and consumer electronics applications requiring non-volatile memory with a balance of speed, durability, and compactness. It is ideal for embedded systems, microcontroller memory expansion, and data logging modules.
Explore more electronic components and semiconductors at EnvMart to complement this onsemi EEPROM chip.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EEPROM has a memory size of 4 kB, organized as 512 x 8 bits.
It features a maximum random access time of 900 ns, ensuring fast memory access.
The operating voltage range is from 1.7 V to 5.5 V, making it suitable for low power designs.
It supports a Serial I²C interface with a maximum clock frequency of 400 kHz.
The EEPROM comes in a compact 8-pin UDFN package with dimensions of 2.05 mm x 3.05 mm x 0.55 mm.
The supply current is 2 mA, contributing to energy-efficient designs.
It operates over a wide temperature range from -40°C to +85°C, suitable for harsh environments.
Yes, it complies with the automotive standard AEC-Q100, ensuring robust quality.
Data retention is guaranteed for up to 100 years, providing long-term reliability.
The EEPROM supports 8 bits per word, organized as 512 words.
It uses a surface mount type, specifically in an 8-pin UDFN package.
This EEPROM belongs to the CAT24Cxx series.
