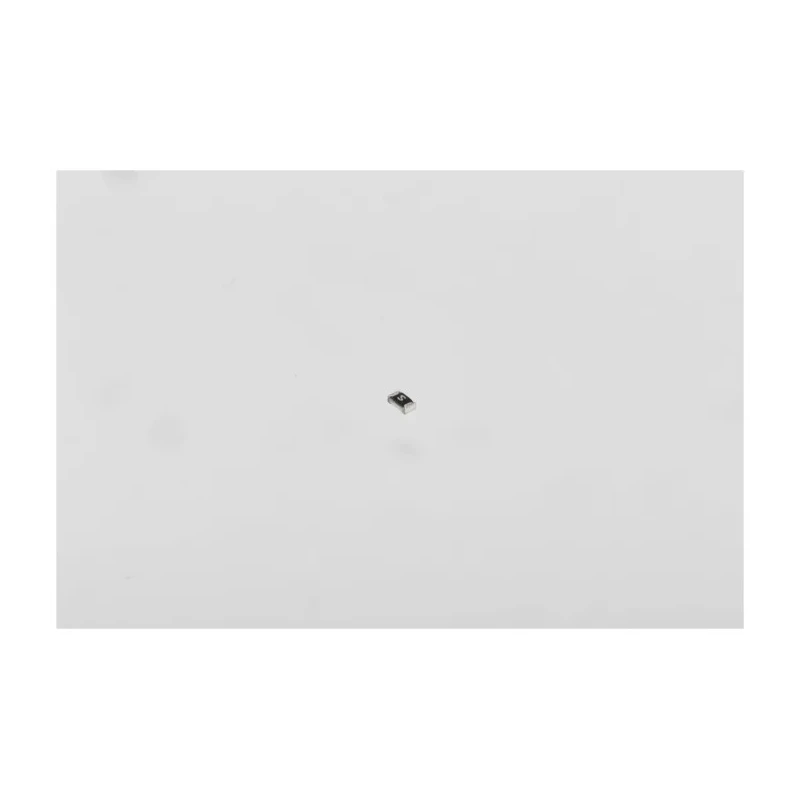

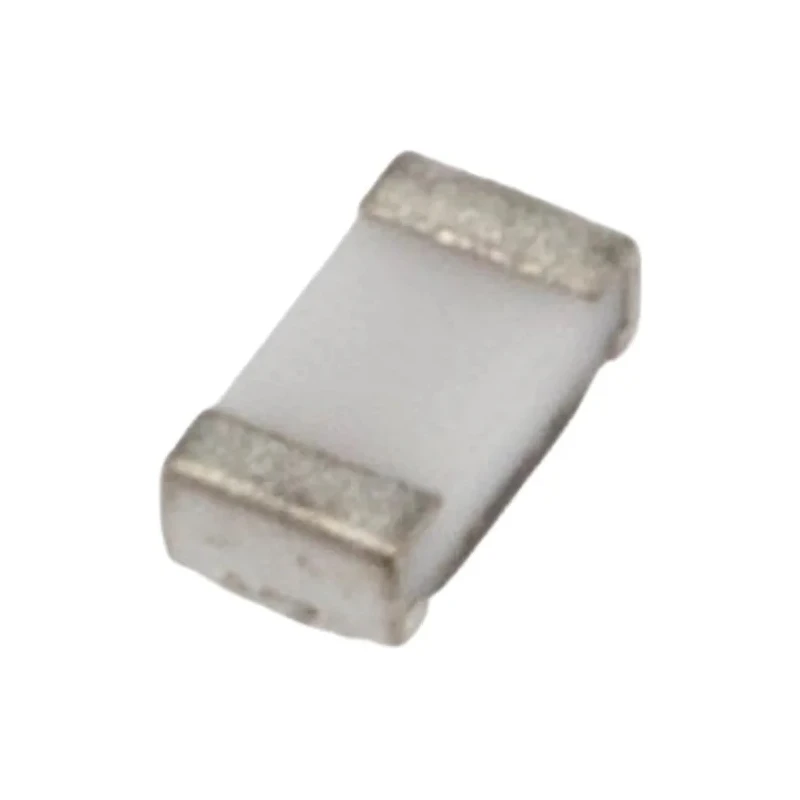

Panasonic Non-Resettable Fuse 4A 32V dc Fast Acting Alumina Substrate Micro Chip Fuse ERBRE4R00V
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 32V dc |
| Brand | Panasonic |
| Body Material | Alumina Substrate |
| Height | 0.54mm |
| Model | ERBRE4R00V |
| Depth | 1.6mm |
| Width | 0.8mm |
| Current Rating | 4A |
| Series | Micro Chip Fuse |
| Maximum Operating Temperature | -40°C |
| Resistance | 22mΩ |
| Package Type | Tape |
| Minimum Operating Temperature | 125°C |
| Package Size | 0603 |
| Breaking Capacity | 300A |
| Standards/Approvals | RoHS, UL 248-14 |
| Fuse Characteristics | Fast Acting |
Key Features
- Compact 0603 package size for space-saving surface mount applications.
- Alumina substrate body material ensures high temperature stability.
- Fast acting fuse characteristic with 4A current rating and 32V dc voltage.
- High breaking capacity of 300A for effective circuit interruption.
- Wide operating temperature range from -40°C to 125°C.
- Low resistance of 22 milliohms reduces energy loss.
- RoHS compliant and conforms to UL 248-14 standards.
- Ideal for electronics such as alarm systems, audio/video equipment, and medical devices.
Product Description
Panasonic ERBRE4R00V is a non-resettable, fast acting micro chip fuse with a current rating of 4A and voltage rating of 32V dc. It features an alumina substrate body for superior durability and thermal stability during operation. The fuse is housed in a compact 0603 tape package suitable for surface mount technology, optimizing space efficiency in circuit boards.
This fuse provides a high breaking capacity of 300A, ensuring robust protection by safely interrupting fault currents. Its resistance of 22 milliohms contributes to minimal energy dissipation across the fuse element. The operating temperature range spans from -40°C minimum to 125°C maximum, allowing reliable performance in diverse environmental conditions.
The Panasonic ERB series is engineered for applications requiring high reliability, including protection of sensitive electronic components such as alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical instrumentation. The fast acting characteristic ensures prompt response to overcurrent conditions and inrush current tolerance.
This product complies with RoHS directives and meets UL 248-14 electrical safety standards, guaranteeing industry recognized quality and safety compliance. Packaged on tape, it facilitates automated insertion processes in manufacturing, improving production efficiency.
Compact 0603 size micro chip fuse designed for surface mount technology. Alumina substrate body material offers high temperature resilience. Fast acting 4A fuse with 32V dc rating ensures reliable circuit protection. High breaking capacity of 300A for safe interruption of fault currents.
Wide temperature tolerance from -40°C to 125°C for versatile environments. Low resistance element minimizes energy loss during operation. RoHS compliant and UL 248-14 certified for safety and environmental standards. Ideal for electronics, power supplies, alarm systems and medical devices.
Explore more high quality Non-Resettable Fuses and related electrical components in our Electronics & Electricals category on EnvMart, designed to meet industrial and commercial application demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ERBRE4R00V has a current rating of 4A.
It supports a voltage rating of 32V dc.
The breaking capacity of this fuse is 300A, allowing it to safely interrupt fault currents.
This model has dimensions of 0.54mm in height, 0.8mm in width, and 1.6mm in depth.
The fuse comes in a tape package type, which facilitates automated insertion in manufacturing processes.
The fuse features an alumina substrate body material, which provides high temperature stability.
The operating temperature range spans from -40°C to 125°C.
Yes, it is RoHS compliant and conforms to UL 248-14 standards.
This model features a fast acting fuse characteristic, ensuring a prompt response to overcurrent conditions.
It is suitable for use in electronics such as alarm systems, audio/video equipment, and medical devices.
The resistance of the Panasonic ERBRE4R00V is 22 milliohms, which helps reduce energy loss.
The country of origin for this fuse is Japan.
