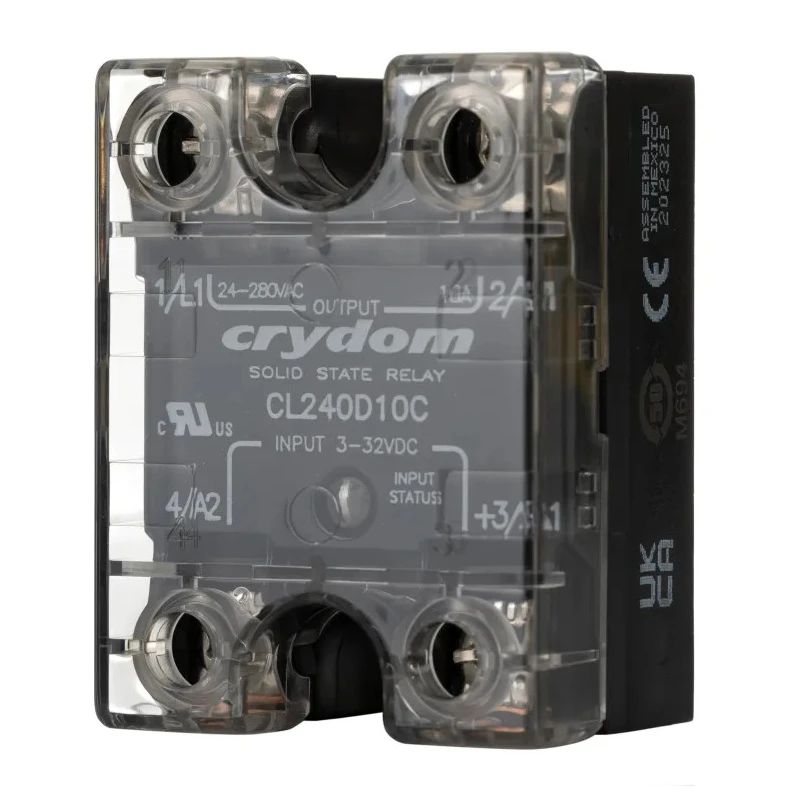

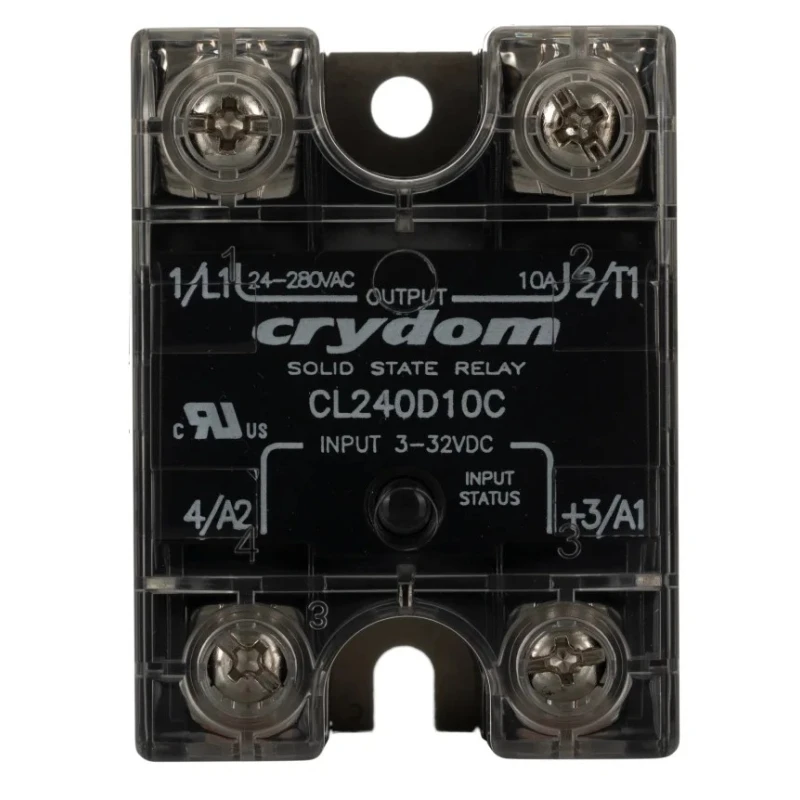

Crydom Solid State Relay Panel Mount 10 A Load 280 Vrms Load 32V dc Control CL240D10C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 58.8mm |
| Length | 44.5mm |
| Model | CL240D10C |
| IP Rating | IP20, IP00 |
| Width | 30.9mm |
| Mount Type | Panel |
| Output type | Triac |
| Series | CL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | UL, RoHS, cRL US, CE |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 7mArms |
Key Features
- Panel mount design with screw terminals for secure installation.
- Supports maximum load current of 10 amperes for reliable switching.
- Capable of switching up to 280 Vrms load voltage with zero voltage turn-on function.
- Input control voltage ranging between 3V dc minimum and 32V dc maximum.
- Compact dimensions of 58.8mm height, 44.5mm length, and 30.9mm width for easy panel integration.
- Equipped with built-in LED indicator for input status monitoring.
- IP20 rated cover provides finger-safe protection and resistance against objects larger than 12mm.
- Designed with anti-rotation barriers to withstand heavy vibrations and prevent disconnection.
Product Description
Crydom CL240D10C is a high-performance solid state relay designed for industrial and commercial applications requiring reliable AC load switching. The relay supports a maximum load current of 10 amperes and operates at a maximum load voltage of 280 Vrms, making it ideal for medium-power control circuits.
This model features a panel mount form factor with durable screw terminals, ensuring secure and straightforward installation. The relay employs zero voltage turn-on switching, which reduces electrical noise and prolongs component life.
Input control voltage ranges from 3V dc to 32V dc, allowing compatibility with various control systems. Its compact size, measuring 58.8mm in height, 44.5mm in length, and 30.9mm in width, permits installation in confined panel spaces without sacrificing performance.
The relay's IP20-rated housing provides finger-safe operation, protecting users from accidental contact while also safeguarding the device against intrusion by objects larger than 12mm. The inclusion of anti-rotation barriers enhances stability under heavy vibration, making this relay highly suitable for packaging lines, industrial robotics, and other demanding automation environments.
Additional electrical characteristics include an off state leakage current of 7mArms and an 8pF capacitance. The relay's triac output type supports efficient switching of AC loads, contributing to energy savings and operational efficiency.
Panel mount with screw terminals for secure fixing. Maximum load current: 10 A. Zero voltage turn-on function reduces electrical noise. Wide input control voltage range (3V dc to 32V dc). Compact dimensions for easy panel integration.
IP20-rated finger-safe housing. Anti-rotation barriers provide vibration resistance. Low off state leakage current. Triac output suitable for AC load control.
This solid state relay is ideal for industrial automation, manufacturing machinery, HVAC control systems, packaging equipment, and robotic applications. Trust Crydom's CL240D10C for durable, high-quality switching performance on your control panels.
Explore our range of Solid State Relays and related components to find the best solutions for your circuits at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 10 amperes.
The input control voltage for this model ranges from 3V dc to 32V dc.
It can handle a maximum load voltage of 280 Vrms.
This relay features a triac output type, suitable for efficient AC load control.
The dimensions are 58.8mm in height, 44.5mm in length, and 30.9mm in width.
The relay has an IP20 rating, providing finger-safe protection against objects larger than 12mm.
The zero voltage turn-on function reduces electrical noise and prolongs component life.
It uses screw terminals for secure installation.
The minimum operating temperature is -40°C and the maximum is 80°C.
This relay complies with UL, RoHS, cRL US, and CE standards.
The off state leakage current is 7mArms.
It is suitable for industrial automation, manufacturing machinery, HVAC control systems, packaging equipment, and robotic applications.
