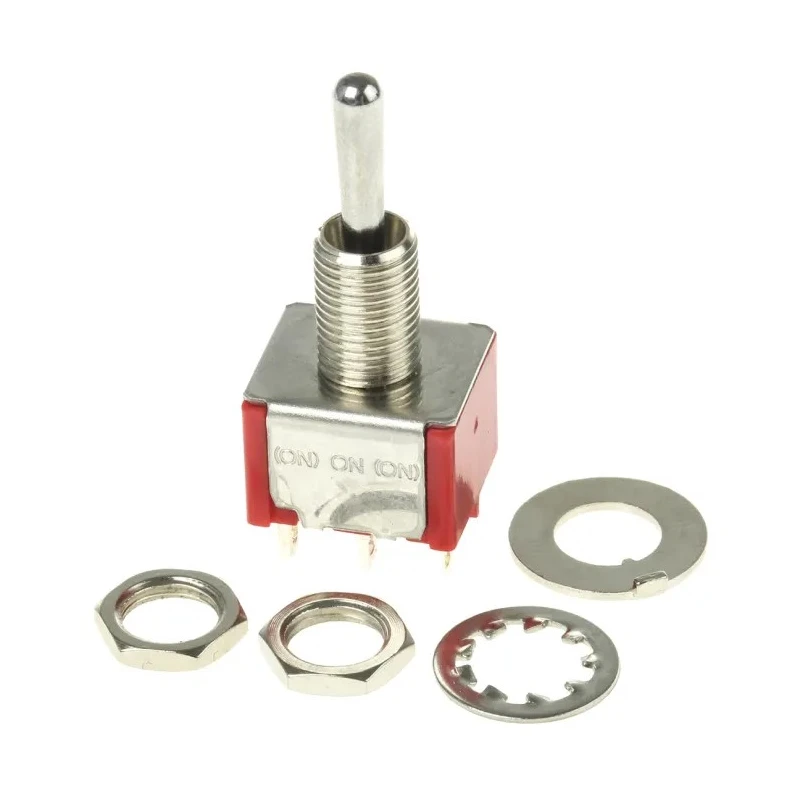

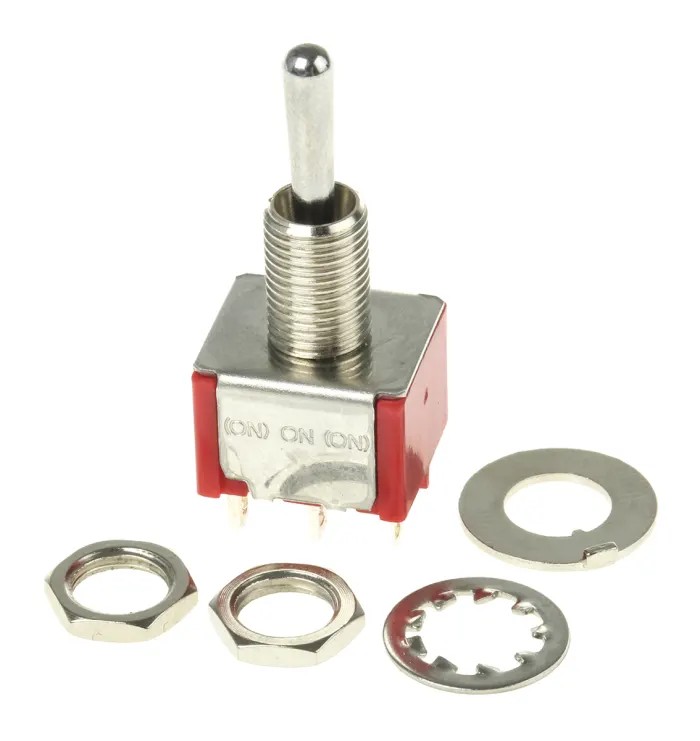

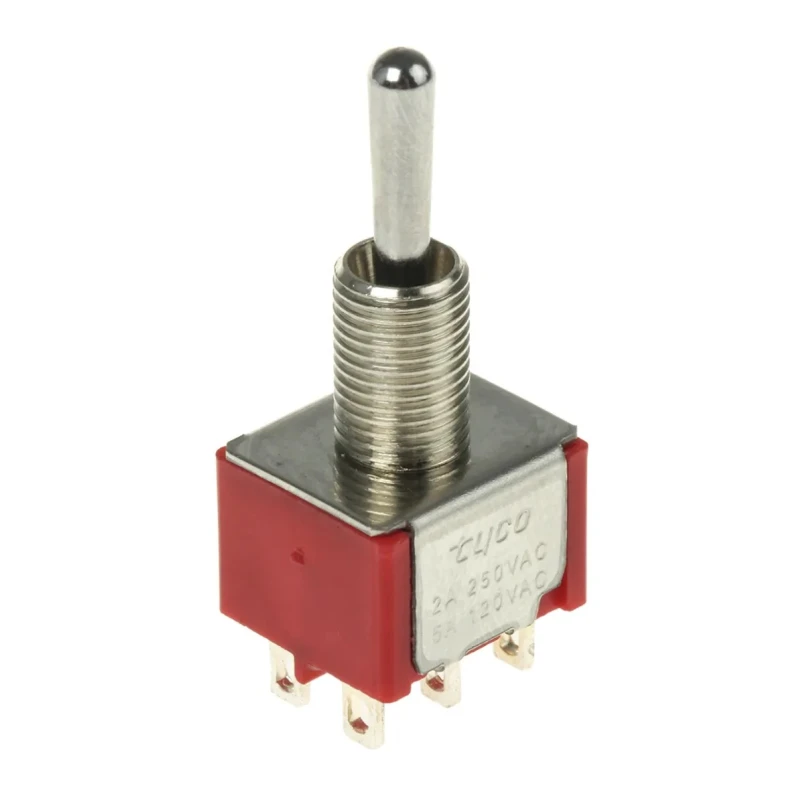

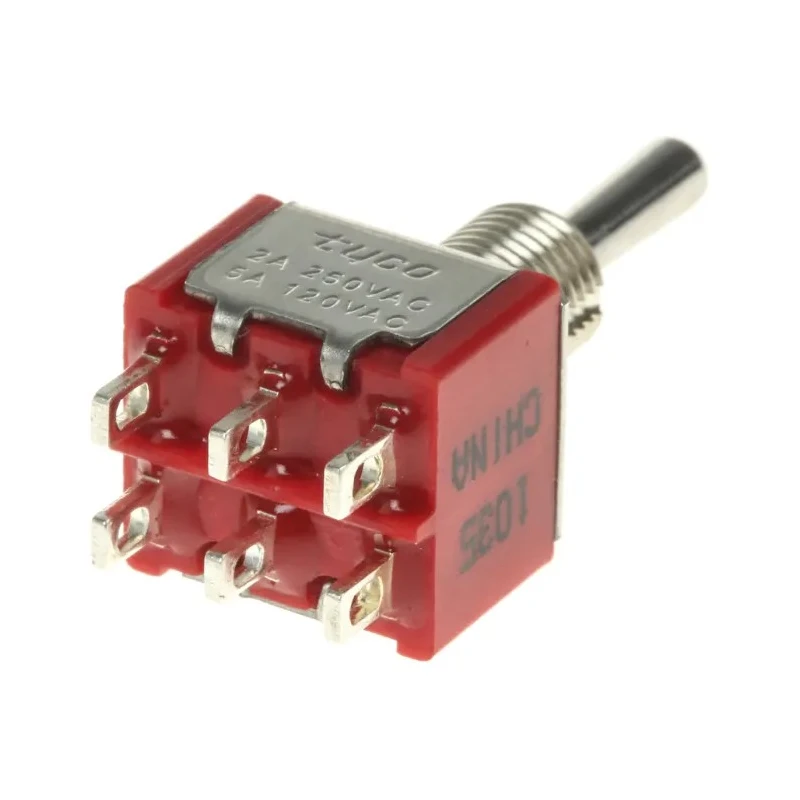

TE Connectivity Gemini A Series Panel Mount Toggle Switch, On-On-On, DP3T, Wire Lug Terminal, 28 V dc, 125 V ac 4-1825139-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Gemini A Series Panel Mount Toggle Switch, On-On-On, DP3T, Wire Lug Terminal, 28 V dc, 125 V ac 4-1825139-5

Name: TE Connectivity Gemini A Series Panel Mount Toggle Switch, On-On-On, DP3T, Wire Lug Terminal, 28 V dc, 125 V ac 4-1825139-5
Brand: TE Connectivity
SKU: 324251
Price: 10.8 USD
Availability: InStock



Category Toggle Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	0.35in
Length	0.5in
Width	0.45in
Mount Type	Panel
Series	Gemini A
Maximum Operating Temperature	85°C
Contact Configuration	DP3T
Switch Configuration	(On)-On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Wire Lug
Standards/Approvals	RoHS
Switch Operation	On-On-On
Actuator Length	10.41mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Contact AC Voltage	125V ac
Actuator Material	Phenolic

Key Features

Designed for panel mounting with wire lug terminals for secure connections.
Supports 5A switch contact current with a contact DC voltage of 28 V and AC voltage of 125 V.
Actuator made of phenolic material with a length of 10.41 mm ensures durability.
Operates reliably in temperatures ranging from -30°C to 85°C.
Compact dimensions with length 0.5 in, width 0.45 in, and height 0.35 in for space-saving installation.
Epoxy sealed terminals and sturdy stainless steel frame enhance longevity and performance.
Complies with RoHS standards ensuring environmental safety.
Part of the Gemini A series for consistent quality in toggle switches.

Product Description

TE Connectivity 4-1825139-5 Gemini A Series Panel Mount Toggle Switch provides reliable On-On-On DP3T switch operation suited for electrical and automation applications.

Its wire lug terminals enable stable and secure electrical connections, while the epoxy sealed terminals along with a stainless steel frame provide robustness against mechanical stress and environmental factors.

The phenolic actuator with a length of 10.41 mm offers durable operation, making it suitable for frequent switching tasks. It supports a switch contact current of 5A and operates under DC voltage of 28 V and AC voltage of 125 V, providing flexibility across a variety of circuits.

Engineered to operate efficiently between -30°C to 85°C, this toggle switch meets strict RoHS environmental standards, making it a responsible choice for industrial use. The compact size (0.5 in length, 0.45 in width, and 0.35 in height) helps in installations where space is at a premium.

Typical applications include electrical panels, machinery controls, and automation equipment in industrial, manufacturing, and commercial environments. Panel mount design with wire lug terminals for reliable connectivity.

Triple pole, triple throw (DP3T) contact configuration enables complex switching functions. On-On-On switch operation provides three stable switch positions for versatile control. Epoxy-sealed terminals and stainless steel frame enhance robustness and durability.

Phenolic actuator material ensures long-lasting mechanical performance. Compact dimensions facilitate integration in tight panel layouts. Suitable for use in a broad temperature range from -30°C up to 85°C. Compliant with RoHS directives ensuring eco-friendly components.

Explore the full range of reliable TE Connectivity Toggle Switches on EnvMart for your electrical and automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a DP3T (Double Pole Triple Throw) contact configuration, allowing for complex switching functions with three stable positions.

It supports a contact DC voltage of 28 V and an AC voltage of 125 V, providing versatility for different electrical circuits.

The maximum operating temperature for this toggle switch is 85°C, making it suitable for a range of environments.

This unit can operate in temperatures as low as -30°C, allowing for reliable performance in colder conditions.

The switch contact current rating is 5A, which indicates the maximum current it can handle safely.

The dimensions of this model are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height, making it compact for panel installations.

It features wire lug terminals, providing secure and stable electrical connections for panel mounting.

The actuator is made from phenolic material, which contributes to its durability and mechanical performance.

Yes, it complies with RoHS standards, ensuring that it meets environmental safety regulations.

The required panel cutout size for this toggle switch is 6.35 mm, facilitating proper installation in panels.

This model is part of the Gemini A series, known for consistent quality in toggle switches.

Typical applications include electrical panels, machinery controls, and automation equipment in industrial, manufacturing, and commercial environments.
