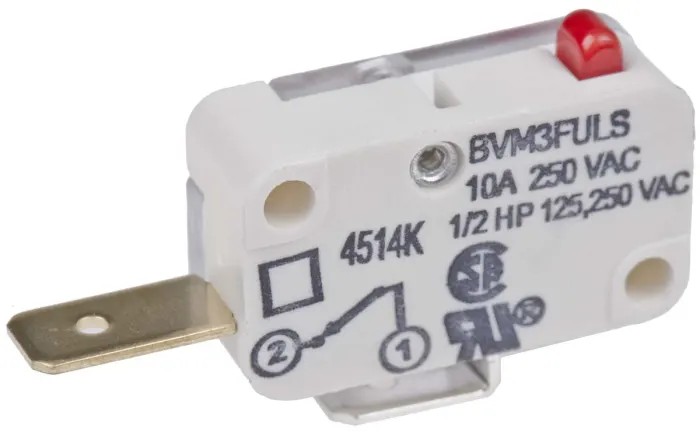

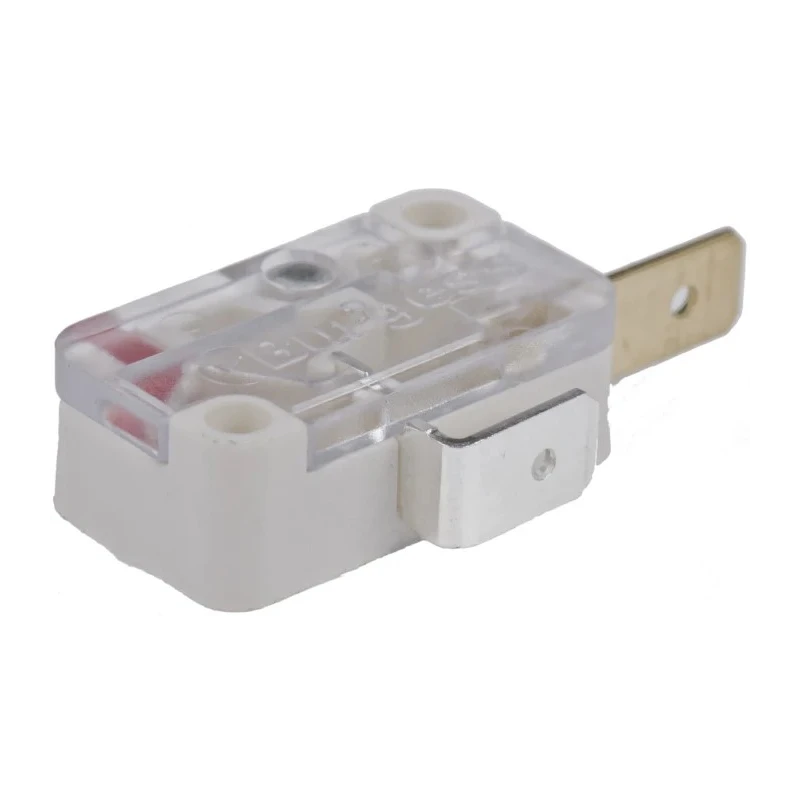

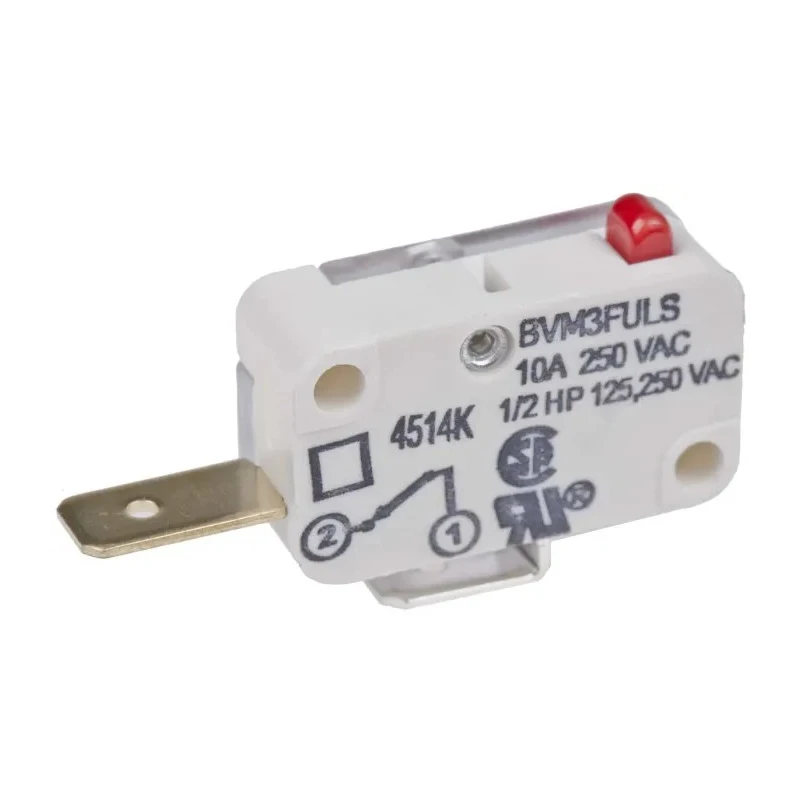

Saia-Burgess Plunger Micro Switch, Tab Terminal 10A 250 V AC SPST-NC IP40 42680

Saia-Burgess 42680 Plunger Micro Switch with Tab Terminal is designed for industrial and automation applications requiring dependable switching performance. Rated at 10A and 250 V AC, the switch employs a single-pole single-throw normally closed (SPST-NC) configuration with failsafe positive break action to prevent welding of contacts during operation.

The actuator is a robust plunger type, offering precise mechanical activation with an operating force of 4.5N. The housing is constructed from fibreglass reinforced nylon (PA 6.6), providing excellent strength and durability under a variety of conditions, with an ingress protection rating of IP40 ensuring protection against solid objects.

This micro switch operates reliably over a broad temperature range from -40°C to 85°C, suitable for industrial, laboratory, and HVAC environments. The contact materials use silver and silver cadmium oxide (Ag + AgCdO), enhancing conductivity and lifespan. The switch includes faston terminals sized 6.3 x 0.8 mm for quick and secure wiring connections.

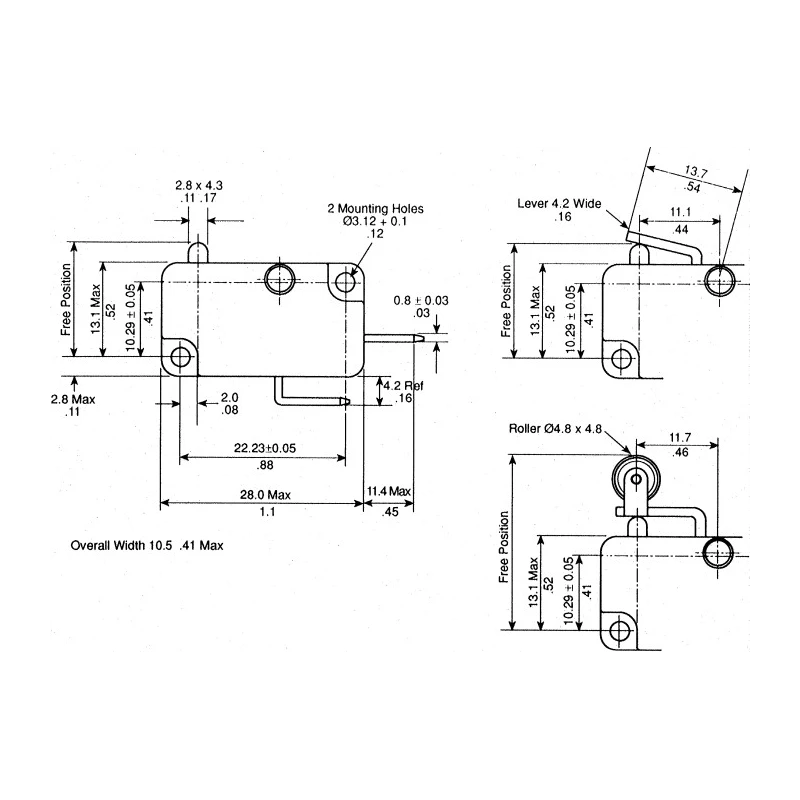

The compact size with dimensions height 15.9 mm, width 10.1 mm, and depth 28 mm allows for integration into constrained spaces. The device is approved to UL and CSA standards, certifying its safety and performance for commercial and industrial sectors.

The mechanical life rating denotes 10 million operations, signaling long-lasting reliability in various industrial applications such as automation, instrumentation, and control systems.

The actuator type is plunger for reliable mechanical operation. Housing made of fibreglass reinforced nylon ensures durability. Operating force required is 4.5N for actuation. Wide operating temperature range from -40°C to 85°C suits diverse environments.

Contact material comprising Ag and AgCdO supports stable electrical performance. Compact dimensions of 15.9mm height, 10.1mm width, and 28mm depth. Switch supports up to 10 million mechanical operations for longevity. Terminal type is standard tab suitable for quick connection.

Certified to CSA and UL standards ensuring industrial compliance.
