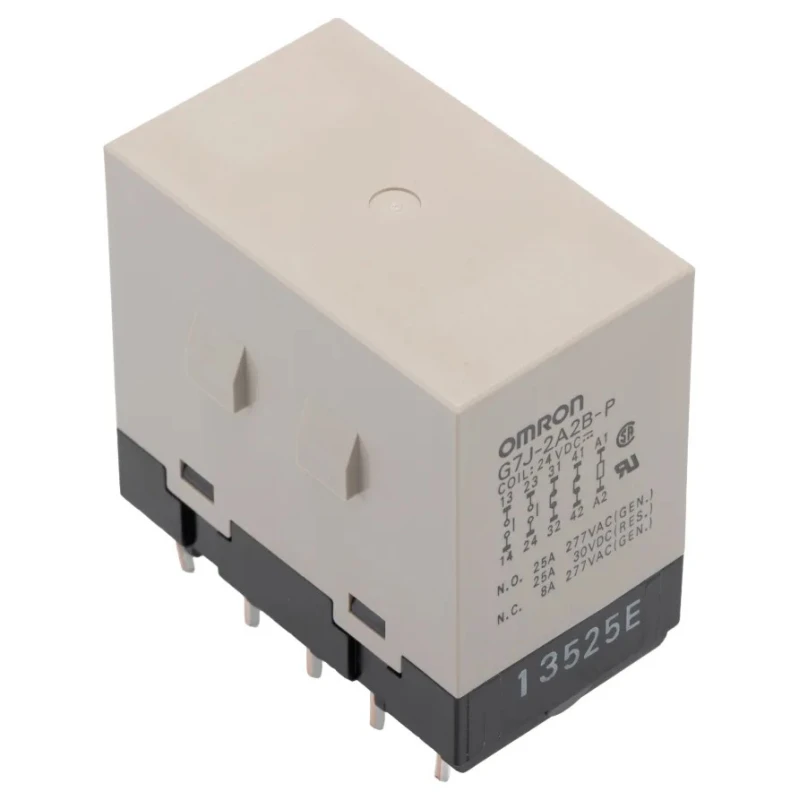

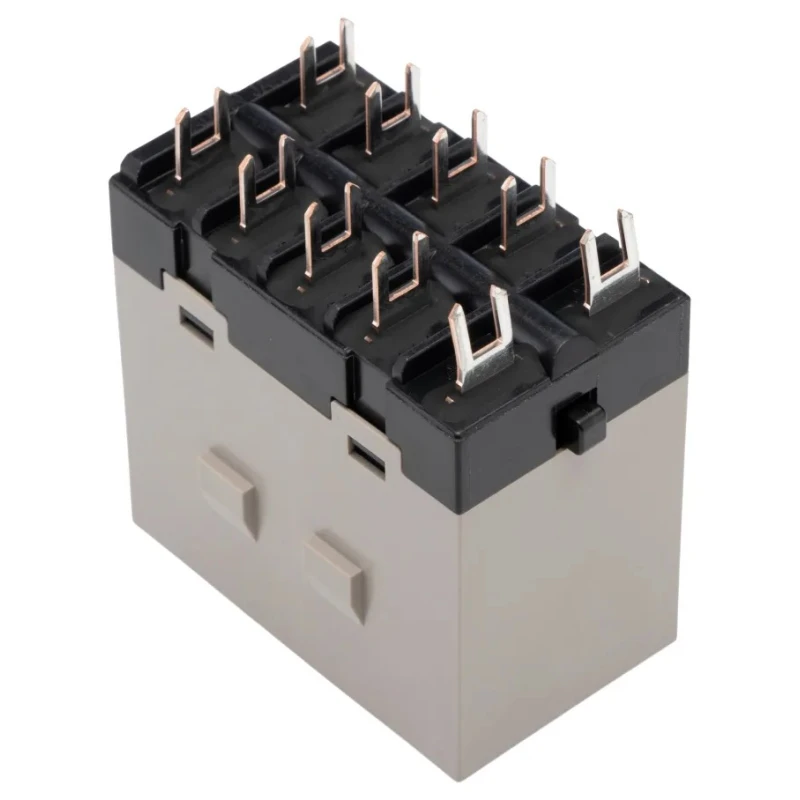

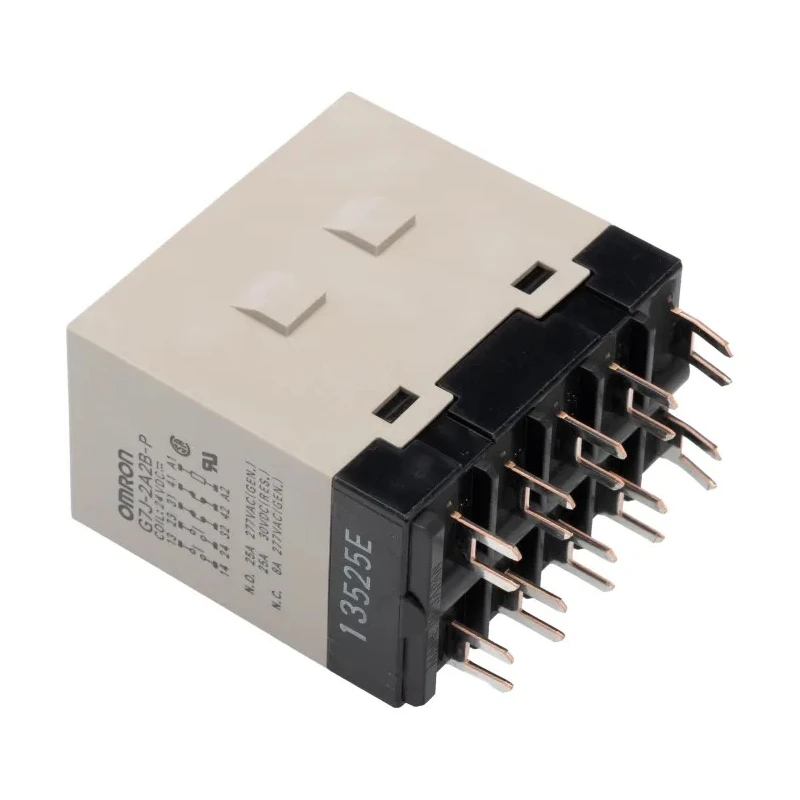

Omron PCB Power Relay 24V DC Coil 25A Switching Current DPST-NO DPST-NC G7J-2A2B-P DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 51mm |
| Length | 51.5mm |
| Model | G7J-2A2B-P DC24 |
| Width | 33.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7J |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST-NO, DPST-NC |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | PCB |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 288Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 2W |
Key Features
- Compact relay designed for PCB mounting in industrial automation systems.
- 24V DC coil voltage ensures low power consumption with 2W coil power.
- Capable of switching 25A current at up to 240V AC and 24V DC loads.
- Silver alloy contacts minimize resistance and enhance switching life.
- Operates reliably in temperatures ranging from -25°C to 60°C for versatile environments.
- Holds UL and CSA safety approvals for compliant electrical installations.
- Coil resistance of 288 ohms reduces driver current requirements.
- Contact resistance rated at 100mΩ to minimize voltage drop under load.
Product Description
Omron G7J-2A2B-P DC24 PCB Power Relay is a compact electromechanical device engineered for reliable power switching on printed circuit boards in industrial automation and control settings. Featuring a 24V DC coil rated at 2 watts, this relay delivers efficient low-power activation while switching high-current loads up to 25 amps.
The dual-pole, double-throw normally open and normally closed contact configuration (DPST-NO, DPST-NC) is designed to facilitate versatile power distribution and changeover duties in control panels and machinery.
With a switching capacity up to 240V AC and 24V DC, this power relay suits industrial automation applications such as motor control, HVAC systems, machine control panels, and vehicle test rigs. The silver alloy contacts ensure excellent conductivity and durability while maintaining a low contact resistance of 100 milliohms to minimize voltage loss.
This relay operates effectively over a temperature range of -25°C to 60°C, making it suitable for typical indoor factory and commercial environments without extra cooling requirements. The coil resistance of 288 ohms controls current draw on the control electronics, supporting efficient system design.
The G7J series power relay is fully compliant with UL and CSA safety standards, providing assured reliability and regulatory acceptance in certified electrical installations. Compact design compatible with PCB mounting simplifies integration into industrial printed circuit board assemblies.
Designed for robust high-current switching with 25A capacity and 5.5kVA switching power rating. Silver alloy contact material enhances electrical performance and extends contact lifespan. Suitable for industrial automation, manufacturing, HVAC, and vehicle testing control applications.
Certified to key safety standards including UL and CSA.
Choose Omron G7J-2A2B-P DC24 for efficient and reliable PCB-mounted power relay solutions. Explore more Power Relays and automation components at EnvMart for enhanced industrial system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay is capable of switching a current of up to 25A.
The coil voltage for this model is 24V DC, and it has a coil power rating of 2W.
The G7J-2A2B-P DC24 features a dual-pole, double-throw configuration with normally open (DPST-NO) and normally closed (DPST-NC) contacts.
This relay can switch voltages of up to 240V AC and 24V DC.
The dimensions of this power relay are 51mm in height, 51.5mm in length, and 33.5mm in width.
The contact resistance is rated at 100 milliohms (100mΩ).
This relay operates effectively in temperatures ranging from -25°C to 60°C.
Yes, this relay holds safety approvals from UL and CSA, ensuring compliance with regulatory standards.
This model is designed for PCB mounting, making it suitable for integration into printed circuit board assemblies.
The coil resistance for this relay is 288 ohms.
The contacts are made of silver alloy, which enhances conductivity and switching life.
This power relay is suitable for applications in industrial automation, motor control, HVAC systems, and vehicle testing control.
