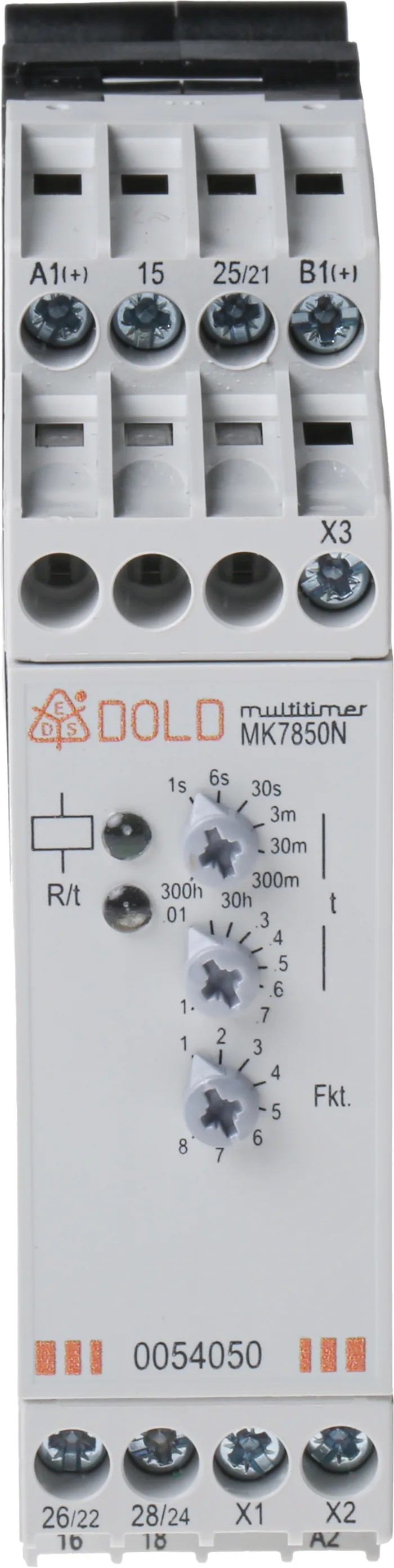

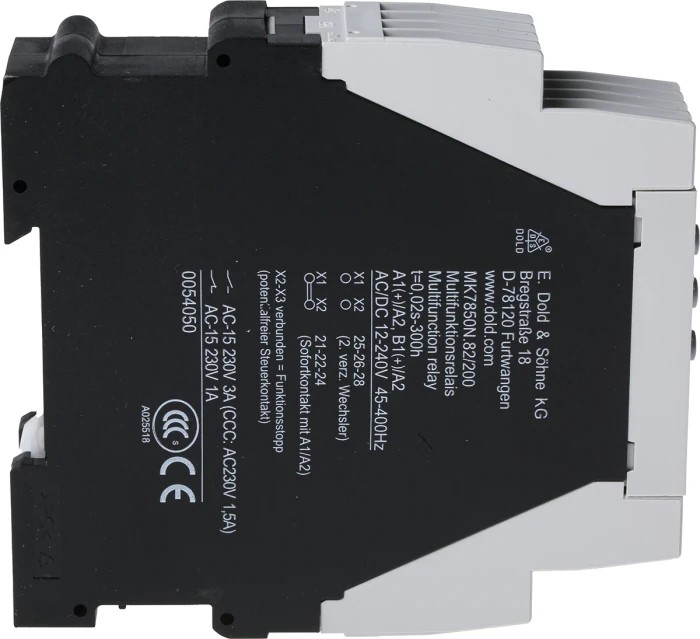

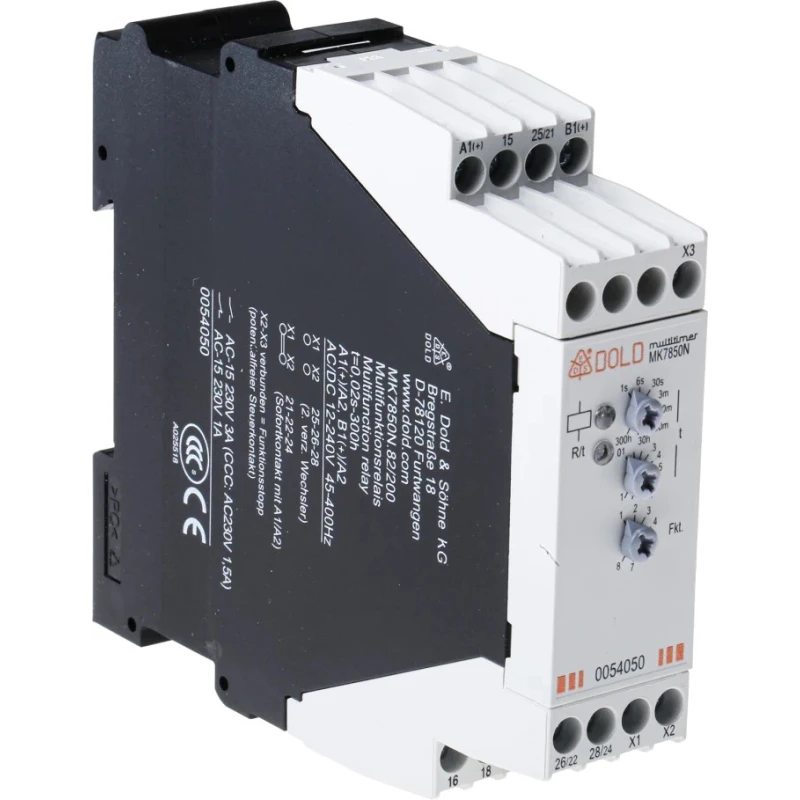

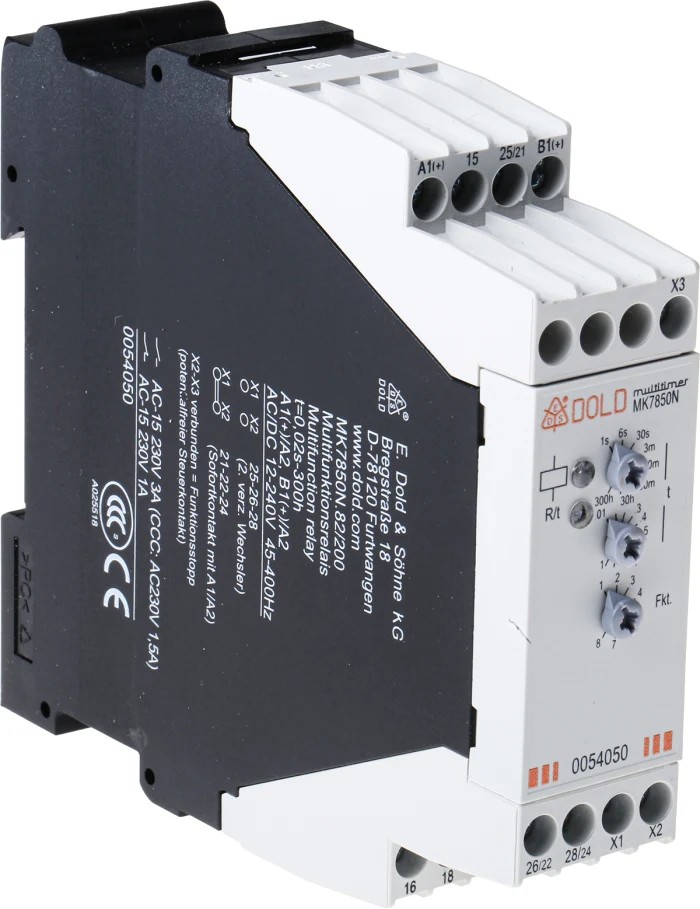

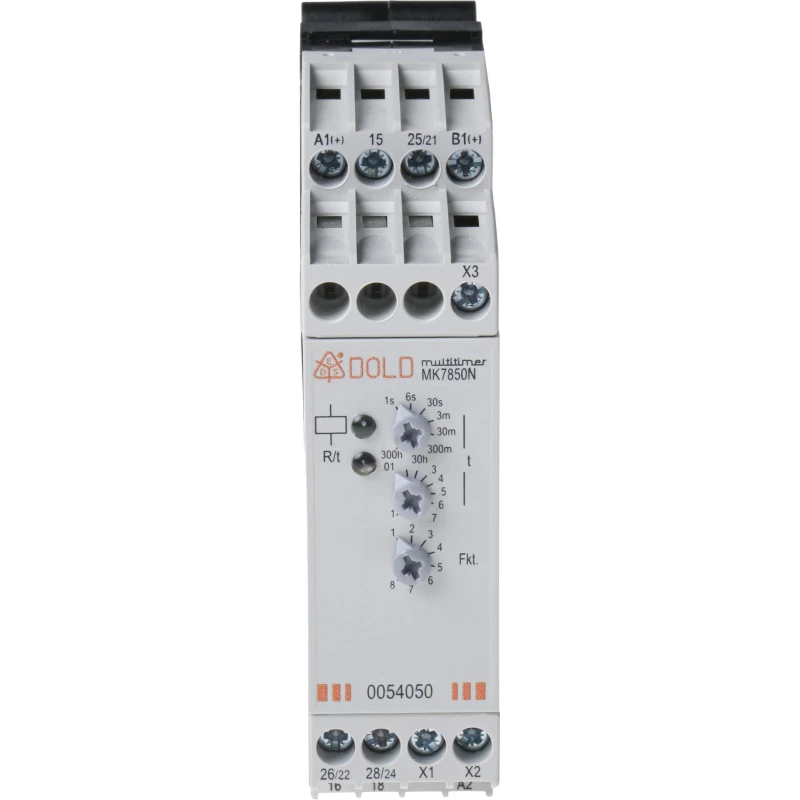

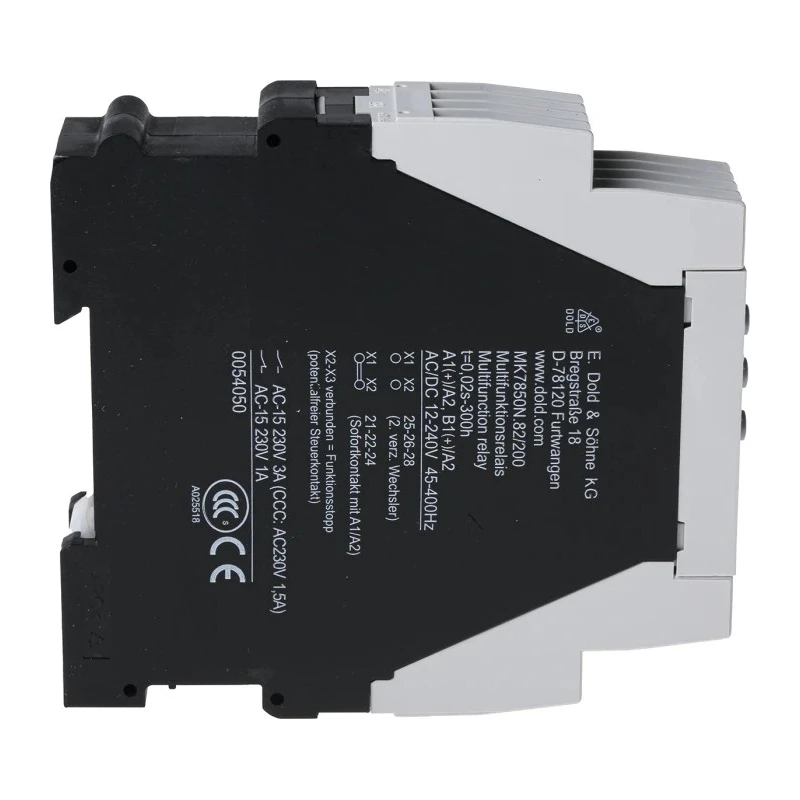

Dold MK 7850N Series DIN Rail Timer Relay 2-Contact DPDT 12 to 240 V AC/DC MK7850N.82/200 AC/DC12-240V 0.02S-300H

Dold MK7850N.82/200 AC/DC12-240V 0.02S-300H timer relay is a high-quality multifunction DIN rail timer relay designed for industrial, manufacturing, automation, and process control applications. It operates with a wide supply voltage range from 12 to 240 V AC or DC, allowing flexible deployment in different electrical systems.

This model features two changeover contacts (DPDT) providing reliable switching capabilities up to 250 V AC. The multifunction timer supports eight time ranges, selectable via a rotary switch, from milliseconds to hours, enabling precise timing control in various automation scenarios. Timing adjustments are facilitated by a Swedish pipe mechanism for ease of use.

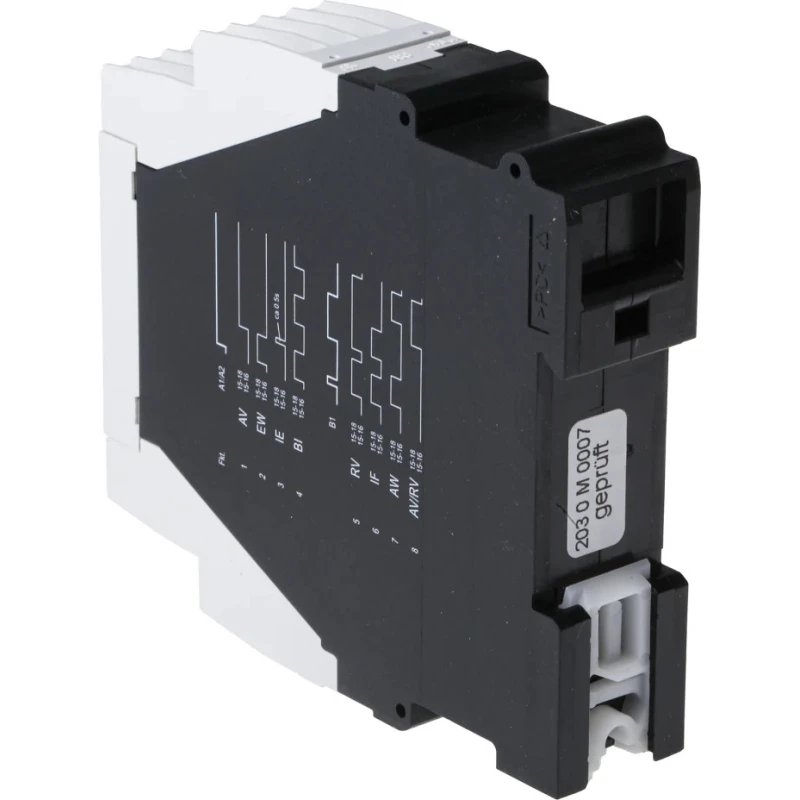

The relay includes multiple timing functions such as response delay, switch-on/off wipe functions, pulse transducer, fallback delay, flashing function, and combination functions with two separately adjustable times. For enhanced flexibility, a remote potentiometer accessory can be connected via additional terminals (Z1, Z2) sold separately.

Constructed with IP20/IP40 protection ratings and designed to operate in temperatures from -20°C to 60°C, the relay is robust enough for demanding industrial conditions. The compact size of 97 mm height, 90 mm length, and 22.5 mm width facilitates easy integration into control panels or enclosures.

The product complies with various international standards including DIN EN 50155 for railway applications, IEC/EN 60068-1 for environmental testing, UL safety standards, and others, ensuring high reliability and safety. The screw terminal connection type ensures secure wiring connections for stable operation.

Dold MK 7850N timer relay is ideal for use in automation control, electrical panels, manufacturing lines, industrial machinery, and other commercial applications requiring dependable timing control solutions.

Choose this timer relay to benefit from multifunction time settings, broad voltage compatibility, and international standards compliance, delivering quality and performance in demanding industrial environments.

Supports supply voltage range from 12 to 240 V AC/DC for versatile application. Features dual time ranges adjustable from 0.06 to 30 seconds, 0.03 to 300 minutes, and 3 to 300 hours. Includes 2 changeover contacts configured as DPDT with switching voltage up to 250 V AC.

Equipped with multifunction time settings selectable via rotary switch for precise control. Constructed with IP20 and IP40 ratings providing protection suitable for industrial environments. Rated for operating temperature between -20°C and 60°C ensuring reliability in varied conditions.

User-friendly timing adjustment via Swedish pipe and screw terminals for secure connection. Complies with multiple international standards including DIN EN 50155, IEC/EN 60068-1, UL, and CCC certifications. Compact dimensions of 97 mm height, 90 mm length, and 22.5 mm width for space-efficient installation.
