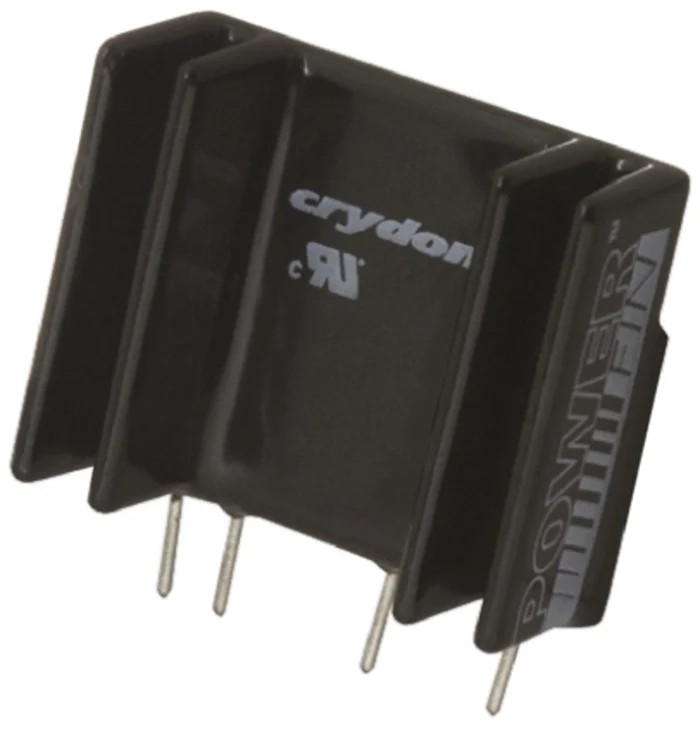

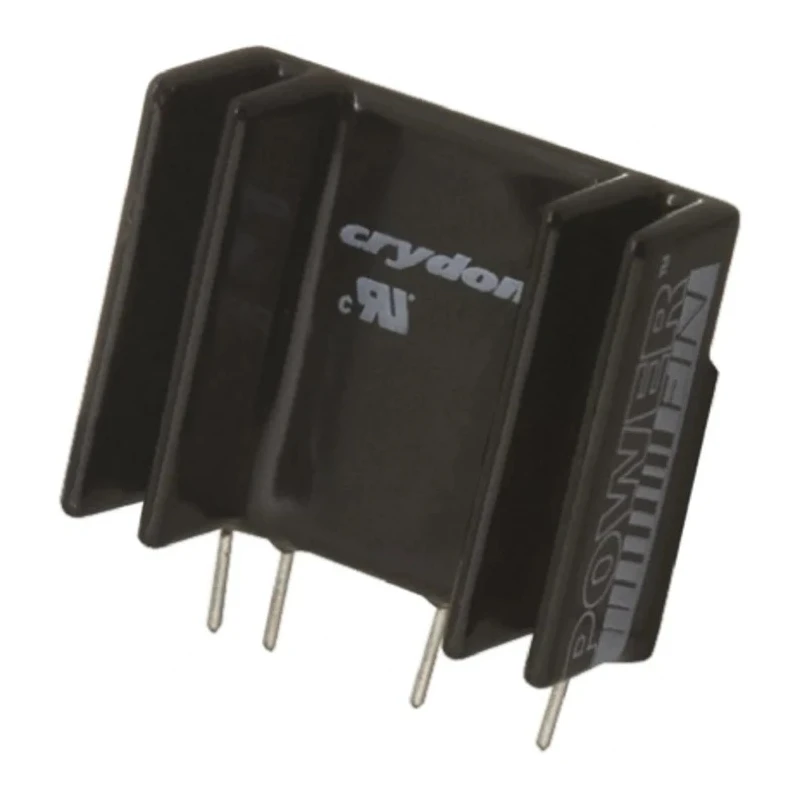

Crydom PF Series Solid State Relay 25 A Load PCB Mount 280 Vrms Load 32V Control PFE240D25
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 34.3mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Model | PFE240D25 |
| IP Rating | IP20 |
| Width | 22.8mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | PF |
| Maximum Operating Temperature | +80°C |
| Package Type | SIP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | UR, RoHS, CSA |
| Minimum Load Voltage | 12V |
| Minimum Control Voltage | 18V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
| Surge current peak | 250A |
| Input-Output capacitance | 8pF |
Key Features
- This relay provides ultra-high steady state current rating with low off-state leakage current.
- Equipped with SCR output type for reliable switching performance.
- Operates within a temperature range from -40°C to +80°C ensuring durability.
- Designed for PCB mounting with screw terminal type and IP20 rating for protection.
- Features zero-cross switching function to minimize electrical noise during switching.
- Compact SIP package with dimensions 34.3 mm height, 22.8 mm width, and 43.1 mm length.
- Supports surge current peak up to 250A for transient events tolerance.
- Complies with international standards including UR, RoHS, and CSA for quality and safety.
Product Description
Crydom PFE240D25 is a high-performance Solid State Relay designed for PCB mounting applications requiring a maximum load current of 25 A and load voltage up to 280 Vrms. The relay supports a control voltage range of 18 V minimum to 32 V maximum, operating efficiently within a temperature range of -40°C to +80°C. Its robust SCR output and zero-cross switching function provide reliable and noise-minimized switching appropriate for various industrial, automation, and electrical control applications.
Featuring a compact SIP package form with dimensions 34.3 mm (H) x 22.8 mm (W) x 43.1 mm (L), this relay offers ease of installation using a screw terminal type on PCB mounts. The device is rated with an IP20 ingress protection rating, suitable for protected indoor environments. Its design includes low off-state leakage current of 0.1 mA and an input-output capacitance of 8 pF, contributing to efficient performance.
This relay series supports a peak surge current of 250 A, ensuring resilience against transient electrical surges common in industrial and automation environments. Certified for compliance with UL, VDE, RoHS, and CSA standards, it meets stringent quality and safety requirements.
Ideal for use in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment, the Crydom PF Series solid-state relay provides reliable switching capabilities without mechanical wear, enhancing system longevity and reducing maintenance costs.
Package contains one Crydom PF Series Solid State Relay PFE240D25 optimized for 25 A, 280 Vrms load, and 32 V control suitable for PCB mounting. This relay provides ultra-high steady state current rating with low off-state leakage current.
Equipped with SCR output type for reliable switching performance. Operates within a temperature range from -40°C to +80°C ensuring durability. Designed for PCB mounting with screw terminal type and IP20 rating for protection.
Features zero-cross switching function to minimize electrical noise during switching. Compact SIP package with dimensions 34.3 mm height, 22.8 mm width, and 43.1 mm length. Supports surge current peak up to 250A for transient events tolerance.
Complies with international standards including UR, RoHS, and CSA for quality and safety. Explore similar Solid State Relays and electrical automation components on EnvMart for versatile industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 A.
The control voltage range for this relay is from 18 V minimum to 32 V maximum.
It operates efficiently within a temperature range of -40°C to +80°C.
This relay uses an SCR output type for reliable switching performance.
The relay has dimensions of 34.3 mm in height, 22.8 mm in width, and 43.1 mm in length.
The relay has an IP20 ingress protection rating, suitable for protected indoor environments.
It supports a surge current peak of up to 250 A for transient events tolerance.
This model is designed for PCB mounting with a screw terminal type.
It complies with international standards including UR, RoHS, and CSA for quality and safety.
The off-state leakage current is rated at 0.1 mA.
The input-output capacitance is 8 pF.
The package type of this relay is SIP (Single In-line Package).
