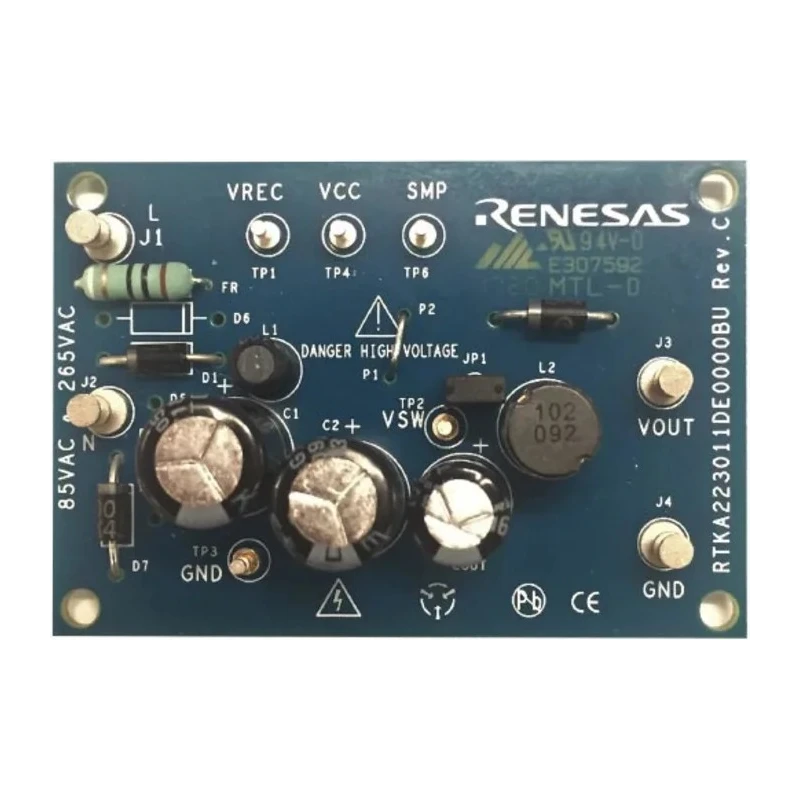

Renesas Electronics RAA223011 Evaluation Board Buck Converter for RAA2230114GP3NA0 RTKA223011

Renesas Electronics RTKA223011DE0000BU Evaluation Board Buck Converter is a specialized development tool designed to demonstrate the high voltage buck converter functionality using the RAA2230114GP3NA0 IC. This evaluation board enables low-cost, high-performance non-isolated AC/DC power conversion from a universal AC input voltage range of 85VAC to 265VAC to a regulated 12V DC output capable of supplying up to 300mA current.

The board features an efficient power stage with efficiency reaching approximately 73% at full load and improving to 80% at 50% load, helping in reducing power losses and heat generation. It supports operating temperatures ranging from -45°C up to 65°C, making it suitable for a wide range of industrial, laboratory, and embedded applications.

The compact evaluation board is optimized for developers testing the RAA2230114GP3NA0 IC performance in AC/DC power conversion scenarios, making it ideal for power supply design in consumer electronics, industrial automation, and embedded systems. The low standby power of less than 10mW ensures compliance with energy-saving regulations and extends overall system efficiency.

This evaluation board demonstrates non-isolated AC/DC conversion from 85VAC to 265VAC input. Provides a 12V output with maximum current of 300mA. High efficiency with 73% at full load and 80% at half load. Wide operating temperature range from -45°C to 65°C.

Low standby power consumption below 10mW.

This product is suitable for industrial power management, research and development in electronics, and for designers working with Renesas power management ICs. Explore the Power Management ICs and Evaluation Boards category for more solutions from Renesas and other leading manufacturers at EnvMart.
