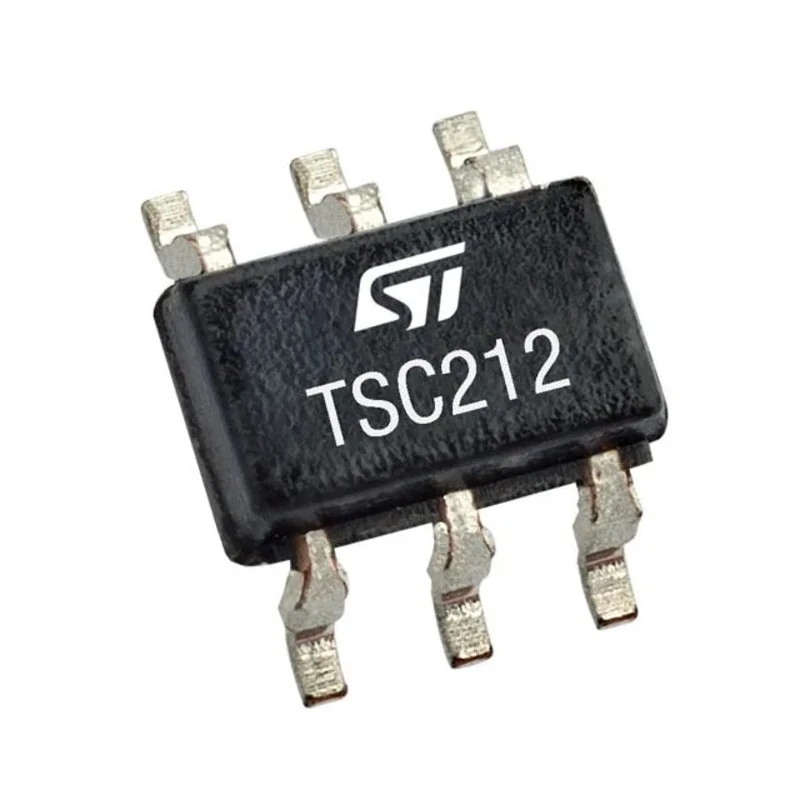

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC212IYCT

STMicroelectronics TSC212IYCT is a single-channel current sensing amplifier designed to precisely measure current through a shunt resistor over a wide common mode voltage range of -0.3 V to +26 V. Operating from a single power supply ranging from 2.7 V to 26 V, it ensures versatility in electronic measurement designs.

This zero-drift amplifier offers high precision with a maximum gain error of ±1%, minimal offset drift of 0.1 μV/°C, and gain drift of 20 ppm/°C. The device maintains extreme accuracy and stability under varying environmental conditions.

The low quiescent current of 5 mA and compact SC-70 6-pin package (1.1 mm height, 2.2 mm length) make it ideal for space-constrained industrial, automotive, telecommunications, and instrumentation applications. It complies with the automotive industry standard AEC-Q100, ensuring ruggedness for harsh operating environments.

This current sensing amplifier series is widely used in telecom equipment, industrial controls, automotive current monitoring, and power management systems where precise current measurement and high immunity to noise and common mode voltage are critical.

Wide common mode voltage range supports flexible design use cases. Low drift and zero-drift architecture for high accuracy. Compact surface-mount package enhances PCB space utilization. Low supply current reduces power consumption.

Automotive standard AEC-Q100 certification for reliable operation. Suitable for industrial, automotive, telecom, and measurement systems. Designed for easy integration and stable current sensing performance.
