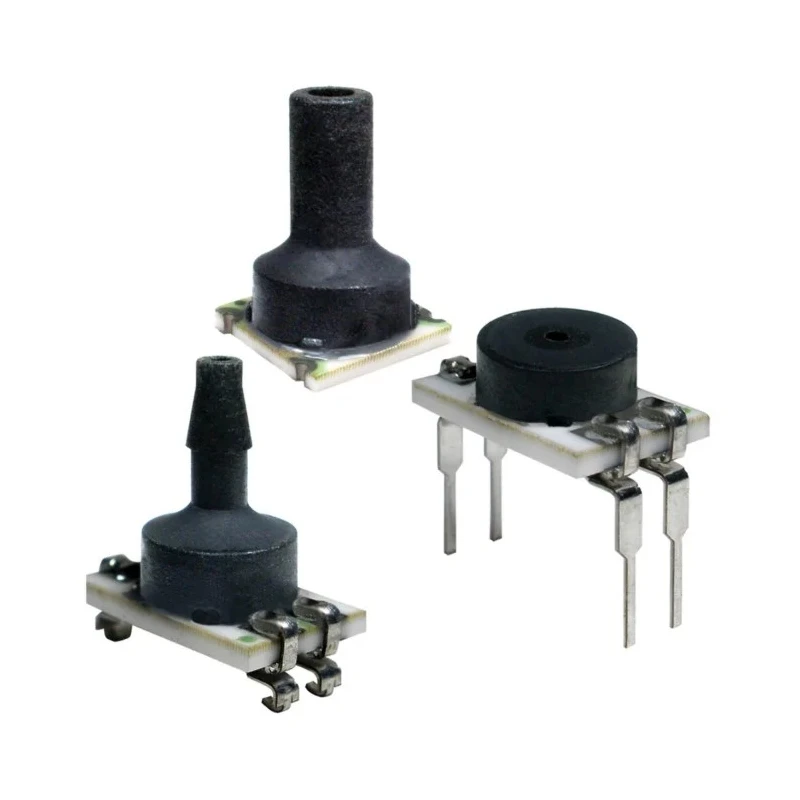

Honeywell Piezoresistive Pressure Sensor Surface Mount SMT Accuracy ±0.25% Maximum Pressure 103 kPa NBPLLNN015PAUNV
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 103 kPa |
| Height | 10.94mm |
| Length | 7mm |
| Model | NBPLLNN015PAUNV |
| Sensor Type | Piezoresistive Pressure Sensor |
| Mount Type | Surface |
| Series | NBP |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Axial Barbless |
| Package Type | SMT |
| Minimum Operating Temperature | -4°C |
| Typical Sensitivity | 15mV/kPa |
| Pin Count | 0 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 206kPa |
Key Features
- This sensor provides an accuracy of ±0.25% ensuring precise pressure measurements.
- Features a maximum operating pressure of 103 kPa and maximum overload pressure of 206 kPa.
- Designed as a surface mount device with a compact size of 7 mm length and 10.94 mm height.
- Operates over a supply voltage range from 1.8 V to 12 V for versatile electronic integration.
- Capable of functioning at temperatures from -4°C up to 125°C, suitable for varied environments.
- Single axial barbless port type offers reliable pressure sensing without disturbance.
- Uncompensated and unamplified piezoresistive silicon sensor with ratiometric output.
- Ideal for food grade, medical, and industrial applications requiring stable and accurate pressure sensing.
Product Description
Honeywell NBPLLNN015PAUNV is a high-performance piezoresistive pressure sensor designed for surface mount technology (SMT) applications. This sensor delivers accurate pressure measurement with ±0.25% accuracy over a maximum operating pressure of 103 kPa and can handle overloads up to 206 kPa.
Compact in size with dimensions of 7 mm in length and 10.94 mm in height, it fits well in tight PCB assemblies and rapid reflow soldering processes stabilize the device for immediate calibration.
Operating voltage ranges from 1.8 V minimum to a maximum of 12 V, facilitating integration with a wide range of electronic systems. The device functions reliably from low temperatures of -4°C to high temperatures of 125°C, making it suitable for challenging industrial, medical, and food grade environments.
Featuring a single axial barbless port, this uncompensated and unamplified piezoresistive sensor provides infinite resolution and ratiometric output essential for precise pressure sensing tasks.
This sensor is basic board mount type for easy incorporation into various applications requiring sensitive pressure measurement. Due to its design, it is suitable for potential medical and industrial uses where food grade compatibility may be required.
Provides stability and allows calibration immediately after soldering due to rapid stabilization features. Honeywell pressure sensors like the NBPLLNN015PAUNV are trusted components for advanced industrial, laboratory, HVAC, manufacturing, and water treatment applications.
Explore a wide range of Pressure Sensor ICs on EnvMart to find the perfect match for your engineering and instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 103 kPa, with a maximum overload pressure of 206 kPa.
It provides an accuracy of ±0.25%, ensuring precise pressure measurements.
This model has a length of 7 mm and a height of 10.94 mm, making it compact for tight PCB assemblies.
The sensor operates over a supply voltage range from 1.8 V to 12 V, allowing for versatile electronic integration.
It can function reliably in temperatures ranging from -4°C to 125°C.
It provides a ratiometric output, which is essential for precise pressure sensing tasks.
It features a single axial barbless port type, which allows for reliable pressure sensing without disturbance.
Yes, it is designed for applications requiring food grade compatibility, as well as medical and industrial uses.
The typical sensitivity of this model is 15 mV/kPa.
This sensor is designed for surface mount technology (SMT), making it suitable for rapid reflow soldering processes.
The country of origin for this sensor is India.
This model has a pin count of 0, indicating it is designed for direct surface mounting without pins.
