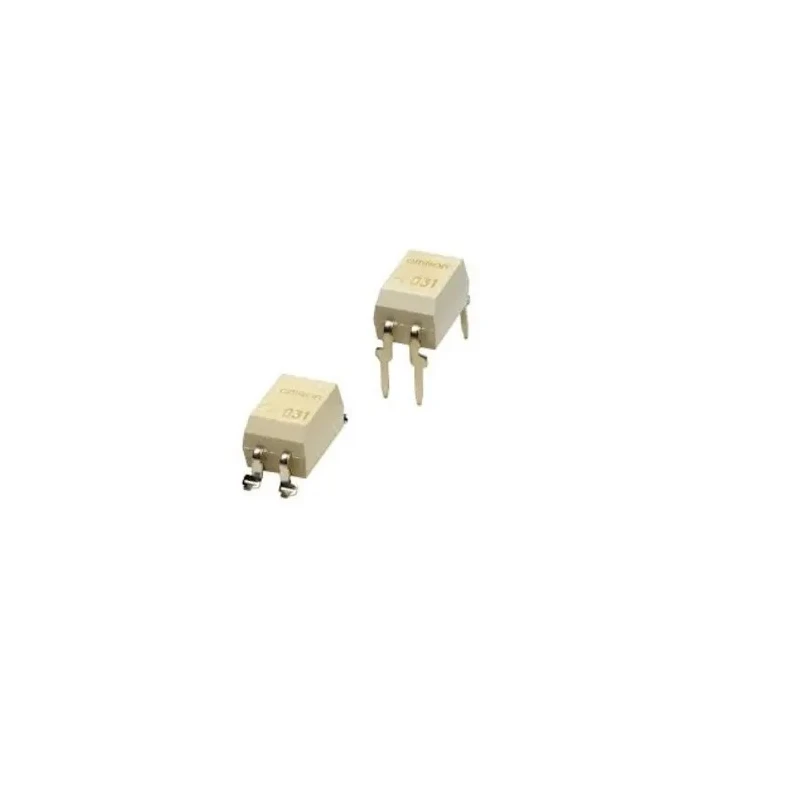

Omron Solid State Relay G3VM Series Surface Mount 2 A Load 100 V Load 1.64 V Control
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 3.65mm |
| Length | 6.4mm |
| Model | G3VM |
| Width | 4.58mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | G3VM |
| Maximum Operating Temperature | 110°C |
| Contact Configuration | SPST |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 2A |
| Standards/Approvals | UL, RoHS |
| Maximum Load Voltage | 100V |
| Minimum Load Voltage | 0V |
| Maximum Control Voltage | 1.64V |
| Off State Leakage Current | 1μA |
Key Features
- This relay features MOSFET output type ensuring low ON resistance and high switching capacity.
- It supports AC/DC switching with SPST contact configuration for versatile applications.
- Designed for ambient operating temperature range from -40°C to 110°C, suitable for industrial use.
- Off state leakage current is minimal at 1 μA with capacitance of 0.8 pF for efficient operation.
- Complies with UL and RoHS standards, ensuring safety and environmental compliance.
- Ideal for semiconductor test equipment, communication gear, and data loggers.
Product Description
The Omron G3VM-101DR1 is a Solid State Relay from the G3VM Series, designed for surface mount applications with a maximum load current rating of 2 A and maximum load voltage of 100 V. Featuring a MOSFET output type, this relay provides low ON resistance and high switching capacity comparable to mechanical relays.
It operates effectively within a wide ambient temperature range of -40°C to 110°C, making it suitable for demanding industrial environments including semiconductor test equipment, communication devices, test & measurement instruments, and data logging systems.
The relay comes in a compact DIP 4-pin package with dimensions of 6.4 mm length, 4.58 mm width, and 3.65 mm height, optimized for PCB surface mounting. With a SPST contact configuration and AC/DC switching functionality, it provides reliable and versatile switching performance.
The device features a minimal off-state leakage current of 1 μA and a capacitance of 0.8 pF, contributing to energy-efficient operation. It meets UL and RoHS standards, ensuring compliance with safety regulations and environmental directives.
Manufactured in Japan, the G3VM-101DR1 solid state relay is a dependable choice for industrial automation, electrical control systems, laboratory equipment, and communication infrastructure.
This relay features MOSFET output type ensuring low ON resistance and high switching capacity. It supports AC/DC switching with SPST contact configuration for versatile applications. Designed for ambient operating temperature range from -40°C to 110°C, suitable for industrial use.
Dimensions include 6.4 mm length, 4.58 mm width, and 3.65 mm height for compact PCB mounting. Off state leakage current is minimal at 1 μA with capacitance of 0.8 pF for efficient operation. Complies with UL and RoHS standards, ensuring safety and environmental compliance.
Ideal for semiconductor test equipment, communication gear, and data loggers. Explore more Omron Solid State Relays and related electronics products on EnvMart for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 2 A.
It supports a maximum load voltage of 100 V.
The relay operates effectively within an ambient temperature range of -40°C to 110°C.
This model features a MOSFET output type, which ensures low ON resistance and high switching capacity.
The G3VM-101DR1 has a SPST contact configuration, allowing for versatile applications.
The dimensions are 6.4 mm in length, 4.58 mm in width, and 3.65 mm in height.
The off-state leakage current is minimal at 1 μA.
This relay has a capacitance of 0.8 pF.
It complies with UL and RoHS standards, ensuring safety and environmental compliance.
This model is designed for surface mounting on PCBs.
It supports AC/DC switching functionality, making it versatile for various applications.
The maximum control voltage is 1.64 V.
