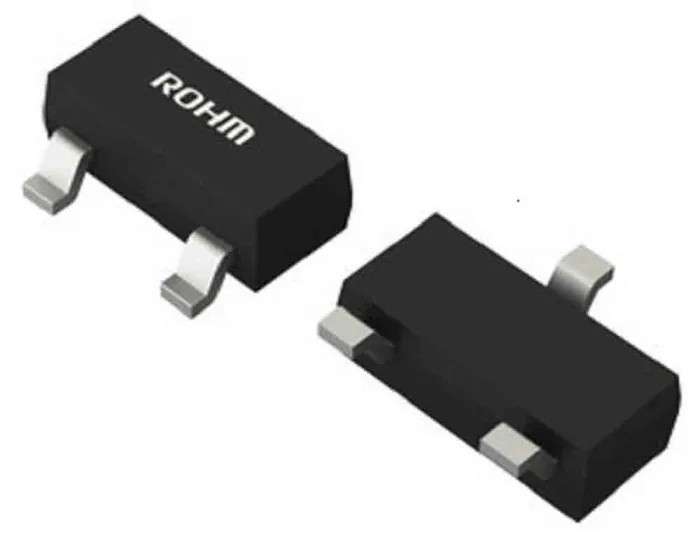

ROHM 30 V 200 mA Schottky Diode Surface Mount Type SOT-23 Package BAT54HYFHT116
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | BAT54HYFHT116 |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | BAT54HYFH |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 0.8V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Designed for low forward voltage and high reliability in automotive applications.
- Compact SOT-23 package allows for surface mounting on PCBs.
- Maximum continuous forward current of 200 mA suitable for small current rectification.
- Peak reverse repetitive voltage of 30 V supports moderate voltage applications.
- Fast peak reverse recovery time of 50 ns enhances switching efficiency.
- Automotive grade with compliance to AEC-Q101 standard ensures high quality.
- 3 pins configuration simplifies circuit integration.
- Low maximum forward voltage of 0.8 V reduces power loss.
Product Description
ROHM BAT54HYFHT116 Schottky Diode is a surface mount discrete semiconductor designed for reliable and efficient small current rectification. The diode features a compact 3-pin SOT-23 package with dimensions: length 3.1 mm, width 1.5 mm, and height 1.15 mm, allowing for easy integration into compact electronic assemblies.
It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V. The diode exhibits a low maximum forward voltage of 0.8 V which helps reduce conduction losses during operation, making it suitable for power-sensitive automotive and industrial electronic circuits.
With a peak non-repetitive forward surge current rating of 600 mA and a fast peak reverse recovery time of 50 ns, it is optimized for applications requiring rapid switching and surge handling capabilities. The device also complies with the automotive standard AEC-Q101, ensuring suitability for automotive power management and electronic control units.
This Schottky Diode’s low peak reverse current of 2 microamperes reflects excellent leakage control, enhancing circuit efficiency and stability. The single-diode configuration eliminates complexity while providing reliable rectification in power supplies, switching regulators, and signal demodulation circuits.
Low forward voltage and high reliability improve circuit efficiency and lifespan. Compact SOT-23 surface mount package suits densely packed PCB designs. Automotive grade compliant to AEC-Q101 standard ensures ruggedness.
Fast switching speeds with 50 ns recovery time for high-frequency applications. Handles transient surge currents up to 600 mA to protect sensitive circuits. Minimal leakage current reduces power wastage. Ideal for automotive, industrial, and power supply applications.
Precise diode characteristics enable stable rectification performance. ROHM is a reputable brand known for quality semiconductor components used in industrial, automotive, and consumer electronics. Explore our range of semiconductor components and electronics parts at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the BAT54HYFHT116 Schottky diode is 200 mA.
This model has a peak reverse repetitive voltage rating of 30 V, making it suitable for moderate voltage applications.
The maximum forward voltage drop for this diode is 0.8 V, which helps reduce power loss during operation.
The BAT54HYFHT116 is housed in a compact SOT-23 package with dimensions of 3.1 mm in length, 1.5 mm in width, and 1.15 mm in height.
This Schottky diode has a peak non-repetitive forward surge current rating of 600 mA.
The peak reverse recovery time for the BAT54HYFHT116 is 50 ns, which enhances its switching efficiency.
Yes, this diode complies with the automotive standard AEC-Q101, ensuring its suitability for automotive applications.
The BAT54HYFHT116 features a single-diode configuration, which simplifies circuit integration.
The peak reverse current for this model is rated at 2 μA, reflecting excellent leakage control.
This model uses surface mounting, suitable for compact electronic assemblies.
This Schottky diode is suitable for automotive, industrial, and power supply applications due to its low forward voltage and high reliability.
The BAT54HYFHT116 has a 3-pin configuration, facilitating easy integration into circuits.
