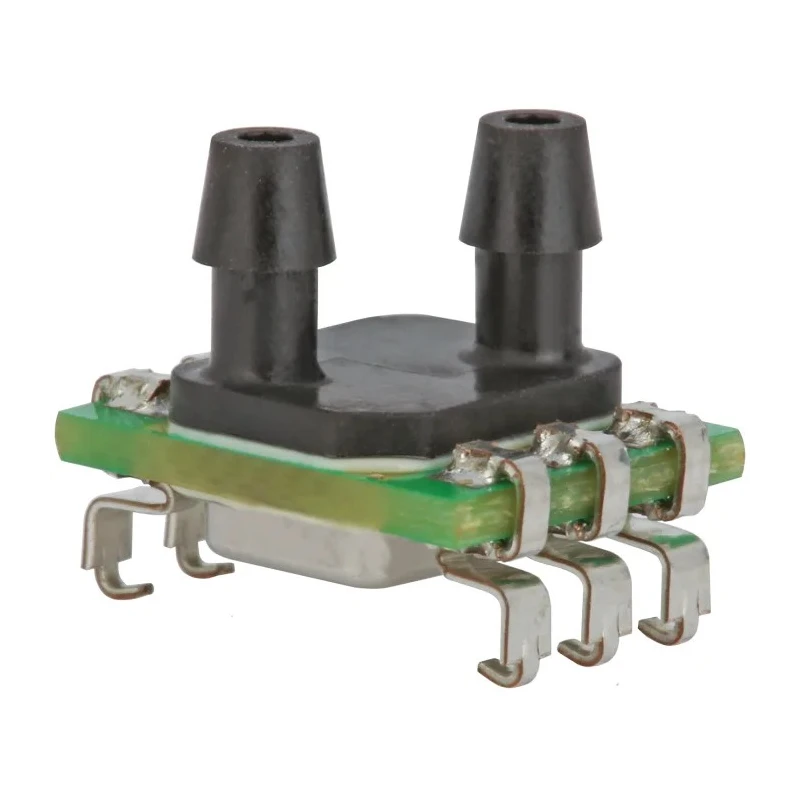

Honeywell Technologies Differential Pressure Sensor Surface Mount SMT 6 Pin ABP2MDAN004ND2B3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 100 kPa |
| Height | 10.59mm |
| Length | 8.2mm |
| Model | ABP2MDAN004ND2B3XX |
| Sensor Type | Gauge Pressure Sensor |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 25000kPa |
Key Features
- Designed for surface mount with a 6-pin SMT package.
- Supports operating temperatures from -40°C to 110°C.
- Maximum operating pressure of 100 kPa with a maximum overload pressure of 25000 kPa.
- Features dual axial barbed ports for pressure input.
- Stable long-term performance meeting RoHS compliance.
- Suitable for electronic, industrial, and instrumentation applications.
Product Description
Honeywell Technologies ABP2MDAN004ND2B3XX is a differential pressure sensor featuring a compact 6-pin surface mount SMT package, ideal for precise gauge pressure measurements in various industrial and electronic applications. It operates with a supply voltage range of 1.8V to 3.6V and supports pressure measurement up to 100 kPa, with an overload pressure tolerance of 25000 kPa. The sensor operates reliably across a wide temperature spectrum, from -40°C to 110°C, ensuring stable readings in demanding environments.
This sensor offers ±0.25% full-scale span accuracy using BFSL calibration and long-term stability as low as ±0.2% FSS, making it suitable for precision instrumentation and control systems. The dual axial barbed port design facilitates easy connection for differential pressure measurements. Manufactured to ISO 9001 quality standards and RoHS compliant, it meets stringent industry requirements.
The ABP2 series integrates piezoresistive silicon technology providing digital output suitable for sensitive electronic components and system designs requiring compact, reliable pressure sensing solutions. Its dimensions of 8.2 mm length, 7.2 mm width, and 10.59 mm height enable flexible PCB layout and integration.
Applications include HVAC systems, medical devices, industrial automation, fluid control monitoring, and environmental sensing within industrial and laboratory environments. Designed for surface mounting with 6-pin SMT package for easy PCB integration.
Wide operating temperature range from -40°C to 110°C for reliable performance. High maximum overload pressure of 25000 kPa ensuring durability and reliability. Compatible with various liquid media for versatile sensing needs.
Accurate pressure measurement with ±0.25% FSS accuracy and long-term stability. Dual axial barbed ports facilitate efficient differential pressure input. Compact size allows integration into tight spaces in electronic equipment.
RoHS compliant and manufactured to ISO 9001 quality standards. Explore the full range of Pressure Sensor ICs at EnvMart for industrial and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 100 kPa, with a maximum overload pressure of 25000 kPa.
It operates reliably across a temperature range from -40°C to 110°C.
This model has an accuracy rating of ±0.25% full-scale span (FSS).
The sensor has dimensions of 8.2 mm in length, 7.2 mm in width, and 10.59 mm in height.
It features dual axial barbed ports for pressure input, facilitating easy connection.
The supply voltage range for this model is between 1.8V and 3.6V.
Yes, it is RoHS compliant and manufactured to ISO 9001 quality standards.
It is suitable for applications in HVAC systems, medical devices, industrial automation, fluid control monitoring, and environmental sensing.
This model is designed for surface mounting with a 6-pin SMT package for easy PCB integration.
The minimum operating pressure for this model is 600 Pa.
It integrates piezoresistive silicon technology, providing digital output suitable for sensitive electronic components.
The long-term stability is as low as ±0.2% full-scale span (FSS).
