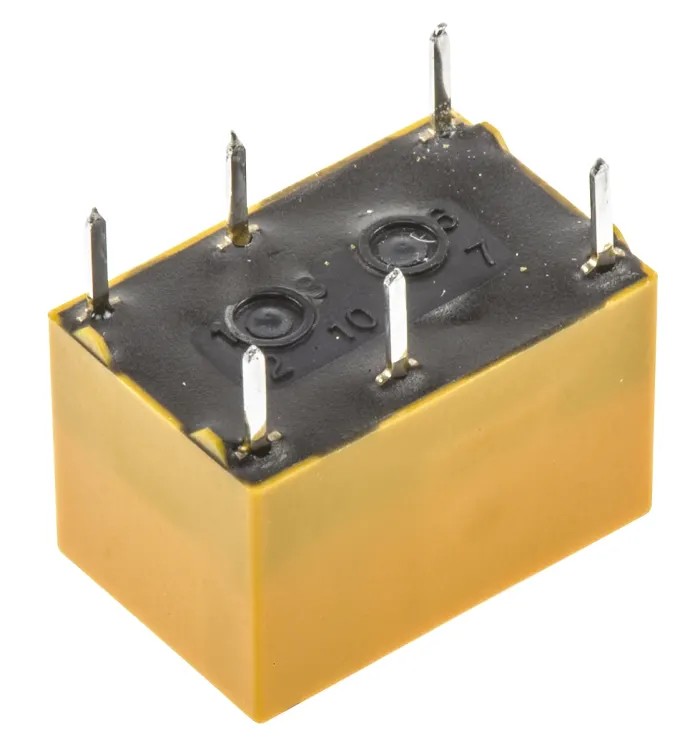

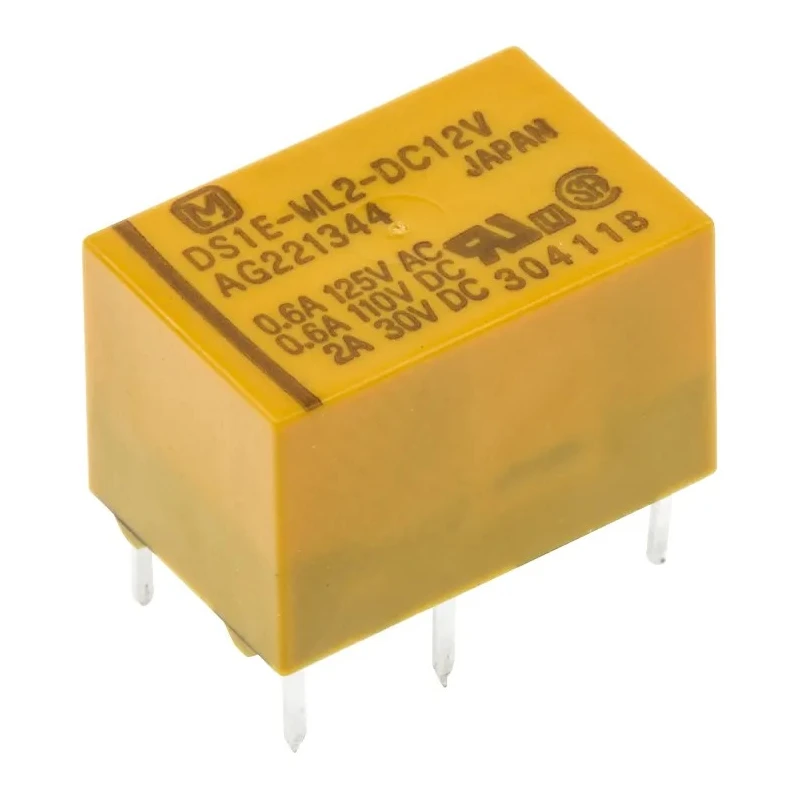

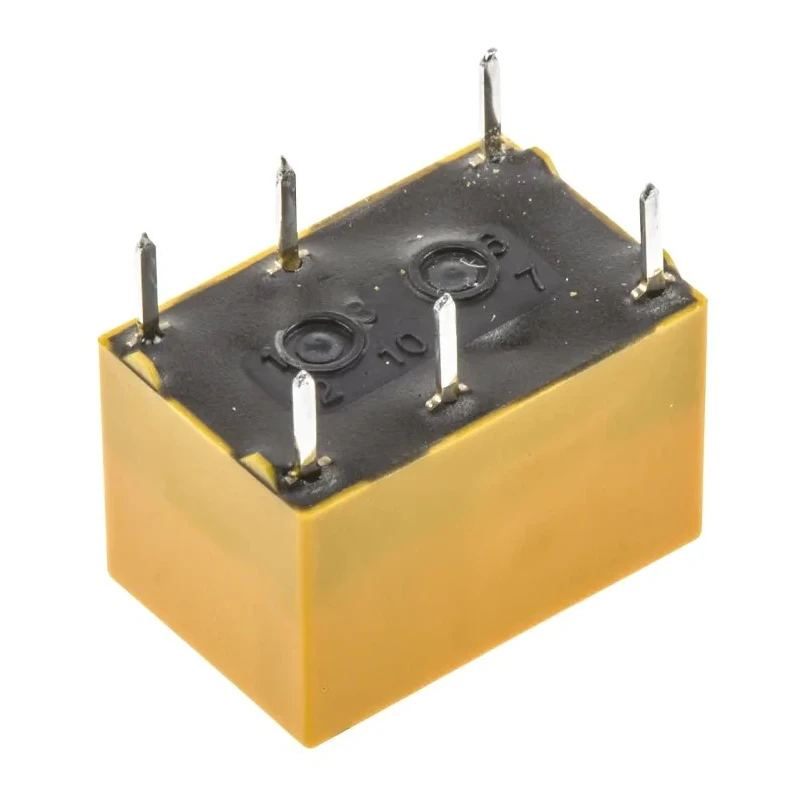

Panasonic PCB Signal Relay, 12V DC Coil, 2A Switching Current, SPDT Contact Configuration DS1E-ML2-DC12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 15mm |
| Model | DS1E-ML2-DC12V |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS1E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 360mW |
Key Features
- Operates with a 12V DC coil and consumes 360mW power.
- Supports switching current up to 2A with maximum AC voltage 250V and DC voltage 220V.
- Compact size with dimensions 15mm length, 9.9mm width, and 9.9mm height.
- Features gold plated contacts for enhanced conductivity and reduced corrosion.
- PCB mount type with through-hole terminals for reliable soldering.
- Coil resistance of 400 ohms ensures stable operation.
- Suitable for operating temperature range of -40°C to 70°C.
- Complies with RoHS standards and has UL and CSA approvals.
Product Description
Panasonic DS1E-ML2-DC12V PCB Signal Relay is a high-quality bistable relay from the DS1E series, featuring two coils and suitable for telecommunications and control applications requiring stable switching.
Its 12V DC coil voltage with low power consumption of 360mW ensures energy-efficient operation. The single pole double throw (SPDT) contact configuration allows versatile switching capability supporting both AC and DC voltages up to 250V AC and 220V DC respectively, handling currents up to 2A.
This relay is designed for PCB mounting with through-hole terminals to guarantee secure and lasting connection. The gold plated contacts provide excellent electrical conductivity and resistance to corrosion, ensuring long relay life and reliable signal switching.
Measuring 15mm in length and 9.9mm in width and height, its compact form factor suits dense PCB assembly layouts. The coil resistance rating of 400 ohms balances coil efficiency and operation stability.
Rated for operation in harsh conditions, its temperature tolerance spans from -40°C to 70°C, making it suitable for industrial, telecommunications, and automation environments. The product complies with RoHS directives emphasizing environmental compliance and carries UL and CSA certifications validating quality and safety standards.
Operates with 12V DC coil at 360mW power consumption. Single pole double throw (SPDT) contact configuration suitable for switching AC and DC loads. Compact PCB mount relay with through-hole terminals. Gold plated contact material for excellent conductivity and corrosion resistance.
Supports switching currents up to 2A at AC 250V and DC 220V voltages. Operating temperature range from -40°C to 70°C for reliable performance. Complies with RoHS, UL, and CSA safety standards.
This Panasonic DS1E-ML2-DC12V is ideal for precise electronic control in industrial automation, telecommunication systems, and other demanding electrical applications requiring robust and reliable Signal Relays.
Explore more quality relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 2A.
This model measures 15mm in length, 9.9mm in width, and 9.9mm in height.
It features a single pole double throw (SPDT) contact configuration.
This relay is designed for PCB mounting with through-hole terminals.
The coil consumes 360mW of power during operation.
It operates within a temperature range of -40°C to 70°C.
It can switch up to 250V AC and 220V DC.
The contacts are made of gold plated material for enhanced conductivity and corrosion resistance.
The coil resistance is rated at 400 ohms.
Yes, it complies with RoHS standards and has UL and CSA approvals.
It is suitable for telecommunications and control applications requiring stable switching.
