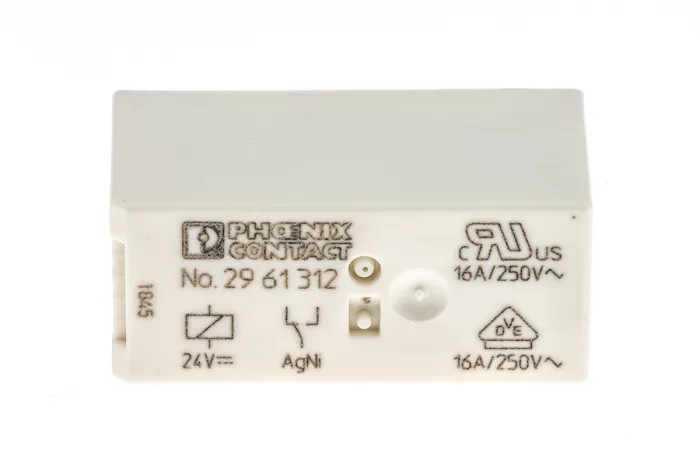

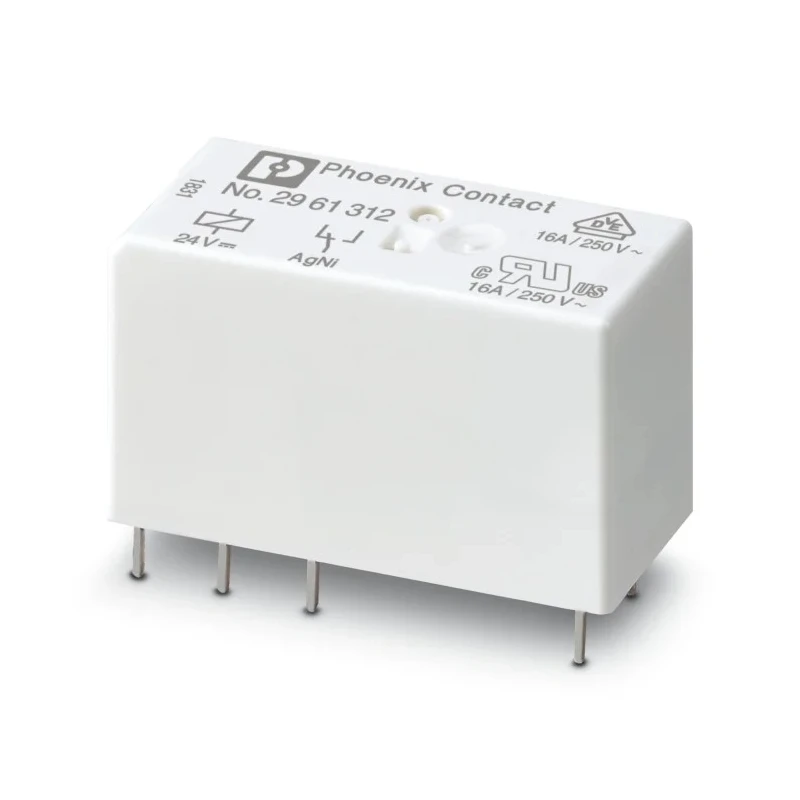

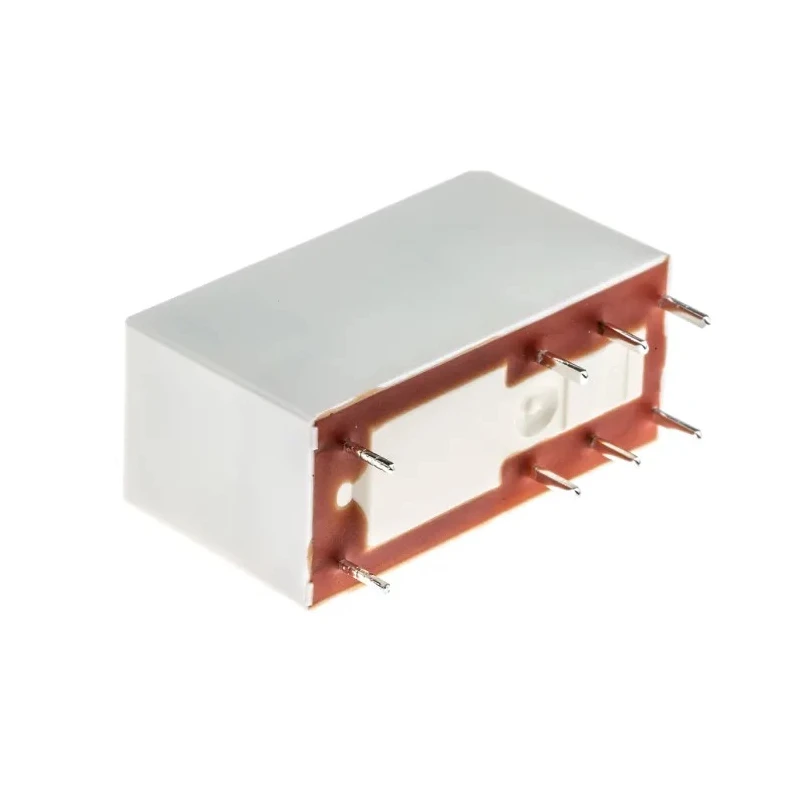

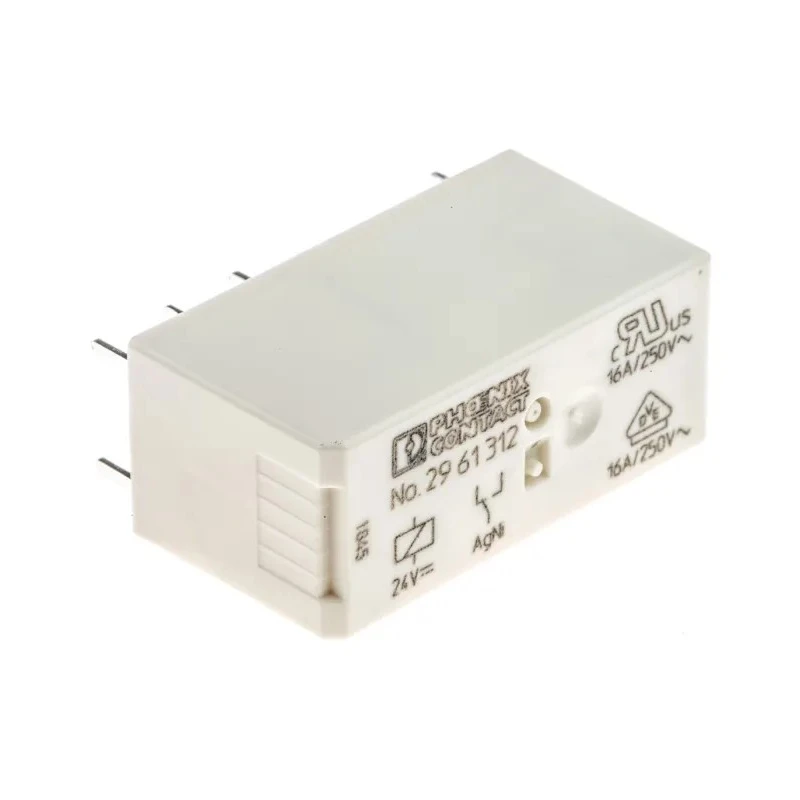

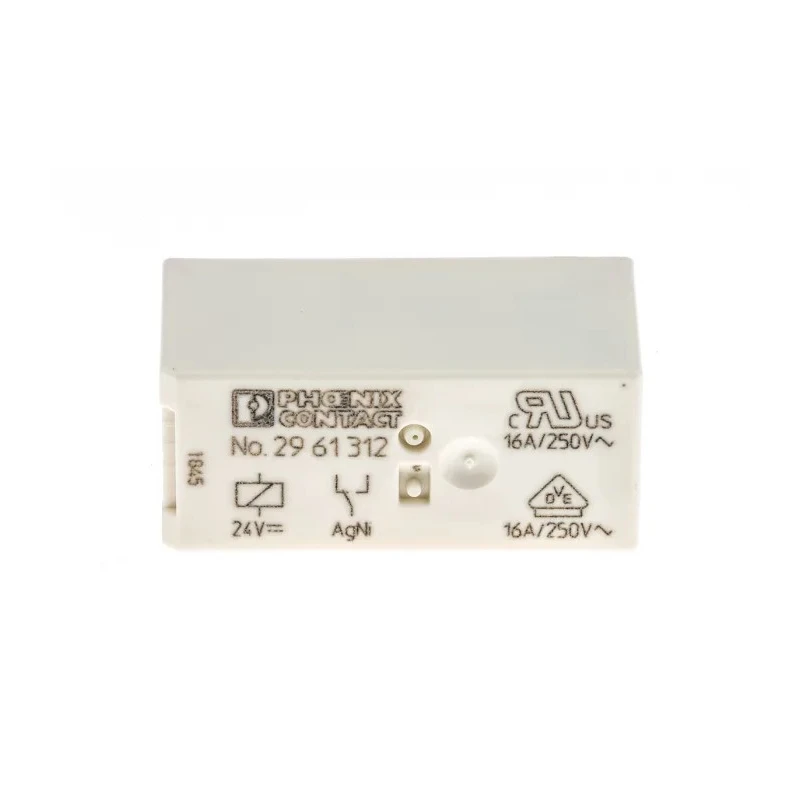

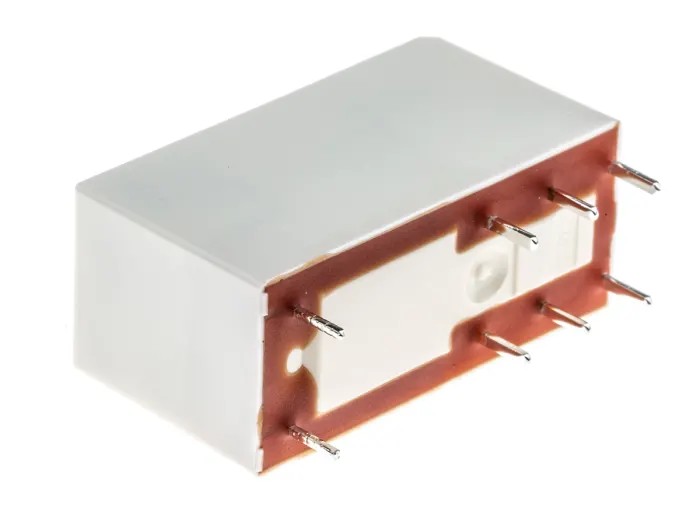

Phoenix Contact PCB Power Relay, 24V DC Coil Voltage, 16A Switching Current, SPDT Configuration 2961312

Phoenix Contact 2961312 PCB Power Relay is a compact and reliable industrial-grade relay designed to open and close electrical circuits efficiently. Featuring a 24V DC coil and a SPDT contact configuration, this relay supports switching currents up to 16A, making it suitable for a wide range of electrical and automation applications.

Its contact materials consist of a durable silver alloy, providing long-lasting performance and consistent conductivity. The relay is optimized for use on printed circuit boards (PCB) with through-hole solder terminal mounts, ensuring secure mechanical and electrical connections.

The device operates safely within a wide temperature range from -40°C to +85°C, making it ideal for industrial environments such as manufacturing, automation systems, telecommunications equipment, and other electronic control devices. It can withstand a maximum switching power of 4kVA for AC and 384W for DC loads, with switch voltage limits of 250V AC and 250V DC.

The 2961312 model from Phoenix Contact complies with RoHS directives and international standards like VDE, EN, IEC, and UL, attesting to its quality and safety. Its non-latching design conserves energy by automatically returning to the normally closed position when the coil is de-energized, eliminating the need for manual resetting.

Compact dimensions of 29 mm height, 15.7 mm width, and 12.7 mm length allow space-saving integration into complex circuit designs. This power relay is ideal for use cases in industrial automation, electrical signal conditioning, and control panels.

The relay features a robust 24V DC coil voltage suitable for PCB mounting applications. It supports a maximum switching current of 16 amperes to handle moderately high loads. Contact configuration is SPDT, allowing one common contact to switch between two outputs.

Silver alloy contact materials ensure long service life and reliable conductivity. Wide operating temperature range from -40°C to +85°C ensures suitability for harsh industrial environments. Compact relay size measuring 29 mm height, 15.7 mm width, and 12.7 mm length saves PCB space.

Through-hole solder terminal type enables strong mechanical and electrical connection to PCB. Maximum switching voltages of 250V AC and 250V DC support various AC and DC applications. RoHS and multiple international standards compliance including VDE, EN, IEC, and UL ensures quality and safety.

Non-latching relay returns to default NC position when power is off, saving energy and avoiding manual reset. Explore more high-quality Power Relays and industrial automation components at EnvMart for reliable electrical system design and implementation.
