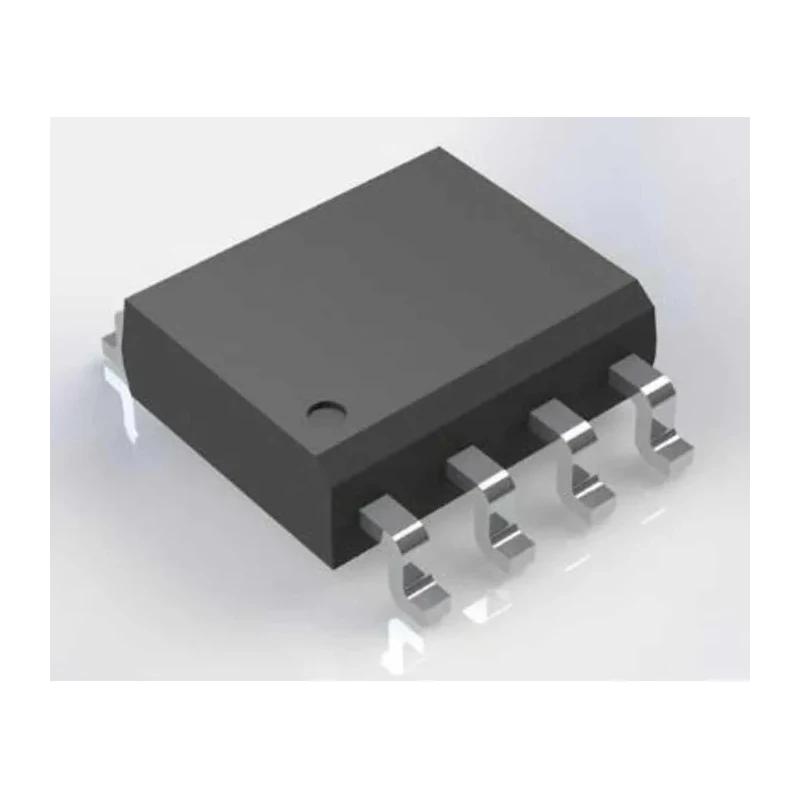

Renesas Electronics Differential Line Driver, 8-Pin SOIC HA9P5002-9Z, 15V Supply, 8.3mA Current, 2ns Propagation Delay

Renesas Electronics HA9P5002-9Z is a differential line driver housed in an 8-pin SOIC surface mount package. It operates at a supply voltage of 15 V and consumes a supply current of 8.3 mA. Designed as a monolithic buffer amplifier with high slew rate of 1300 V/µs and a wide bandwidth of 110 MHz, the HA9P5002-9Z ensures fast and accurate signal transmission in various electronic applications.

This line driver features a low propagation delay time of 2 ns, enabling high-speed data communication. Its voltage gain of 0.995 provides precise amplification with low gain error. The device maintains reliable operation over a broad temperature range from -40°C to 85°C, making it suitable for industrial and commercial uses.

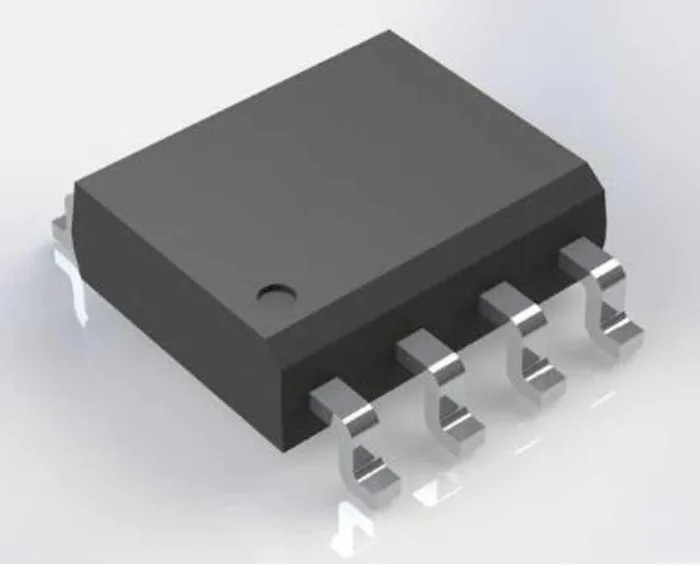

The compact 8-pin SOIC package measures 5 mm in length, 6.2 mm in width, and 1.75 mm in height, facilitating easy integration into electronic circuits. The HA9P5002-9Z is ideal for replacing older hybrid line driver ICs, offering improved output voltage swing and a higher input impedance of 3000 kΩ.

This product complies with RoHS standards, ensuring environmental safety and regulatory compliance. Typical applications include communication equipment, signal conditioning, and various interface designs requiring differential line driving capability.

This device offers a very high slew rate of 1300 V/µs and a wide bandwidth of 110 MHz. The monolithic design provides excellent gain accuracy with a voltage gain of 0.995. The propagation delay time at load capacitance is just 2 ns, supporting high-speed data transmission.

Operating temperature range extends from -40°C to 85°C, suitable for industrial environments. Compact 8-pin SOIC surface mount package with dimensions 5 x 6.2 x 1.75 mm. Supply current consumption of 8.3 mA for energy-efficient operation.

Compliance with RoHS environmental standards.

This Renesas Electronics HA9P5002-9Z differential line driver is a reliable, high-performance component essential for electronic circuit designs in industrial, communication, and instrumentation applications. Browse more in the Line Interface IC category at EnvMart for compatible components and accessories.
