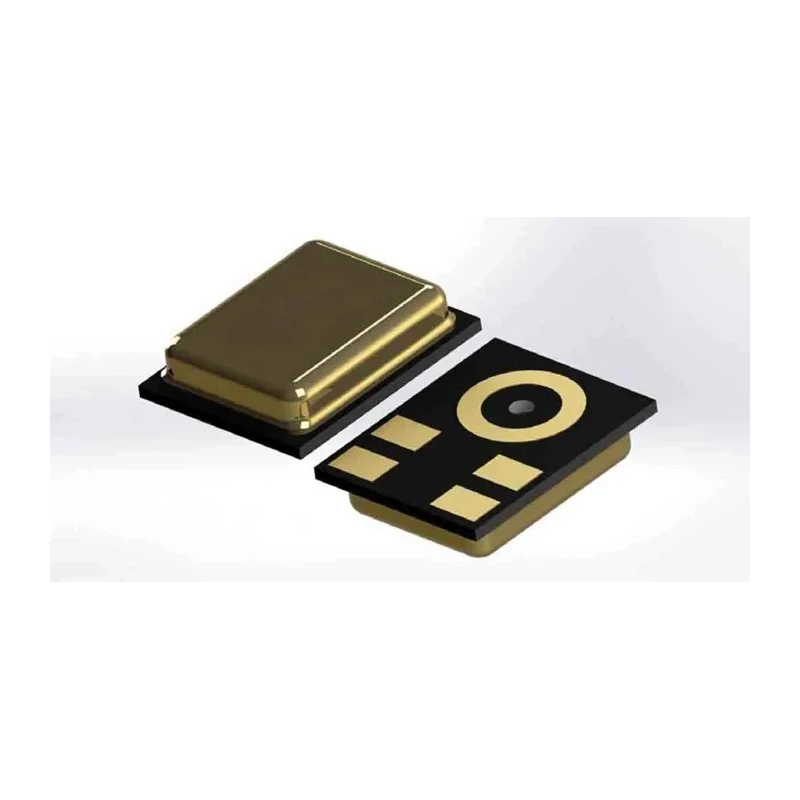

STMicroelectronics Audio Amplifier System 5-Pin Surface Mount RHLGA 3.5mm x 2.65mm x 0.98mm MP23ABS1TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.98mm |
| Length | 3.5mm |
| Model | MP23ABS1TR |
| Width | 2.65mm |
| Mount Type | Surface |
| Series | MP23ABS1 |
| Maximum Operating Temperature | 85°C |
| Package Type | RHLGA |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ECOPACK, RoHS, GREEN |
| Pin Count | 5 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.52V |
| Amplifier Type | Audio System |
| • High acoustic overload point | 130 dBSPL typ |
Key Features
- Operates at a single supply voltage of 1.52 V to 3.6 V.
- Omnidirectional microphone sensitivity with high signal-to-noise ratio of approximately 64 dB.
- High acoustic overload point rated at 130 dBSPL typical.
- Compliant with reflow soldering standards for streamlined manufacturing.
- Ultra-flat frequency response and low latency performance.
- Ultra-low power consumption at maximum 150 microamperes.
- Enhancement with RF immunity ensuring stable operation in noisy environments.
- Designed without automotive standards applicability.
Product Description
STMicroelectronics MP23ABS1TR audio amplifier system is a highly integrated microphone solution designed for electronic applications requiring compact size and low power consumption. Featuring a 5-pin surface mount RHLGA package measuring 3.5mm by 2.65mm by 0.98mm, this device offers excellent sonic performance with an acoustic overload point of 130 dBSPL and a high signal-to-noise ratio of 64 dB.
This amplifier supports a single supply voltage range from 1.52 V to 3.6 V, making it suitable for battery-powered or low-voltage systems. The device's omnidirectional sensitivity facilitates wide-area acoustic detection, ideal for voice pick-up or environmental sound sensing.
The MP23ABS1TR also benefits from enhanced RF immunity and is compliant with RoHS, ECOPACK, and green manufacturing standards. The package is designed for reliable reflow soldering ensuring robust mounting on printed circuit boards, which simplifies assembly in automated production lines.
Its ultra-flat frequency response and low latency make it a prime candidate for high fidelity audio applications including consumer electronics, communication devices, and instrumentation.
Operates on low power with a maximum current consumption of 150 μA. Omnidirectional sensitivity provides accurate sound capture from all directions. High acoustic overload point protects against distortion at high sound pressure levels.
Compact RHLGA surface mount package enables use in space-constrained electronic designs. Designed without automotive certification but suitable for general industrial and consumer electronics use.
This compact audio amplifier is perfect for applications in industrial electronics, consumer audio devices, telecommunications, and embedded system projects requiring precise microphone input with minimal power draw.
Explore further electronic components and integrated circuits in the Audio Amplifier ICs category at EnvMart for comprehensive selection and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a single supply voltage range from 1.52 V to 3.6 V, making it suitable for battery-powered applications.
The RHLGA package measures 3.5 mm in length, 2.65 mm in width, and 0.98 mm in height.
The maximum current consumption of this unit is 150 microamperes, ensuring low power usage.
It has a high acoustic overload point rated at 130 dBSPL typical, which helps protect against distortion at high sound pressure levels.
The audio amplifier system features a high signal-to-noise ratio of approximately 64 dB, enhancing sound quality.
The MP23ABS1TR operates within a temperature range of -40°C to 85°C.
Yes, it is compliant with RoHS, ECOPACK, and green manufacturing standards.
This unit uses a surface mount design, specifically in an RHLGA package.
It is suitable for applications in industrial electronics, consumer audio devices, telecommunications, and embedded systems requiring precise microphone input.
The MP23ABS1TR benefits from enhanced RF immunity, ensuring stable operation in noisy environments.
This audio amplifier system has a pin count of 5.
It features an ultra-flat frequency response, making it suitable for high fidelity audio applications.
