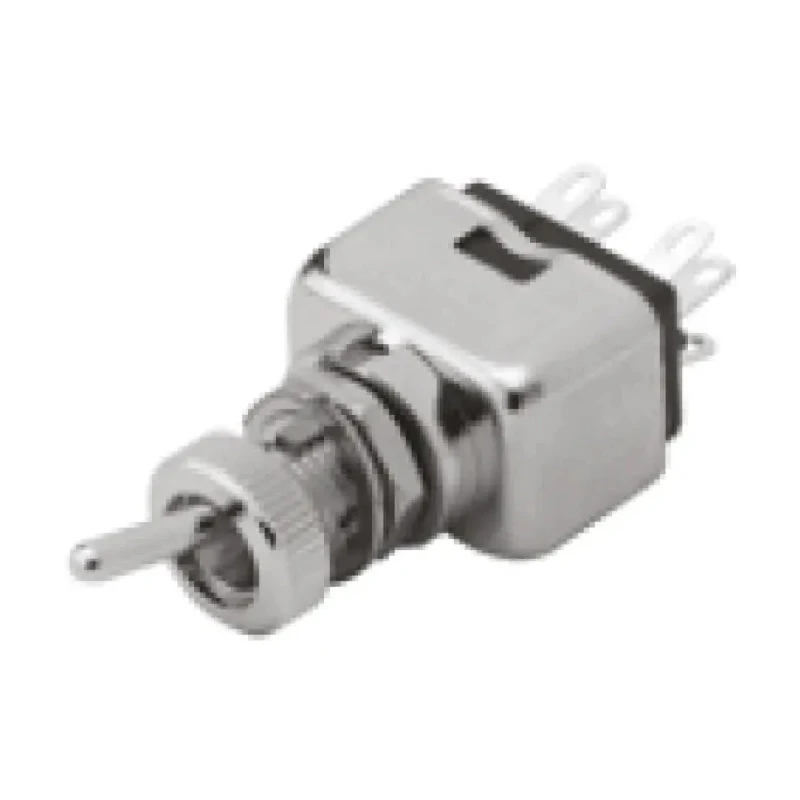

EOZ Rotary Switch Panel Mount On-On SPDT Solder Terminal 48 V dc 220 V ac 02 17312 21

Free Delivery in India | Lowest Global Shipping Charges

EOZ Rotary Switch Panel Mount On-On SPDT Solder Terminal 48 V dc 220 V ac 02 17312 21



Category Rotary Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
IP Rating	IP68
Approvals	CECC, NFC, MIL, OTAN, LNZ etc. for the tropical version
Mount Type	Panel
Series	DJET
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-40°C

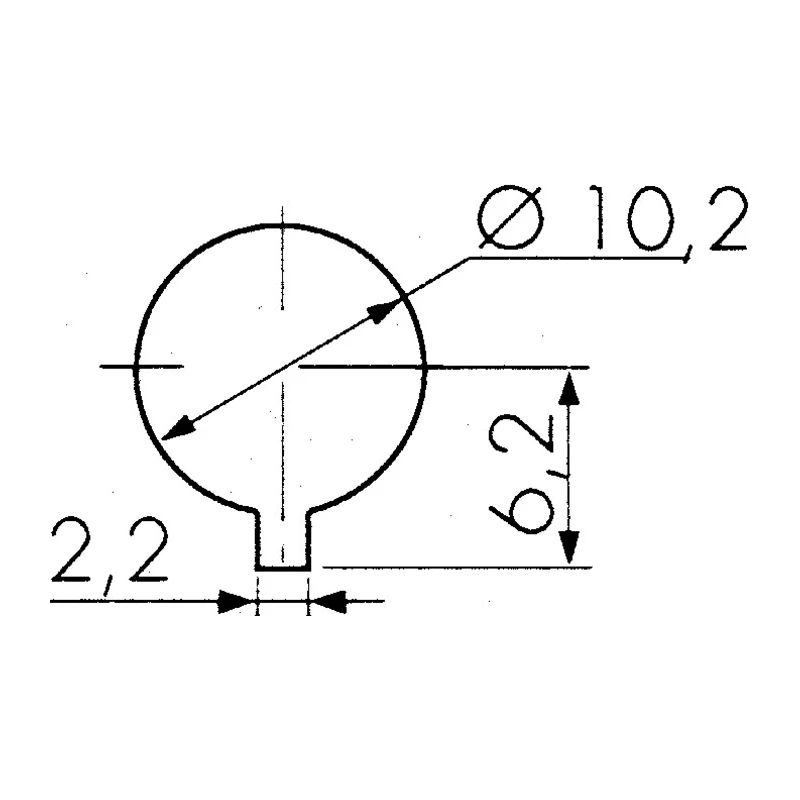

Panel Cutout Size	10.2 mm
Terminal type	Solder
Standards/Approvals	CECC, LNZ, NFC, OTAN, IEC, RoHS, MIL
Switch Operation	On-On
Actuator Length	6.35mm
Contact DC Voltage	48V dc
Switch Contact Current	4.5A
Mechanical Life	100000Cycles
Contact AC Voltage	220V ac

Key Features

This rotary switch is designed for panel mounting applications.
It features a single-pole double-throw (SPDT) contact configuration with On-On switch operation.
The terminals are solder type for secure electrical connections.
Rated for 48 V dc and 220 V ac with a current rating of 4.5 A.
This switch offers an IP68 protection rating, making it highly resistant to dust and water ingress.
It operates reliably over a temperature range from -40°C to 85°C.
The mechanical life expectancy is 100000 cycles, ensuring durable performance.
Designed with excellent vibration, shock, and jarring resistance for industrial use.

Product Description

EOZ 02 17312 21 rotary switch is a high-quality panel mount switch designed for demanding electrical and industrial applications. With On-On switch operation and a single-pole double-throw (SPDT) contact configuration, this switch supports robust electrical control circuits.

Its solder terminal type ensures secure and reliable connections in electrical panels. Rated for 48 V dc and 220 V ac contact voltages with a current rating of 4.5 A, it is suitable for a broad range of DC and AC circuits.

The switch features an IP68 ingress protection rating, providing excellent resistance against dust and water, making it ideal for harsh industrial or outdoor environments. The durable actuator with a length of 6.35 mm and a panel cutout size of 10.2 mm allow for straightforward panel integration.

Engineered for long-term use, it offers a mechanical life of 100000 cycles and stable contact resistance, maintaining reliable operation under vibration, shock, and jarring conditions.

This EOZ switch complies with numerous international standards and approvals including CECC, LNZ, NFC, OTAN, IEC, RoHS, and MIL, demonstrating its conformity to quality and safety requisites.

This rotary switch is designed for panel mounting applications. Features On-On single-pole double-throw operation for versatile switching. Solder terminal connections provide secure electrical interface. Rated contact voltages: 48 V dc and 220 V ac with 4.5 A current capacity.

IP68 rated for superior dust and water resistance in tough environments. Operational temperature range from -40°C to 85°C supports diverse applications. Long mechanical life expectancy of 100000 cycles ensures durability.

Resistant to vibrations, shocks, and jarring, suitable for industrial use. Complies with CECC, LNZ, NFC, OTAN, IEC, RoHS, and MIL standards.

Ideal for industrial control systems, automation equipment, electrical panels, and various harsh environment applications. This EOZ Rotary Switch combines reliability, durability, and compliance with strict standards to meet professional engineering needs.
