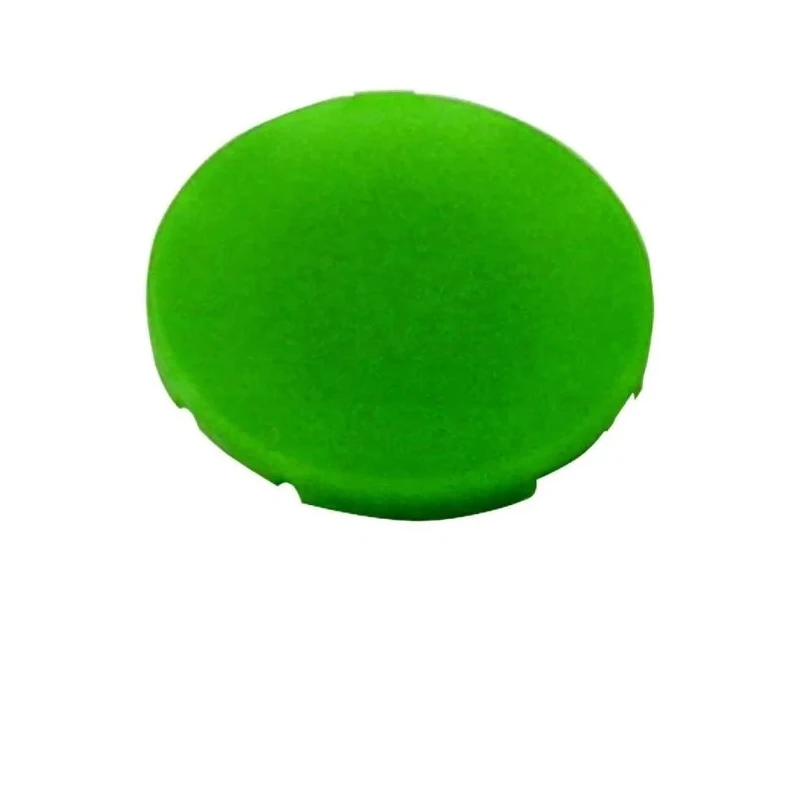

Eaton Button Plate Accessory for Panel-Mounted Push Buttons, Series M22, Flat Actuator, START Legend 218196 M22-XD-G-GB1

Name: Eaton Button Plate Accessory for Panel-Mounted Push Buttons, Series M22, Flat Actuator, START Legend 218196 M22-XD-G-GB1
Brand: Eaton
SKU: 423071
Price: 450.82 INR
Availability: InStock



Category Push Button Labels & Legends Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Model	218196 M22-XD-G-GB1
Series	M22
Accessory Type	Button Plate
For Use With	M30C-FD-X, M22-DG-X, M30C-FDR-X, M22 (S) -D-X, M22 (S) -DR-X
Standards/Approvals	IEC/EN 61439

Key Features

Designed to fit M30C-FD-X, M22-DG-X, M30C-FDR-X, M22 (S)-D-X, and M22 (S)-DR-X control modules.
Flat actuator offers low-profile installation for compact control stations.
START legend inscribed in English ensures clear operator recognition.
Suitable for industrial control stations requiring clear inscriptions and compact actuator design.
Complies with IEC/EN 61439 standards for electrical control equipment.
Operating temperature range from -25°C to 70°C for diverse environments.
Manufactured in Germany ensuring high quality and reliability.
Suitable for replacement and retrofit applications in compatible panel-mounted control modules.

Product Description

Eaton 218196 M22-XD-G-GB1 Button Plate is a precision accessory designed for panel-mounted push buttons, featuring a 24mm length flat actuator with a START legend inscribed in English, providing immediate operator recognition. It is compatible with various control modules including M30C-FD-X, M30C-FDR-X, M22-DG-X, M22 (S)-D-X, and M22 (S)-DR-X, making it suitable for industrial control stations that demand compact design and clear inscriptions.

The button plate boasts a flush actuator design which facilitates low-profile installation, ideal for tight panel spaces. It is engineered to operate reliably in a wide temperature range between -25°C and 70°C, allowing performance stability in diverse environmental conditions.

This accessory complies with IEC/EN 61439 standards, ensuring adherence to international safety and performance norms. Manufactured in Germany, the button plate reflects high-quality production standards essential for industrial applications.

It is an excellent choice for retrofitting existing M30C-FD-X compatible control stations or replacing worn operator plates such as the M30C-FDR-X series. While the product does not require UL/CSA certification, the responsibility for verifying short-circuit ratings and electromagnetic compatibility lies with panel builders.

Designed for use with Eaton M22 Series push button control stations. Flush, flat actuator marked START for clear functionality indication. Supports panel-mounted control modules including M30C-FD-X and others. Durable construction with operational temperature suitability from -25°C to 70°C.

Meets IEC/EN 61439 standards for electrical control equipment. Manufactured in Germany ensuring quality and compliance. Ideal for retrofitting and replacement of compatible operator plates. Explore the full range of Eaton push button labels and legends on EnvMart for comprehensive industrial control solutions.

Explore more products in our Push Button Labels & Legends category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operating temperature range for this button plate accessory is from -25°C to 70°C, allowing it to perform reliably in diverse environmental conditions.

This button plate accessory is compatible with M30C-FD-X, M22-DG-X, M30C-FDR-X, M22 (S)-D-X, and M22 (S)-DR-X control modules.

The accessory complies with IEC/EN 61439 standards for electrical control equipment, ensuring adherence to international safety and performance norms.

It features a flat actuator design that offers a low-profile installation, making it suitable for compact control stations.

This button plate accessory is manufactured in Germany, reflecting high-quality production standards essential for industrial applications.

The 'START' legend is inscribed in English to provide immediate operator recognition for functionality, ensuring clear identification during operation.

Yes, it is suitable for retrofitting existing M30C-FD-X compatible control stations or replacing worn operator plates such as those from the M30C-FDR-X series.

It is a button plate accessory designed for panel-mounted push buttons, specifically within the M22 series.

The actuator on this button plate measures 24mm in length, designed for compact installations.

While the product does not require UL/CSA certification, the responsibility for verifying short-circuit ratings and electromagnetic compatibility lies with panel builders.

It is intended for use in industrial control stations that require clear inscriptions and a compact actuator design.

The series designation for this button plate is M22, indicating its compatibility with Eaton's M22 series push button control stations.
