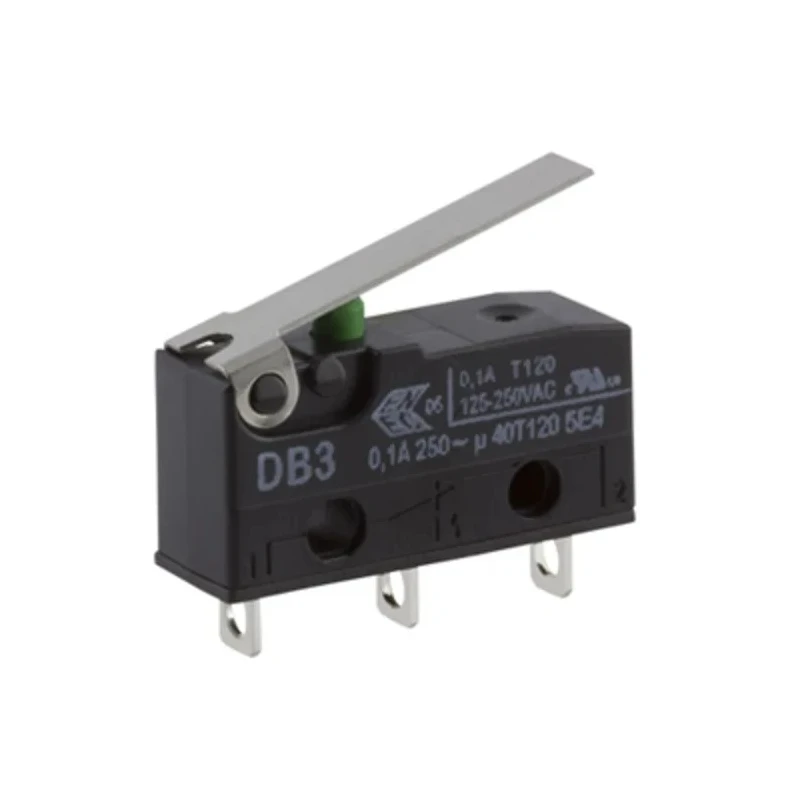

ZF Short Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, SPDT, IP50 DB3C-A1LB
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB3C-A1LB |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Short Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 100mA |
| Operating Force | 0.59N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| ZF Short Lever Micro Switch, Solder Terminal, 100mA, 250 V ac, SPDT, IP6K7Brand | ZF |
Key Features
- The switch includes a durable polyamide and polyethylene terephthalate housing for reliable insulation.
- It operates with a low force of 0.59N to trigger switching action.
- Designed for durability, it offers a mechanical life of up to 15 million operations.
- The operating temperature range is broad, from -40°C to 120°C, suitable for varied industrial conditions.
- Silver-nickel contacts ensure excellent conductivity and reliability.
- This micro switch uses a DB subminiature design ideal for compact applications.
- Compliance with RoHS standards guarantees it is free from hazardous materials.

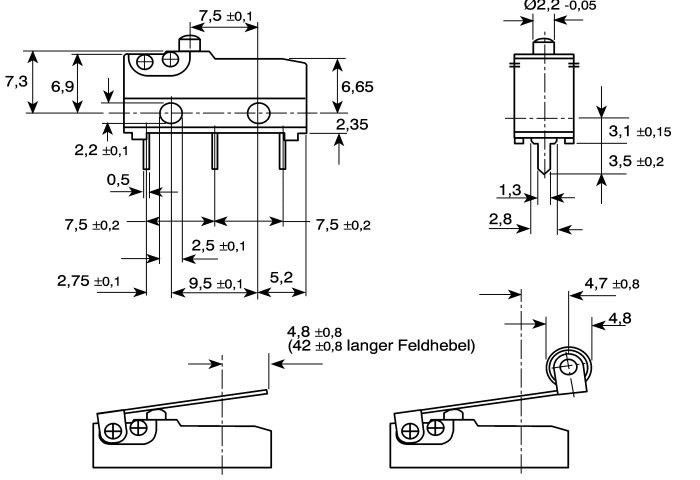

- The compact dimensions are approximately 11.65mm height, 20mm width, and 6.5mm depth.
Product Description
ZF DB3C-A1LB Short Lever Micro Switch is a compact and reliable SPDT micro switch designed for industrial and automation applications. It features a short lever actuator and solder-type terminals, making it suitable for precise control tasks.
The switch supports a contact current of 100mA at 250 V AC and provides an IP50 ingress protection rating, ensuring protection against dust ingress. The housing is made from high-quality polyamide and polyethylene terephthalate materials, offering excellent durability and electrical insulation.
Operating with a low actuation force of 0.59N, it ensures sensitive switching action critical for delicate equipment. The switch has a long mechanical lifespan rated at 15 million operations, implying exceptional durability in frequent switching scenarios.
Designed to withstand a wide temperature range from -40°C to 120°C, the micro switch operates reliably in harsh environmental conditions. Its silver-nickel contacts enhance electrical performance and reliability during switching cycles.
The DB subminiature type casing makes it ideal for applications where space is limited, common in modern electronics and automation control systems. It meets RoHS compliance for restricted hazardous substances, aligning with environmental standards.
The switch components include durable actuator and housing materials, contributing to long-term reliability. Widely used across industrial, manufacturing, automation, and control system applications. Compact dimensions facilitate easy integration into PCBs and compact control panels.
Offers dependable performance in laboratory, HVAC, and commercial electronic environments.
This product is part of the broader category of micro switches used globally in electrical and electronic industries. Explore additional Micro Switch variants and related automation components within EnvMart for your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch has a contact current rating of 100mA at 250V AC.
It operates within a temperature range of -40°C to 120°C, making it suitable for various industrial conditions.
This model has a mechanical life rated at 15 million operations, indicating its durability for frequent use.
It features a short lever actuator, which allows for sensitive switching action.
The micro switch has an IP50 ingress protection rating, providing some resistance against dust ingress.
The housing is made from polyamide and polyethylene terephthalate, offering reliable insulation and durability.
It requires a low actuation force of 0.59N to trigger the switching action.
Yes, it complies with RoHS standards, ensuring it is free from hazardous materials.
This model features solder-type terminals for secure electrical connections.
The compact dimensions are approximately 11.65mm in height, 20mm in width, and 6.5mm in depth.
It is widely used in industrial, manufacturing, automation, and control system applications due to its compact design and reliability.
It is classified as a DB subminiature type micro switch, making it ideal for compact applications.
