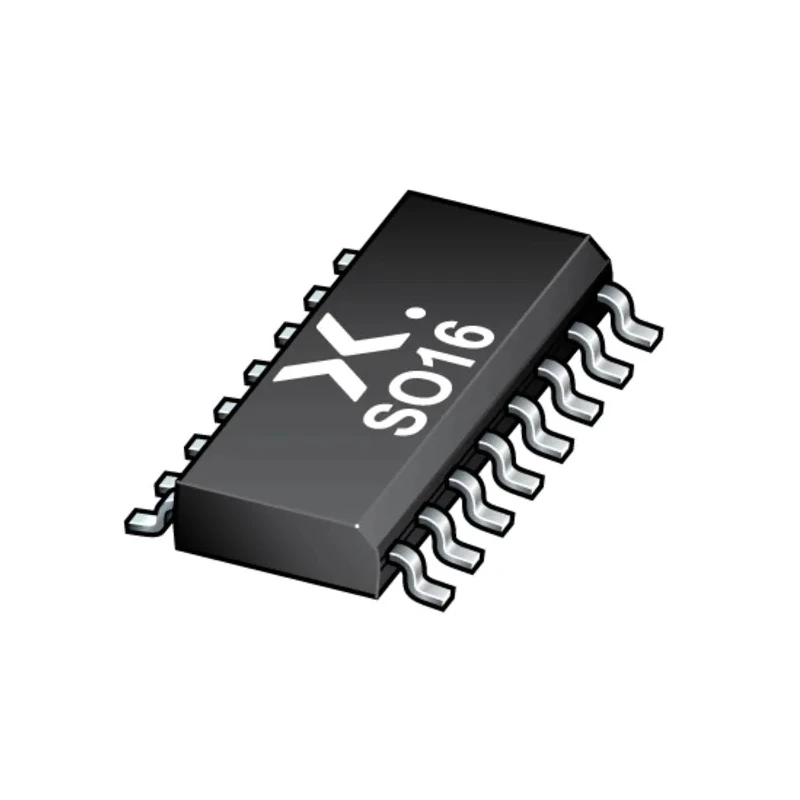

Nexperia 8-Bit Serial-In Serial or Parallel-Out Shift Register 16-Pin Surface Mount SO 74HCT595D,118

Nexperia 74HCT595D,118 is an 8-bit serial-in/serial or parallel-out shift register in a 16-pin surface mount SO package. Operating with a supply voltage range from 4.5V to 5.5V and a maximum operating temperature of 125°C, it is designed for reliable performance in industrial and commercial electronic applications.

The device features separate clocks for shift and storage registers, enabling precise control of data flow. Data shifts on the rising edge of the SHCP input and transfers from the shift to storage register on the rising edge of STCP input. An asynchronous reset input allows for immediate clearing of the register when driven low.

Its 16-pin SO package ensures easy surface mounting with a compact footprint (dimensions: 10mm length, 4mm width, 1.75mm height). The internal design supports cascading via serial input and output pins, ideal for extending bit-length in digital systems.

This shift register is well suited for use in control units, LED displays, electronic instrumentation, and digital logic circuits requiring expanded inputs and outputs. The device belongs to the 74HCT logic family known for high-speed CMOS operation and low power consumption.

Simple control interface for data management. Supports both asynchronous and synchronous load options. High frequency operation suitable for modern digital designs. Cascadable for extensive logic expansion. Robust performance under automotive standard conditions is not certified.

Choose Nexperia 74HCT595D,118 shift register for quality logic IC components in electronics manufacturing, embedded systems, and industrial automation. Browse through EnvMart's extensive semiconductor and Shift Register category to explore more specialized logic components from trusted brands.
