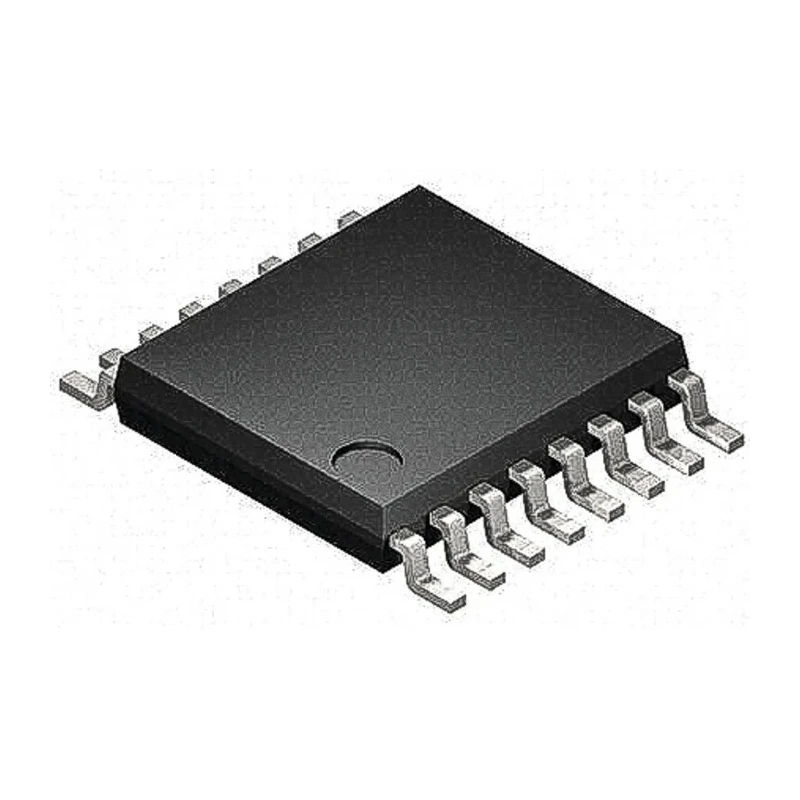

Nexperia 8-bit Serial-In/Serial or Parallel-Out Shift Register TSSOP 16-Pin 2-6V 74HC595PW,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 5.1mm |
| Model | 74HC595PW,118 |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | 74HC595 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Trigger Type | Positive Edge |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | 74HC |
| Minimum Supply Voltage | 2V |
| Nexperia 74HC595PW,112 8 Surface Shift Register HC 16 TSSOPBrand | Nexperia |
| onsemi MC74HC595ADTR2G 1 Surface Shift Register CMOS TSSOP, 16-PinBrand | onsemi |
Key Features
- The device features separate clock inputs for shift and storage registers.
- It offers serial input and output to enable cascading multiple registers.
- The asynchronous reset functionality clears the shift register when activated.
- Designed with positive edge trigger for reliable data shifting.
- Compact size with dimensions 5.1mm length, 4.5mm width, and 1.1mm height.
- Operation temperature rating up to 125°C for industrial applications.
- Ideal for I/O expansion, LED driver circuits, and display controls in electronic systems.
- Supports high-frequency operation with stable 74HC logic family performance.
Product Description
Nexperia 74HC595PW,118 is an 8-bit serial-in/serial or parallel-out shift register housed in a TSSOP 16-pin surface mount package. It operates with a supply voltage between 2V and 6V and withstands maximum operating temperatures up to 125°C.
This shift register features separate shift (SHCP) and storage (STCP) registers, allowing the shift register to be one clock pulse ahead of the storage register. It includes a serial input (DS) and serial output (Q7S) to enable cascading multiple devices for extended bit lengths. The asynchronous master reset (MR) clears the Shift Register instantly when driven low.
Clocking is positive edge-triggered, ensuring data is shifted on the rising edge of the clock input. The device is designed for high-frequency applications and is compatible with the 74HC logic family, providing reliable performance in complex digital electronic circuits.
Typical applications include I/O expansion in microcontroller systems, LED driver circuits, control units, and display systems. Its compact dimensions of 5.1mm length, 4.5mm width, and 1.1mm height enable space-saving PCB designs.
The device has a simple control interface with asynchronous and synchronous load options. It supports cascading to expand output pins easily. Designed to drive LEDs and other display elements efficiently. High-frequency performance suitable for data communication and processing tasks.
Robust operating temperature range suitable for industrial environments. Compatible with standard 74HC logic families for versatile circuit integration. Compact TSSOP package for surface mounting on PCBs.
This product is ideal for electronics, industrial automation, embedded systems, and communication device manufacturing. Find more electronic components and semiconductors in EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage between 2V and 6V.
The device has a length of 5.1mm, a width of 4.5mm, and a height of 1.1mm.
It can withstand maximum operating temperatures up to 125°C.
Clocking is positive edge-triggered, ensuring data is shifted on the rising edge of the clock input.
This shift register is housed in a TSSOP 16-pin surface mount package.
Yes, it features serial input and output to enable cascading multiple registers for extended bit lengths.
Typical applications include I/O expansion in microcontroller systems, LED driver circuits, control units, and display systems.
It uses a positive edge trigger for reliable data shifting.
This model has a pin count of 16.
It is compatible with the 74HC logic family, providing reliable performance in digital circuits.
The device contains 1 element.
It has a simple control interface with asynchronous and synchronous load options.
