Nexperia 20 V Zener Diode Single 400 mW 2% Surface Mount 2-Pin SOD-323 PDZ20B,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 20 V Zener Diode Single 400 mW 2% Surface Mount 2-Pin SOD-323 PDZ20B,115

Name: Nexperia 20 V Zener Diode Single 400 mW 2% Surface Mount 2-Pin SOD-323 PDZ20B,115
Brand: Nexperia
SKU: 318396
Price: 0.03 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.7mm
Model	PDZ20B,115
Mount Type	Surface
Series	PDZ-B
Maximum Operating Temperature	150°C
Package Type	SOD-323
Standards/Approvals	EU/CN RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	400mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	20V
Zener Type	Voltage Regulator
Maximum Zener Impedance	20Ω
Typical Voltage Temperature Coefficient	16.4mV/K
Total power dissipation	max. 400 mW
Wide variety of voltage ranges	nominal 2.4 to 36 V (E24 range)

Key Features

The device features a low voltage tolerance of ±2 percent for precise regulation.
It comes in a compact 2-pin SOD-323 package suitable for surface mounting.
Maximum operating temperature is 150°C, supporting demanding industrial applications.
Test current is specified at 5 mA with low maximum reverse leakage current of 50 nA.
Typical voltage temperature coefficient is 16.4 mV/K ensuring stable performance over temperature changes.
Approved to EU and China RoHS standards and qualified to AEC-Q101 automotive standard.
The Zener impedance is rated at a maximum of 20 Ω for efficient voltage regulation.

Product Description

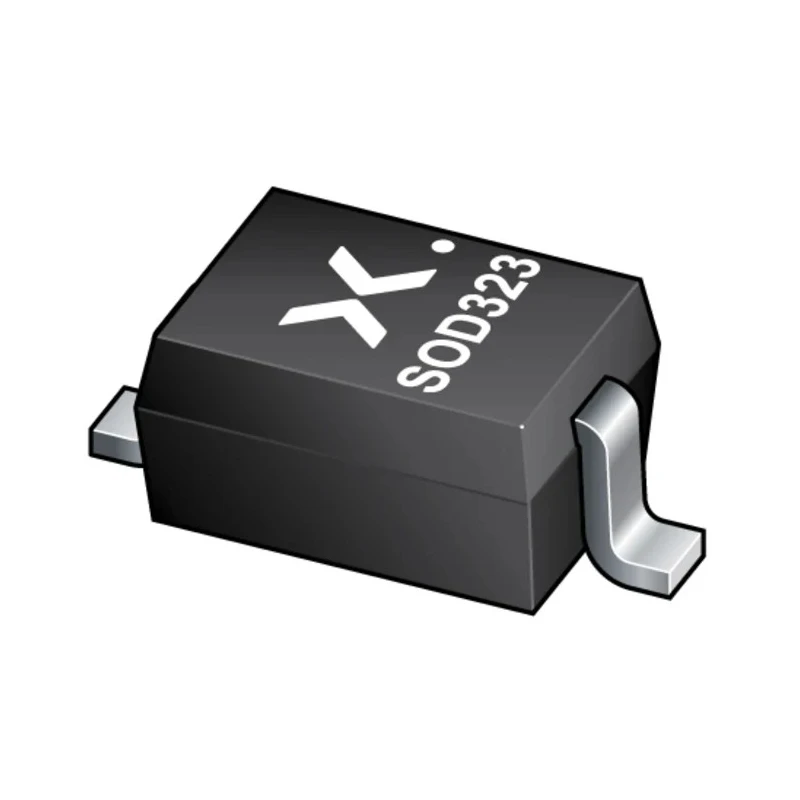

Nexperia PDZ20B,115 is a high-quality 20 V Zener diode designed for voltage regulation in electronic circuits. This single diode element comes in a small, surface-mount 2-pin SOD-323 package with a power dissipation rating of 400 mW and precise voltage tolerance of ±2%.

Its robust design supports continuous operation up to 150°C, making it suitable for industrial and automotive applications requiring dependable voltage regulation. The diode’s low reverse leakage current of 50 nA and maximum Zener impedance of 20 Ω ensure efficient and stable voltage clamping under test conditions of 5 mA current.

The device is AEC-Q101 qualified and compliant with EU and CN RoHS standards, emphasizing its suitability for automotive and environmentally-conscious electronics manufacturing. The nominal voltage range covers nominally from 2.4 V to 36 V, with PDZ20B,115 fixed at 20 V.

With dimensions of 2.7 mm length and 1.1 mm height, this Zener diode offers compactness for surface-mounted circuit designs where space optimization is critical. It is ideal for use in power supplies, regulators, and industrial control electronics.

The diode is constructed for stable voltage regulation with ±2% voltage tolerance. It maintains reliable operation across temperature variations with a temperature coefficient of 16.4 mV/K. The SOD-323 package facilitates easy automated assembly and forms a secure, low-inductance connection.

Compliance with automotive and environmental standards ensures performance and reliability in production. Low maximum reverse leakage current improves energy efficiency in circuits. Its power rating of 400 mW suits low power regulation needs in embedded systems.

The device’s small footprint supports miniaturized electronics manufacturing.

Overall, the Nexperia PDZ20B,115 Zener Diode provides durable, precise voltage regulation for electronic industrial, automotive, and commercial applications. It is an essential discrete semiconductor component for engineers and PCB designers looking for high-quality standard-compliant voltage regulation solutions.

Browse the Electronics & Electricals category on EnvMart to explore this and other semiconductor components including Zener Diodes and voltage regulators from top brands.
