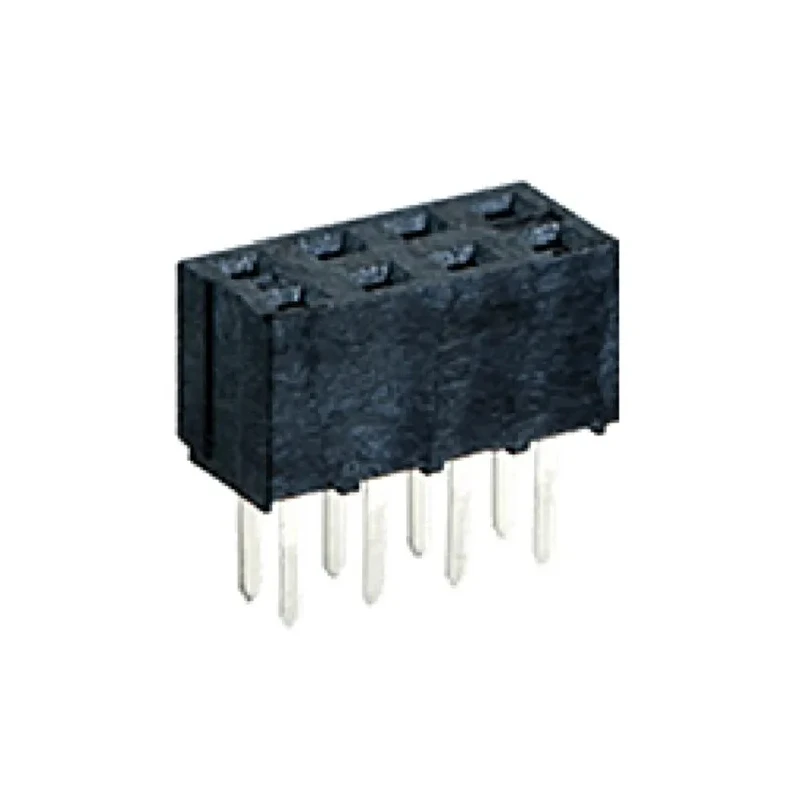

Molex 79107 Series Straight Through Hole 10-Contact 2 Row 2 mm Pitch Board-to-Board PCB Socket 791077004

Molex 791077004 PCB Socket from the 79107 Series is a straight through hole connector designed to facilitate secure and efficient board-to-board signal connections. The product features a dual row, 10-contact configuration with a 2 mm pitch and is engineered for industrial and electronic applications requiring compact, reliable connections.

The connector housing is made of thermoplastic material enhancing durability while maintaining a lightweight form factor. The contacts, constructed from bronze, are plated with 0.38μm of gold to ensure excellent conductivity and resistance to corrosion, supporting a maximum current of 12 A and voltage rating of 125 V.

This dual-row, through hole mounted PCB socket is intended for use in applications where boards are connected in parallel or perpendicular configurations. It offers a plug-in termination type and a female contact gender, suitable for signal and board-to-board connector systems.

Operating temperature ranges between -55°C and 105°C making the connector reliable under diverse environmental conditions. The terminal design allows for east-west mating and early entry mating from the top, enhancing assembly efficiency.

Constructed with thermoplastic housing for durability. Supports a current rating of 12 A and voltage up to 125 V. Features gold plated bronze contacts for enhanced conductivity and corrosion resistance. Designed for through hole mounting with a straight orientation.

Operates within a wide temperature range from -55°C to 105°C. Utilizes a plug-in termination type for ease of connection. Dual row arrangement enables compact circuit layouts with 2 mm pitch spacing. Suitable for board-to-board signal connections in industrial and electronic applications.

Available in circuit sizes from 4 to 50 (2 circuit increments).

This PCB socket is suitable for industries such as electronics manufacturing, industrial control systems, communication devices, and other applications requiring reliable, compact electrical connections between printed circuit boards.
