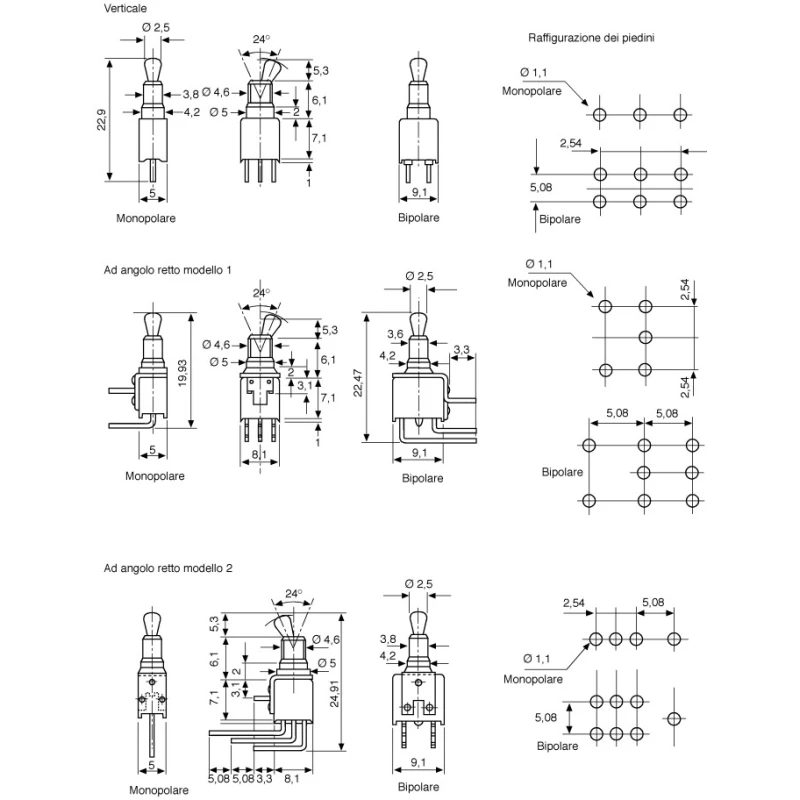

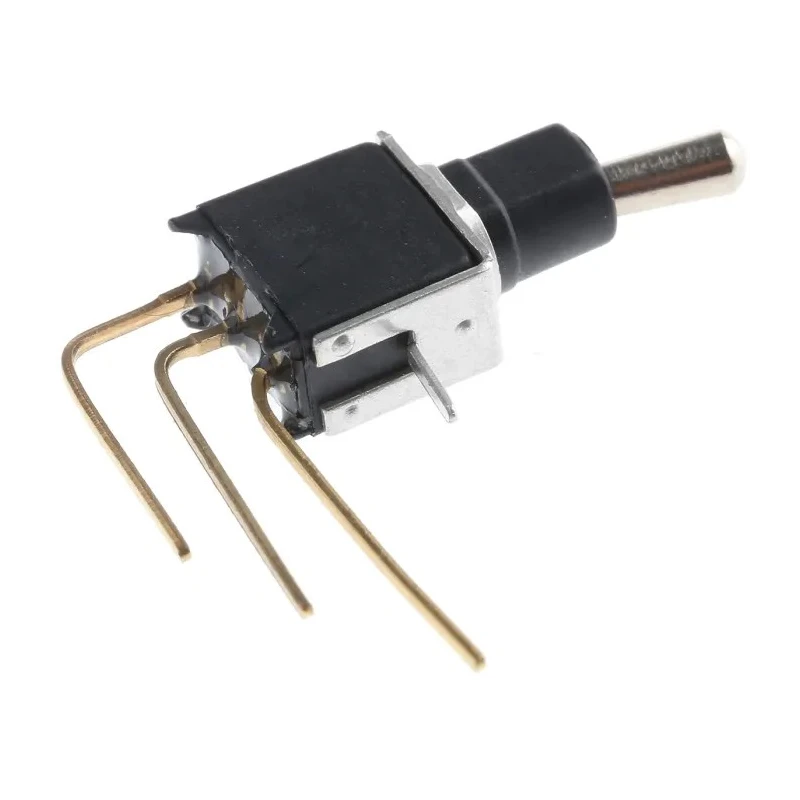

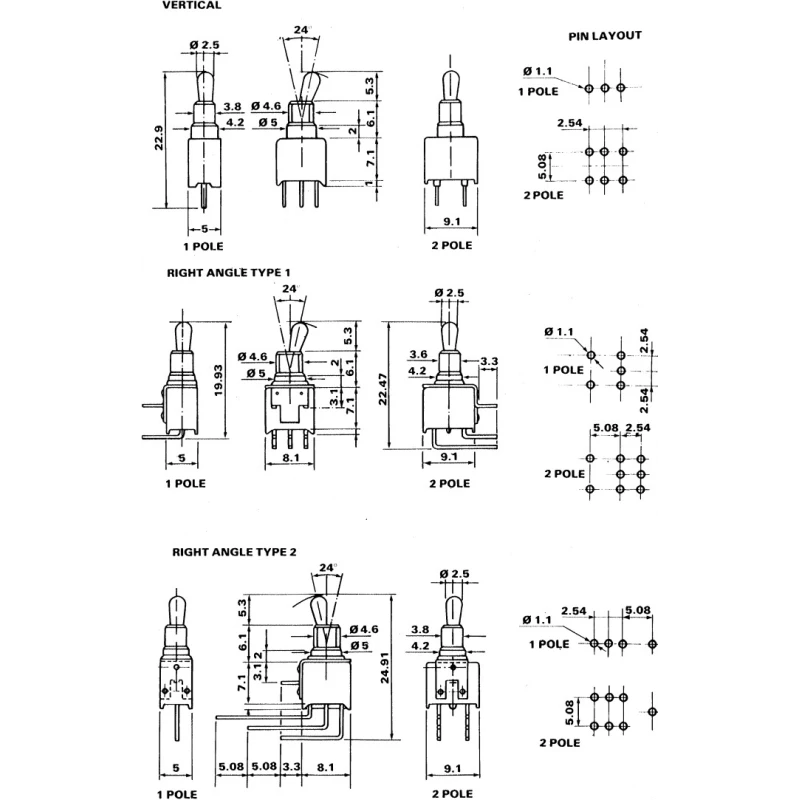

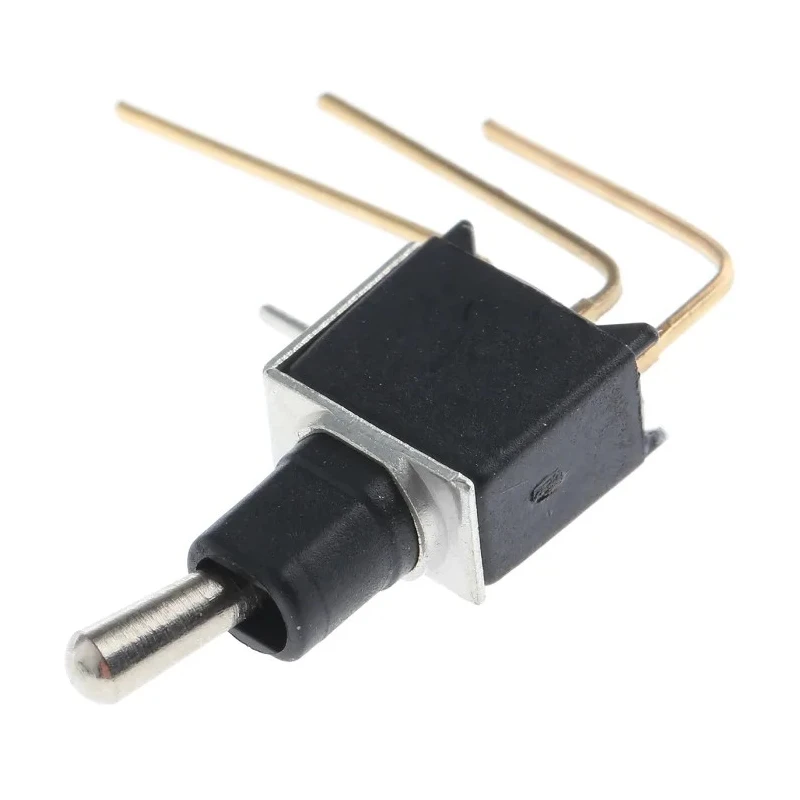

APEM Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 20 V dc, 20 V ac TL36WW050

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 20 V dc, 20 V ac TL36WW050

Name: APEM Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 20 V dc, 20 V ac TL36WW050
Brand: APEM
SKU: 317907
Price: 11.6 USD
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	19.58mm
Length	9.1mm
Model	TL36WW050
Width	8.65mm
Mount Type	PCB
Series	TL
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Number of Operations	60000 (2 pos), 30000 (3 pos)
Standards/Approvals	RoHS
Switch Operation	On-On
Actuator Length	5.3mm
Contact DC Voltage	20V dc
Switch Contact Current	400mA
Contact AC Voltage	20V ac
Actuator Material	Brass
Minimum load current	10mA at 50mV - 10μA at 5Vdc
RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole TerminalBrand	RS PRO
APEM Toggle Switch, PCB Mount, Latching, SPST, Through Hole TerminalBrand	APEM

Key Features

The switch features a through hole terminal suitable for PCB installation.
It has a switch contact current rating of 400 mA for reliable circuit control.
The actuator is made of brass and measures 5.3 mm in length for precise operation.
Operates within a temperature range of -30°C to 85°C, suitable for varied environments.
This toggle switch complies with RoHS standards, ensuring environmental safety.
The switch supports a minimum load current from 10 mA at 50 mV to 10 μA at 5 V dc.
It offers a high durability with 60000 switching operations for two-position and 30000 for three-position configurations.

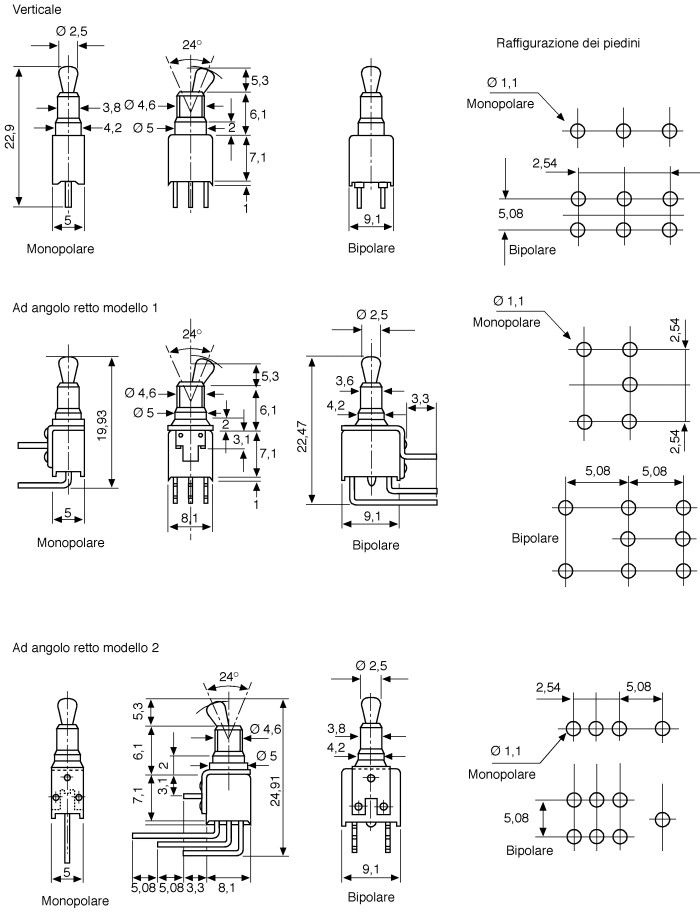

Compact dimensions of 19.58 mm height, 9.1 mm length, and 8.65 mm width make it ideal for space-constrained applications.

Product Description

APEM TL36WW050 Toggle Switch is a high-quality, ultra-miniature switch designed for PCB mounting in electrical and electronic circuits. Ideal for low voltage applications, it supports both 20 V dc and 20 V ac contact voltages, providing reliable switching performance with a contact current of 400 mA. The On-On SPDT switch configuration enables simple directional control and selection in compact systems.

This switch features a brass actuator measuring 5.3 mm in length and a PBT case, ensuring mechanical durability and resistance to wear. It is totally sealed and washable, suited for immersion cleaning without compromising functionality. The terminals are gold-plated brass, which ensures corrosion resistance and long operational life. Additionally, the switch is wave solderable and can withstand soldering temperatures up to 260°C for 5 seconds.

Operating temperatures range from -30°C to 85°C, allowing the switch to function reliably in diverse environmental conditions. This component is compliant with RoHS directives, supporting eco-friendly manufacturing requirements. With a design supporting up to 60000 operations for two-position switching and 30000 for three-position, the TL36WW050 offers robust reliability for industrial, automation, and consumer electronics applications.

The switch’s compact dimensions (19.58 mm height x 9.1 mm length x 8.65 mm width) make it suitable for installation in space-restricted PCBs and electronic modules. Thanks to its sealed construction, it is ideal for use in environments requiring washability or exposure to contaminants.

Applications include industrial control panels, automation systems, instrumentation, and other electrical assemblies requiring reliable manual switching. Its through hole terminal style facilitates easy PCB soldering and secure mechanical mounting.

The gold-plated contacts ensure minimal contact resistance and increased longevity for low current applications.

This Toggle Switch is manufactured in France, reflecting high European quality standards. It is part of the TL series known for durability and precision. Suitable for electronics, electrical automation, and laboratory equipment, this switch enhances system reliability and user control.

Explore more in the Electronics & Electricals category at EnvMart for compatible switches and automation components to fit your project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The TL36WW050 features an On-On SPDT (Single Pole Double Throw) switch configuration, allowing for simple directional control and selection in compact systems.

This model can operate at a maximum temperature of 85°C, making it suitable for various environmental conditions.

The switch has a contact current rating of 400 mA, ensuring reliable circuit control.

The dimensions of this toggle switch are 19.58 mm in height, 9.1 mm in length, and 8.65 mm in width, making it compact for space-constrained applications.

It supports a minimum load current ranging from 10 mA at 50 mV to 10 μA at 5 V dc.

This toggle switch features through hole terminals, which facilitate easy PCB soldering and secure mechanical mounting.

The actuator of the TL36WW050 measures 5.3 mm in length, providing precise operation.

The switch is rated for up to 60,000 operations for two-position switching and 30,000 for three-position configurations, offering robust reliability.

The minimum operating temperature for the TL36WW050 is -30°C, allowing it to function in colder environments.

Yes, this toggle switch complies with RoHS standards, ensuring it meets environmental safety requirements.
