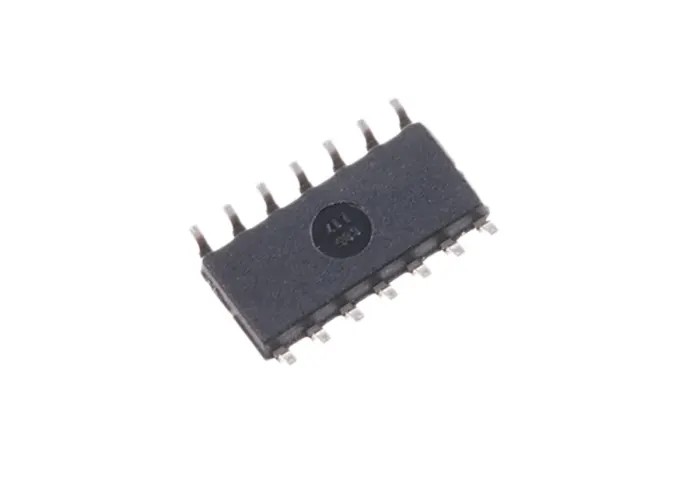

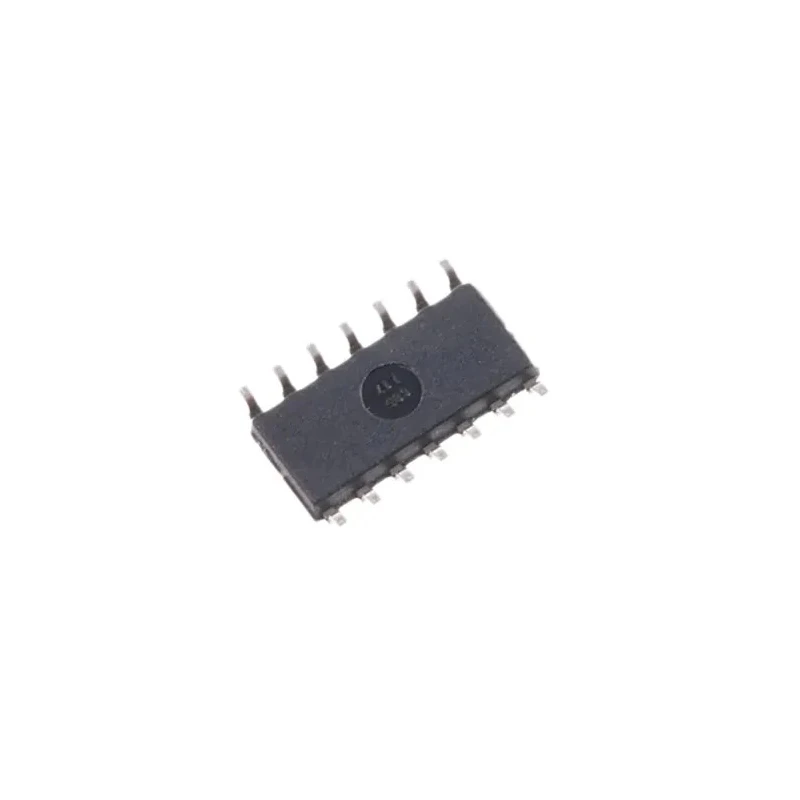

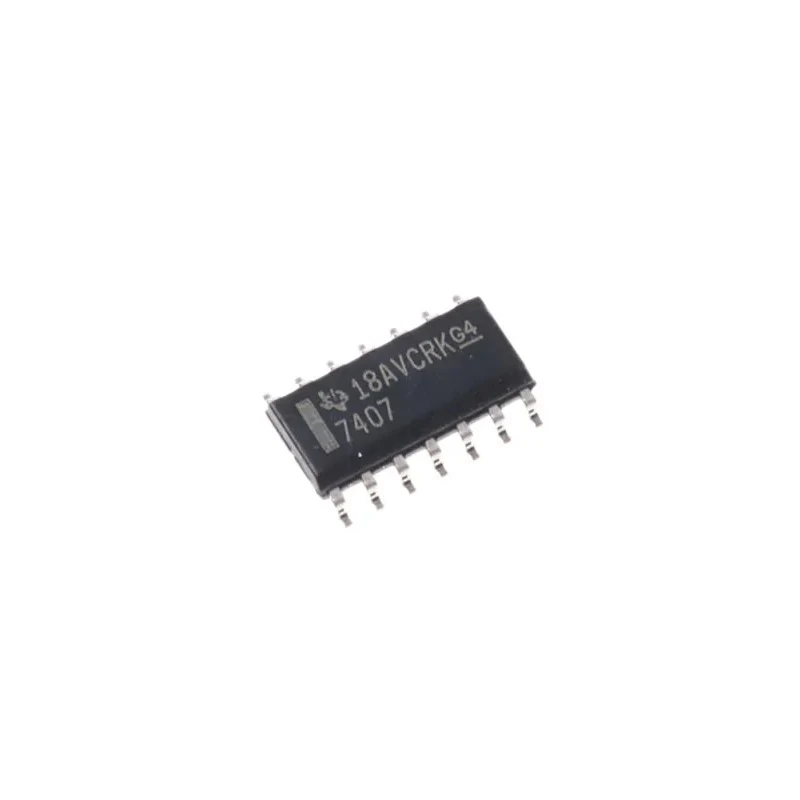

Texas Instruments 6-Channel Buffer & Line Driver Open Collector Non-Inverting 14-Pin SOIC SN7407D

Texas Instruments SN7407D is a 6-channel buffer and line driver featuring open collector, non-inverting outputs, packaged in a 14-pin SOIC for surface mounting applications. Operating within a 4.75 V to 5.25 V supply voltage, this integrated circuit is designed for buffering and line driving functions in numerous electronic equipment and systems.

This buffer IC belongs to the 74xx logic family, delivering standard TTL logic performance. It supports single-ended input and open collector output types, offering six independent channels. The device provides a maximum propagation delay time of 14 nanoseconds at a capacitive load, ensuring fast response times essential for timing-critical applications.

With a compact form factor measuring 8.75 mm length, 4 mm width, and 1.75 mm height, the SN7407D is optimized for space-saving designs in modern circuit boards. Its maximum supply current of 41 mA contributes to efficient power management over a temperature range of 0°C to 70°C, making it suitable for general-purpose industrial and consumer electronic applications.

The device’s non-inverting outputs utilize open collector technology, enabling wired-AND logic and level shifting in interface circuits. It is ideal for line driving functions where multiple outputs are required to drive loads with various voltage requirements.

This IC is surface mount type with a standard small outline integrated circuit (SOIC) package, facilitating automated assembly processes. Although not automotive qualified, the device suits applications in instrumentation, measurement, and control systems where reliable buffer and line driver characteristics are needed.

Operates at supply voltage range 4.75 V to 5.25 V. Open collector, non-inverting outputs with six channels. Fast propagation delay of 14 ns at capacitive load. Low supply current of 41 mA optimizes power efficiency. Surface mount SOIC package with compact dimensions.

Standard 74xx TTL logic family compatibility. Operating temperature from 0°C to 70°C for general applications.

Use the Texas Instruments SN7407D for industrial electronics, consumer devices, laboratory instruments, and other equipment requiring reliable signal buffering and line driving capabilities. Explore more products in the Semiconductors category on EnvMart to find compatible components matching your application needs.
