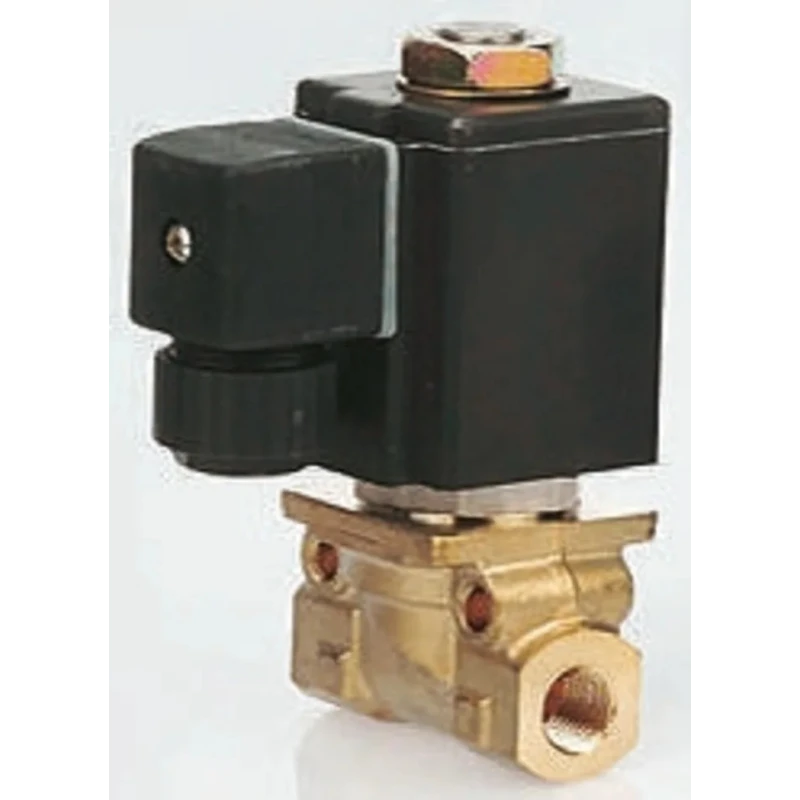

Burkert Solenoid Valve, 2 Port Threaded Brass Body NC 110V AC, 6.35 mm 023897

Burkert 023897 solenoid valve is a high-quality 2 port electro-mechanical valve designed for controlling fluid flow in industrial and laboratory applications. It operates on a 110V AC supply and features normally closed (NC) operation for fail-safe performance.

Constructed with a durable brass body and PTFE seal, this valve withstands aggressive fluids such as alcohols, fuel, gases, hydraulic oils, solvents, steam, and water. The valve incorporates a heat-resistant epoxy encapsulated coil providing reliable electrical performance and durability.

Port sizes are threaded and measure 6.35 mm with female inlet and outlet connections conforming to G thread standards. Its compact Series 255 design allows installation flexibility, including a 360° rotatable three-pin DIN connector rated IP65 for protection against dust and water ingress.

The valve is rated for a maximum operating pressure of 12 bar, with fluid temperature capabilities up to 180°C, suitable ambient temperature range is up to 55°C. The valve opens and closes rapidly, with maximum times of 20 ms and 30 ms respectively, ensuring precise flow control.

This valve's orifice diameter is 4 mm and it provides a flow factor (Kv) of 0.5 m³/h, making it ideal for use in various industrial fluid handling systems such as HVAC, chemical processing, water treatment, and automated machinery.

Equipped with epoxy encapsulated coil for heat resistance and durability. Brass body and PTFE seal for chemical and thermal resistance. Threaded, female inlet and outlet ports sized 6.35 mm with G thread standard. Normally closed operation suited for fluid isolation in power failure scenarios.

Maximum operating pressure of 12 bar and fluid temperature up to 180°C. Quick response with 20 ms max opening and 30 ms max closing times. Compact Series 255 design with rotatable IP65 rated DIN connector. Application versatility with fluids including steam, water, gases, and hydrocarbons.

Burkert solenoid valves are widely used in industrial automation, fluid power systems, laboratory automation, and manufacturing equipment. This robust solenoid valve provides reliable operation in harsh environments where precise fluid control is crucial.

Explore similar industrial valves and Solenoid Valve solutions at EnvMart for your fluid power and automation needs.
