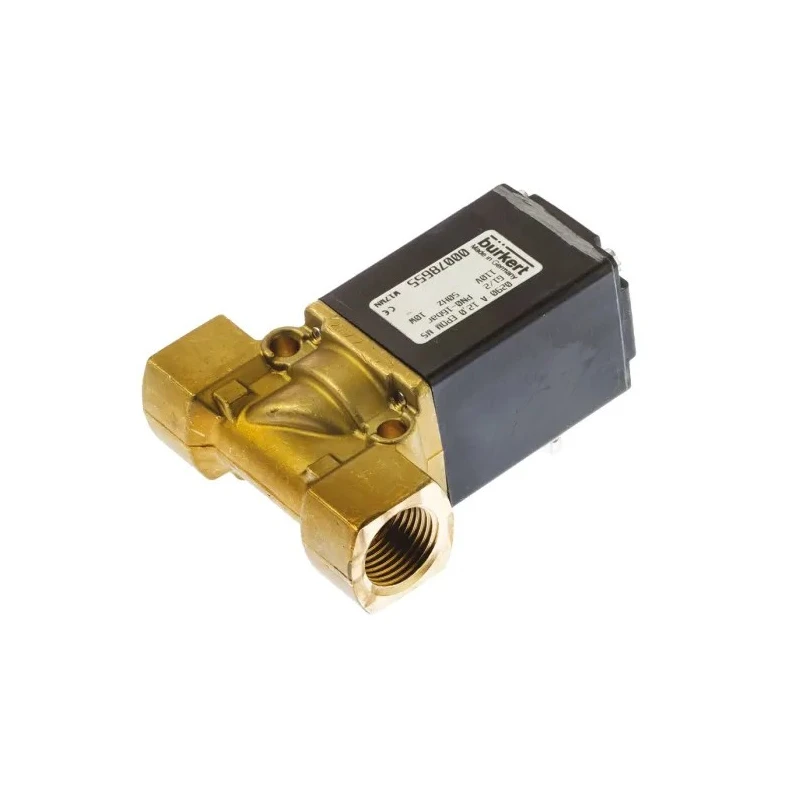

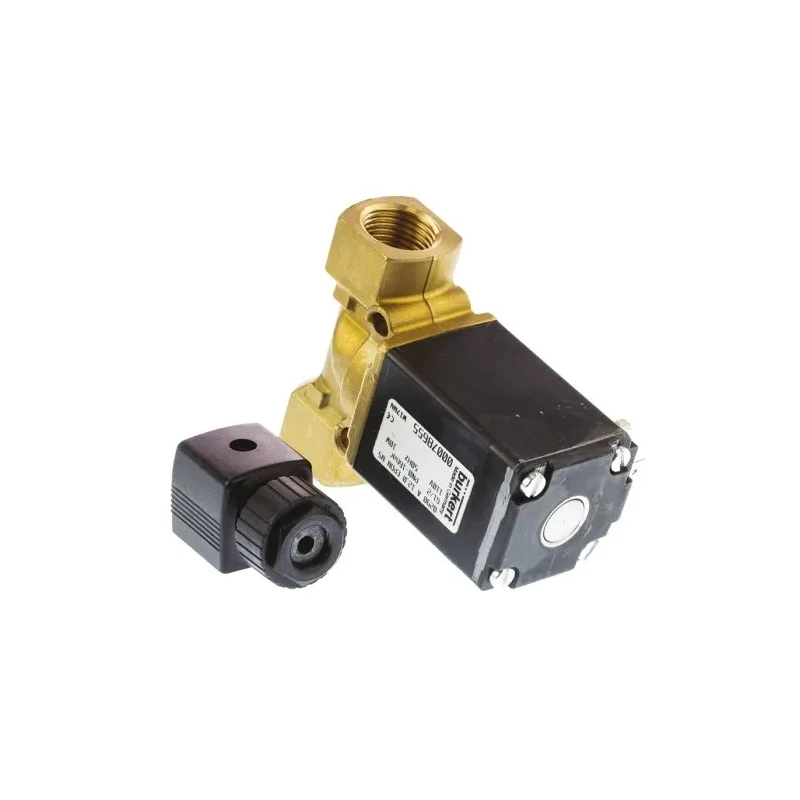

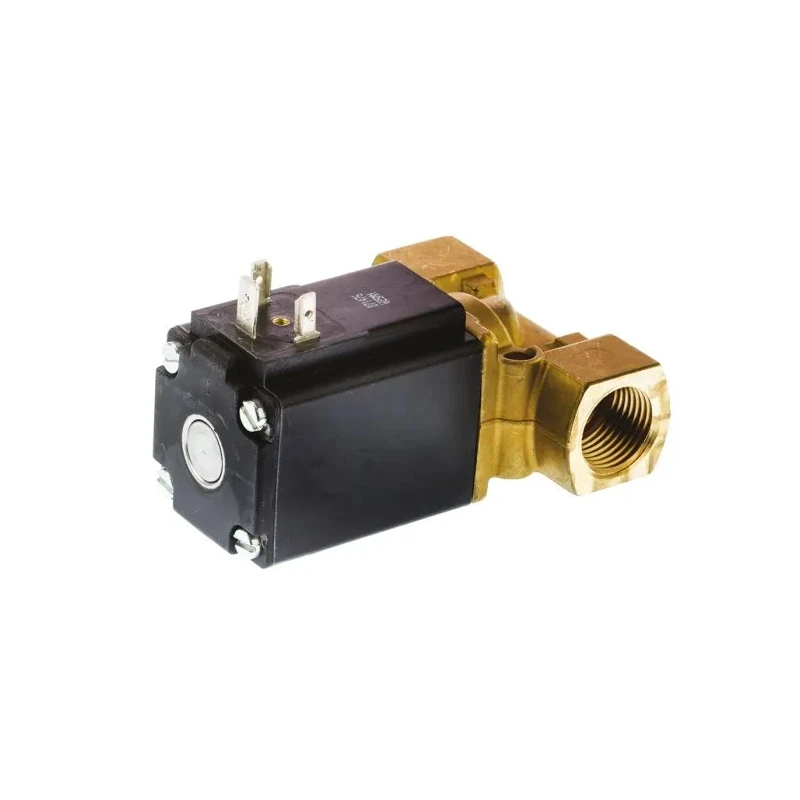

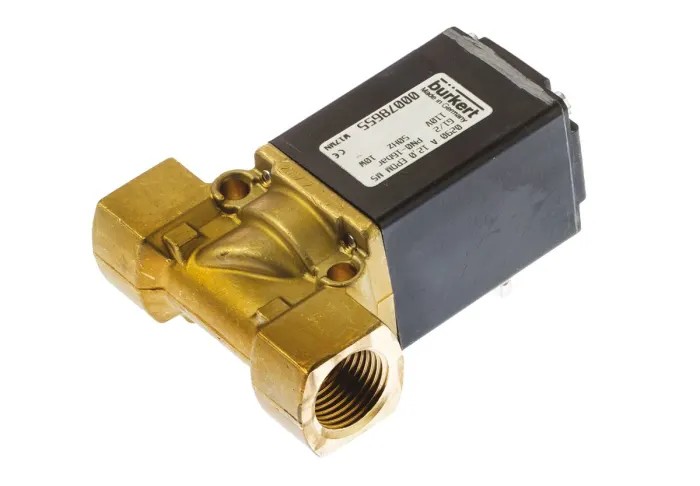

Burkert Solenoid Valve 2 Port NC, 110V AC, 1/2 in Brass Body, 16 bar Max Pressure 078655

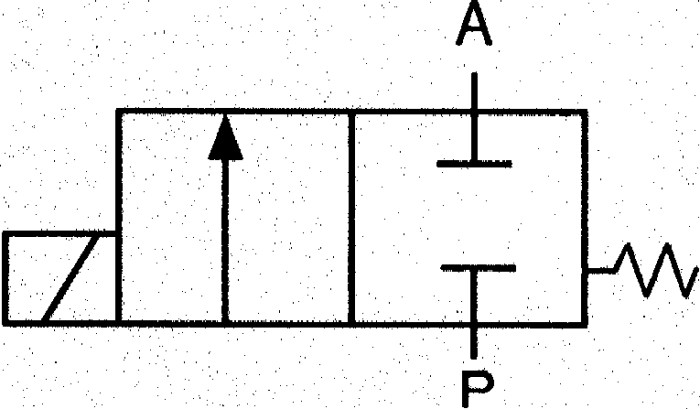

Burkert 078655 is a high-quality solenoid valve featuring 2 ports and normally closed (NC) operation, designed for use in gas and liquid fluid power applications. This valve operates at 110V AC voltage with a 1/2 inch female threaded outlet port size. The brass construction body enhances durability and corrosion resistance in industrial environments.

It incorporates a servo-assisted diaphragm with a damped design for quiet and gentle valve closing, using a fixed coupling diaphragm to plunger, which enables a 'soft-kick' start that is gentle on the materials it controls. The valve operates without differential pressure, making it suitable for diverse application requirements.

The maximum operating pressure is rated at 16 bar, while it works reliably within temperature ranges up to 55°C. The valve's maximum opening time is 250 milliseconds and maximum closing time is 2000 milliseconds, enabling precise control of fluid flow.

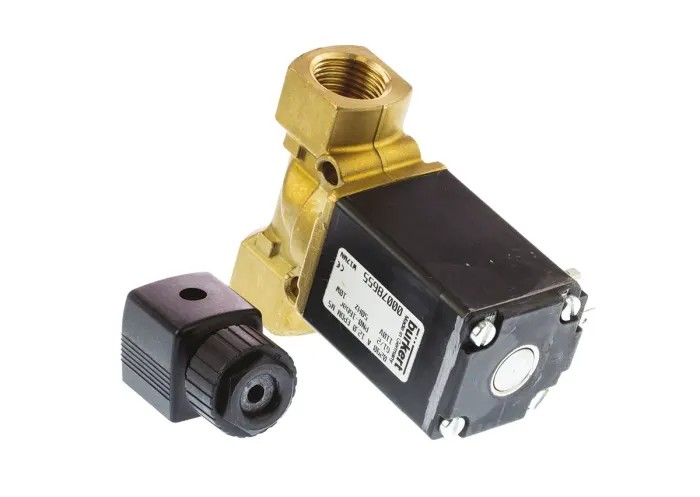

The valve has an orifice diameter of 12 mm and a flow coefficient (Kv) of 2.8 m³/h, providing optimal flow control with zero head pressure capability. It features a rotatable 3-pin DIN connector that can be positioned through 360° in 90° increments for flexible electrical connection in installations.

This solenoid valve is ideal for domestic water supplies and neutral, oil-free fluids and gases. Molded electronics reduce electrical power consumption in DC variants, and it is IP65 rated and WRC approved for reliability and safety.

Operates at 110V AC supply voltage. 2 port normally closed configuration. Brass body construction for durability. Maximum pressure 16 bar. Operating temperature up to 55°C. Quick opening and closing times of 250ms and 2000ms respectively.

12 mm orifice diameter with Kv of 2.8 m³/h flow factor. 3-pin DIN connector adjustable in 90° increments. Soft-kick function for gentle operation. Manufactured in Germany ensuring premium quality.

This Burkert solenoid valve is well-suited for industrial, commercial, and domestic plumbing, fluid control, HVAC, and water treatment systems. Its design supports energy efficiency and operational reliability, making it a trusted choice for precise fluid handling applications. Explore additional Solenoid Valves and components in the Industrial Valves & Valve Fittings category at EnvMart.
