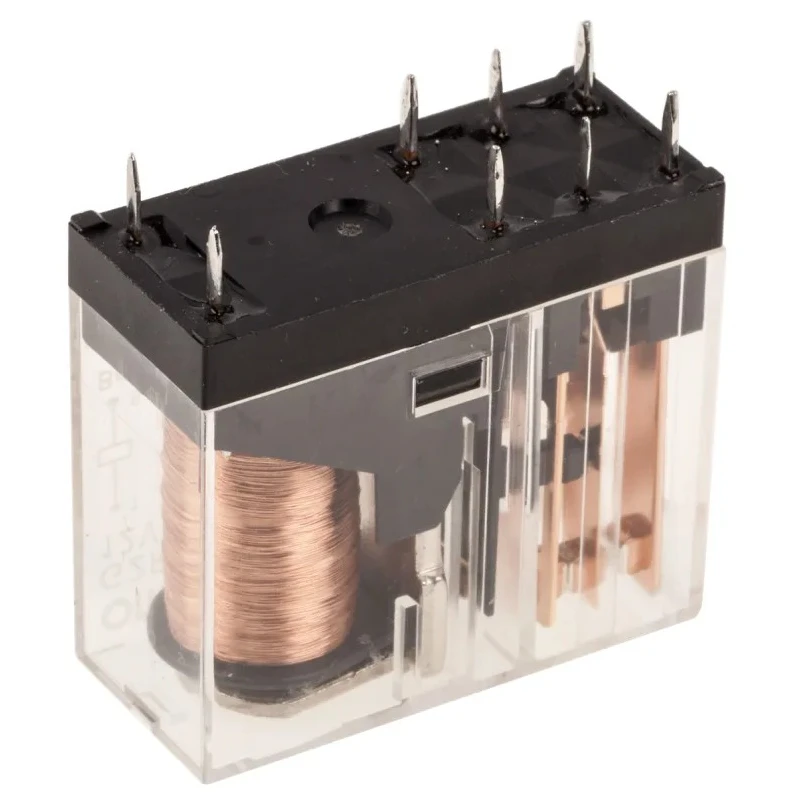

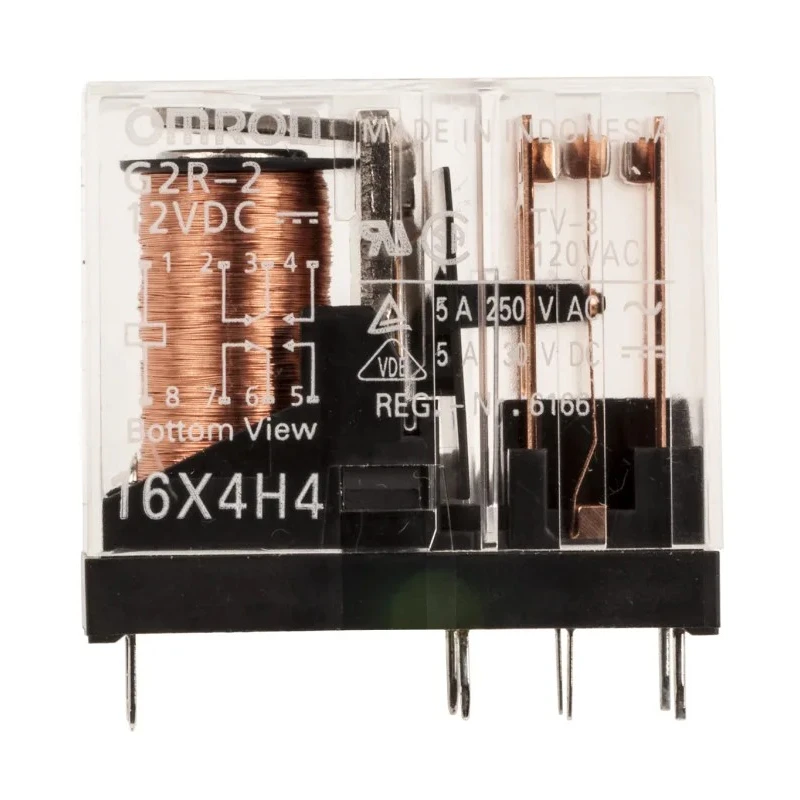

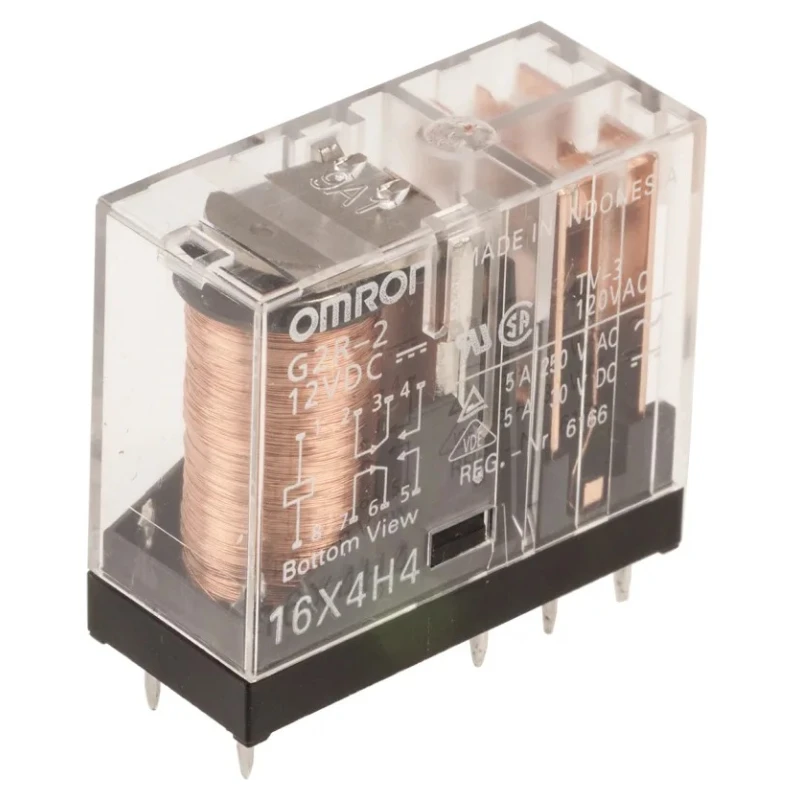

Omron PCB Power Relay 12V DC Coil 5A Switching Current DPDT G2R-2 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-2 DC12 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Omron PCB Mount Non-Latching Relay, 12V dc Coil, DPDTBrand | Omron |
Key Features
- Standard capacity non-latching PCB terminal relay suitable for general-purpose applications.
- 12V DC coil voltage with 275Ω coil resistance ensures efficient coil operation.
- Double Pole Double Throw (DPDT) contacts supporting 5A switching current.
- Offers excellent dielectric strength and surge resistance with 5000 V between coil and contacts.

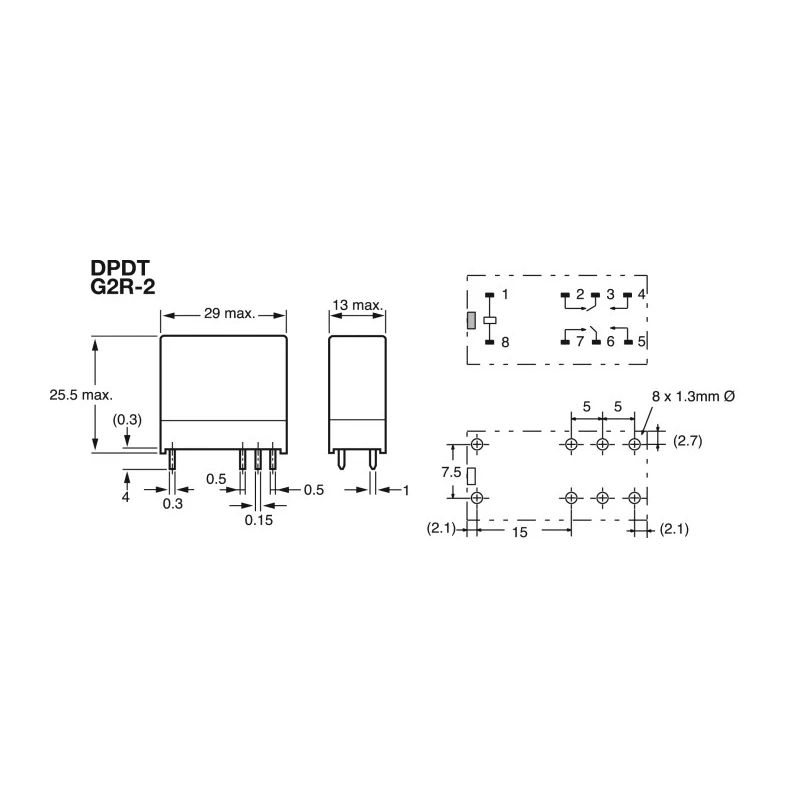

- Compact dimensions of 25.5mm height, 13mm width, and 29mm length for PCB mounting.
- Operating temperature range from -40°C to 70°C ensures durability in harsh environments.
- Contact material made of silver alloy for superior conductivity and reliability.
- Complies with RoHS standards for environmental safety.
Product Description
Omron G2R-2 DC12 PCB Power Relay is a high-quality 12V DC coil relay designed for efficient switching operations in industrial and commercial applications. This double pole double throw (DPDT) relay is built for reliability and durability, with a standard capacity non-latching configuration and PCB mount terminals.
The relay coil operates at 12V DC with a coil resistance of 275Ω, drawing 43.6 mA current. It provides excellent electrical isolation with a dielectric strength of 5000 V between the coil and contacts, along with a surge resistance capability of 10000 V. The switching current rating is 5A with a switching power of 1.25 kVA. The relay contacts are made of silver alloy ensuring high conductivity and long service life.
With compact dimensions of 25.5 mm in height, 13 mm in width, and 29 mm in length, this relay is optimized for PCB mounting in various electrical and automation devices. It operates reliably across a wide temperature range from -40°C to 70°C, with a contact resistance as low as 30 milliohms for efficient current flow.
The relay meets RoHS environmental compliance standards and withstands physical stresses, including vibration and shock, making it suitable for use in demanding industrial, laboratory, manufacturing, electrical automation, and commercial systems.
Standard capacity non-latching relay with PCB terminal mounting. Double Pole Double Throw (DPDT) contact configuration supports versatile switching. 12V DC coil voltage with 275Ω coil resistance for low power consumption.
High dielectric strength of 5000 V ensuring safe isolation. Robust silver alloy contacts with low contact resistance of 30mΩ. Operating temperature range from -40°C to 70°C ensures wide usability. Compact footprint suitable for PCB mounting in electronic assemblies.
RoHS compliant, environmentally safe Power Relay.
This Omron G2R-2 DC12 relay is ideal for applications in power management, automation control, electrical switching circuits, and other industrial uses requiring reliable and efficient relay performance. It is widely compatible with industrial automation and control systems, HVAC applications, electrical panels, and instrumentation setups.
Explore more high-quality relays and electrical components on EnvMart for your industrial and commercial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It has a switching current rating of 5A.
This relay has compact dimensions of 25.5 mm in height, 13 mm in width, and 29 mm in length.
The relay features a Double Pole Double Throw (DPDT) contact configuration.
The coil resistance is 275Ω.
The maximum operating temperature is 70°C.
The contacts are made of silver alloy, which ensures high conductivity.
It has a dielectric strength of 5000 V between the coil and contacts.
The minimum operating temperature is -40°C.
This relay complies with RoHS standards for environmental safety.
It is designed for PCB mounting with solder terminals.
The relay supports a switching power of 1.25 kVA.
