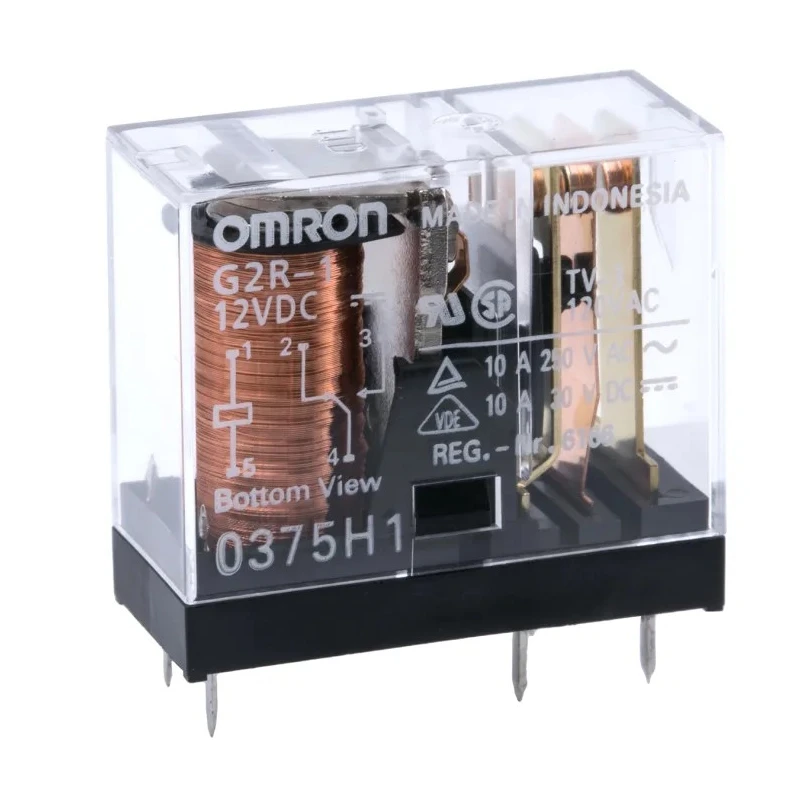

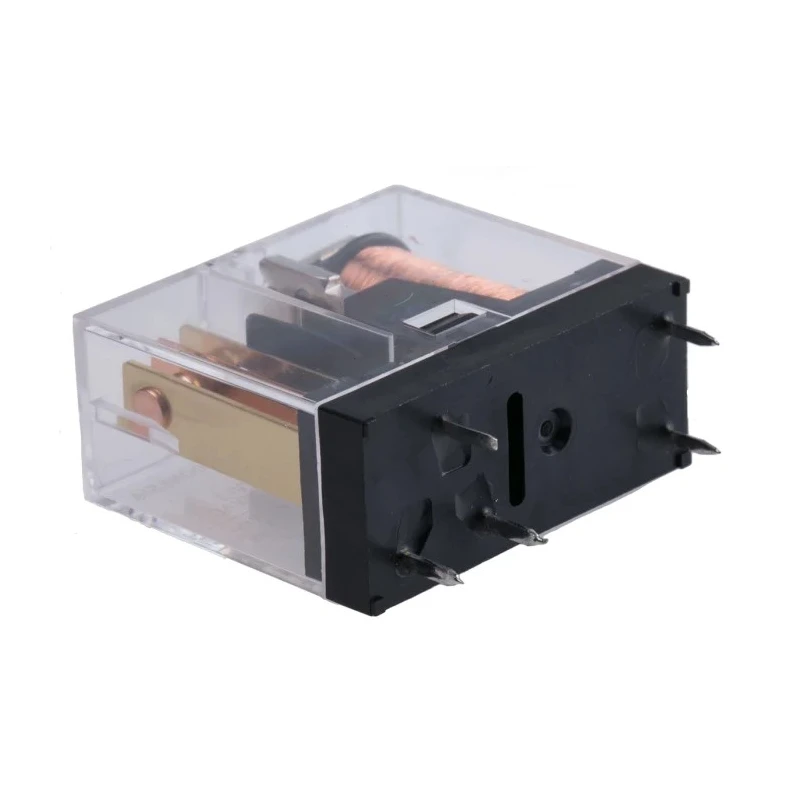

Omron PCB Power Relay 12V DC Coil 10A Switching Current SPDT G2R-1 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1 DC12 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
Key Features
- This relay features a single pole double throw (SPDT) contact configuration suitable for AC and DC applications.
- Coil voltage rating is 12 volts DC with coil resistance of 275 ohms ensuring efficient operation.
- It supports switching currents up to 10 amperes and switching voltages of 125V DC and 440V AC.

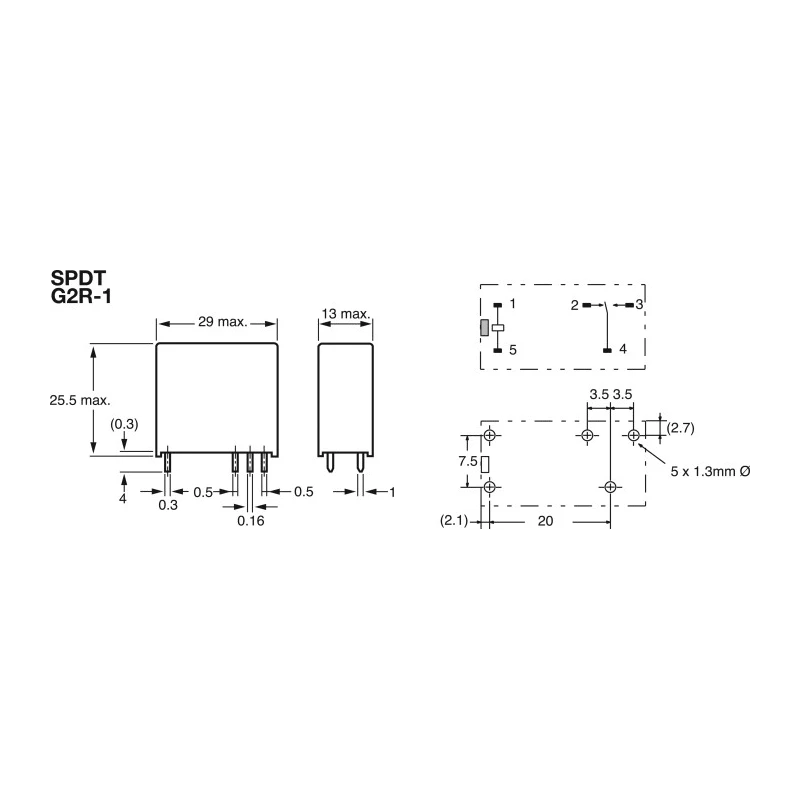

- Compact PCB mounting design with solder terminals measuring 29mm length, 13mm width, and 25.5mm height.
- Durable silver alloy contact material with maximum contact resistance of 30 milliohms to ensure low signal loss.
- Operating temperature range from -40°C to 70°C makes it suitable for diverse environmental conditions.
- Compliant with RoHS standards and designed for high dielectric strength and surge resistance.
Product Description
Omron G2R-1 DC12 PCB Power Relay is a non-latching, general purpose power relay designed for use in industrial, commercial, and domestic automation and control systems. Featuring a 12V DC coil voltage and a single pole double throw (SPDT) contact configuration, this relay reliably switches currents up to 10 amps with switching voltages of 125V DC and 440V AC, making it versatile for various electrical applications.
The compact relay is designed for PCB mounting with solder-type terminals, measuring 29mm in length, 13mm in width, and 25.5mm in height. Its silver alloy contacts provide superior conductivity and durability with a maximum contact resistance of 30 milliohms. Coil resistance is rated at 275 ohms, with a coil power consumption of 0.53VA, ensuring efficient operation.
The relay operates reliably in a wide temperature range from -40°C to 70°C and is engineered with robust vibration and shock resistance properties for industrial environments. Compliance with RoHS directives guarantees environmentally safe materials and processes.
Additional features include flux protection and a dielectric strength of 5000 V between coil and contacts, providing excellent safety and surge resistance up to 10,000 V to safeguard connected circuits. This relay is ideal for use in power switching, signal conditioning, automation equipment, HVAC controls, manufacturing machinery, and electrical distribution systems.
This product is RoHS compliant ensuring environmentally friendly manufacturing standards. Compact and reliable PCB terminal relay designed for general-purpose applications. High dielectric strength and surge resistance provide enhanced operational safety.
Wide operating temperature range supports use in varied industrial and commercial settings. Durable silver alloy contacts and low contact resistance optimize electrical performance. Suitable for AC/DC circuit switching with SPDT contact configuration.
Can be integrated into industrial control panels and automation systems.
Omron branded Power Relays like the G2R-1 DC12 model are recognized for quality and robustness in electrical and electronic system designs. Browse our Electronics & Electricals category for additional relay products and related automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 12 volts DC.
It can handle a maximum switching current of 10 amperes.
The dimensions are 29mm in length, 13mm in width, and 25.5mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The contact material is silver alloy, which provides good conductivity.
It operates within a temperature range from -40°C to 70°C.
The maximum contact resistance is 30 milliohms.
The relay supports switching voltages of 125V DC and 440V AC.
It is designed for PCB mounting with solder-type terminals.
Yes, it is compliant with RoHS standards, ensuring environmentally safe materials and processes.
The coil resistance is rated at 275 ohms.
This relay is suitable for power switching, signal conditioning, automation equipment, HVAC controls, and electrical distribution systems.
