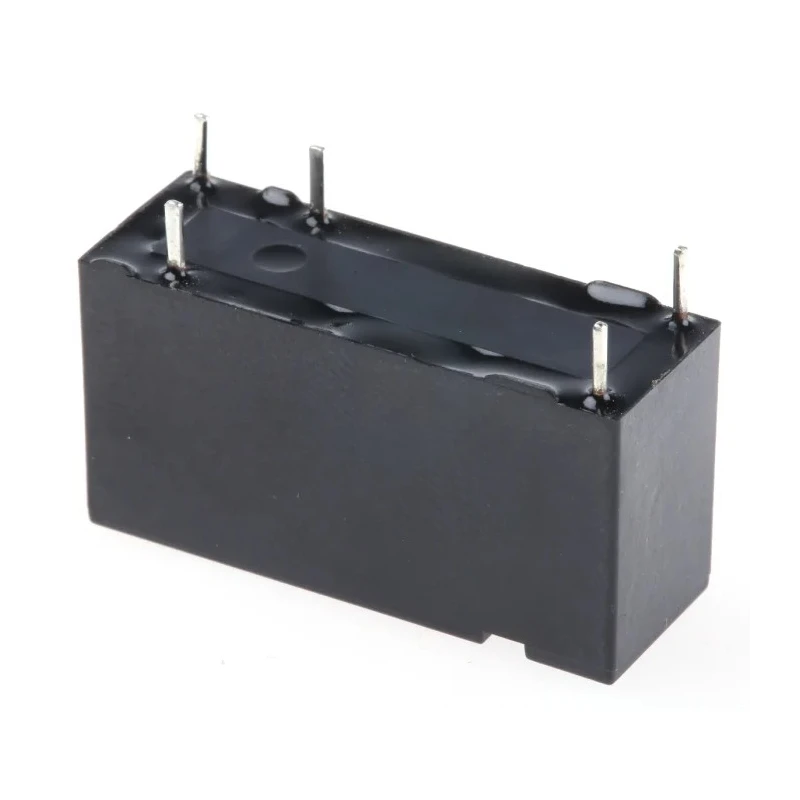

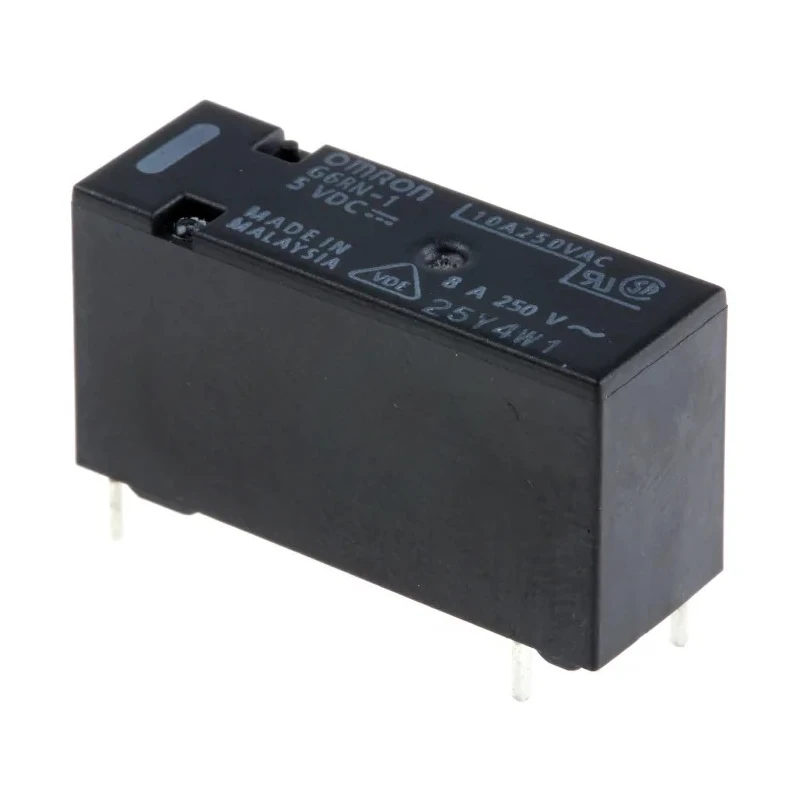

Omron PCB Power Relay 5V DC Coil 8A Switching Current SPDT G6RN-1 5DC
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Operating Temperature | -40 → +85°C |
| Height | 15.3mm |
| Length | 28.8mm |
| Model | G6RN-1 5DC |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6RN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Mechanical Life | 10 x 106 |
| Coil Resistance | 114Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 220mW |
| Minimum contact load | 100mA @ 5mVdc |
| OMRON G6R-1 PCB RLY 5VDCBrand | NEUTRAL |
Key Features
- Operates with 5V DC coil voltage and supports 8A switching current.
- SPDT contact configuration for flexible circuit control.
- Compact PCB mounting with solder terminals.
- Gold plated contacts with low 100mΩ resistance.
- Wide operating temperature range from -40°C to 85°C.
- Fully sealed design with 8mm creepage for safety.
- Mechanical lifespan of 10 million operations.
- RoHS compliant and meets IEC, CENELEC & VDE standards.
Product Description
Omron G6RN-1 5DC PCB Power Relay is a precision-engineered electrical relay designed for reliable power switching applications in electronic and industrial systems. It features a 5V DC coil voltage and SPDT (Single Pole Double Throw) contact configuration, enabling efficient and flexible control of circuits.
The relay supports a maximum switching current of 8A, suitable for moderate power loads and is capable of handling switching AC voltages up to 250V AC and DC voltages up to 30V DC. Its coil resistance is 114Ω with a coil power of only 220mW, ensuring low power consumption during operation.

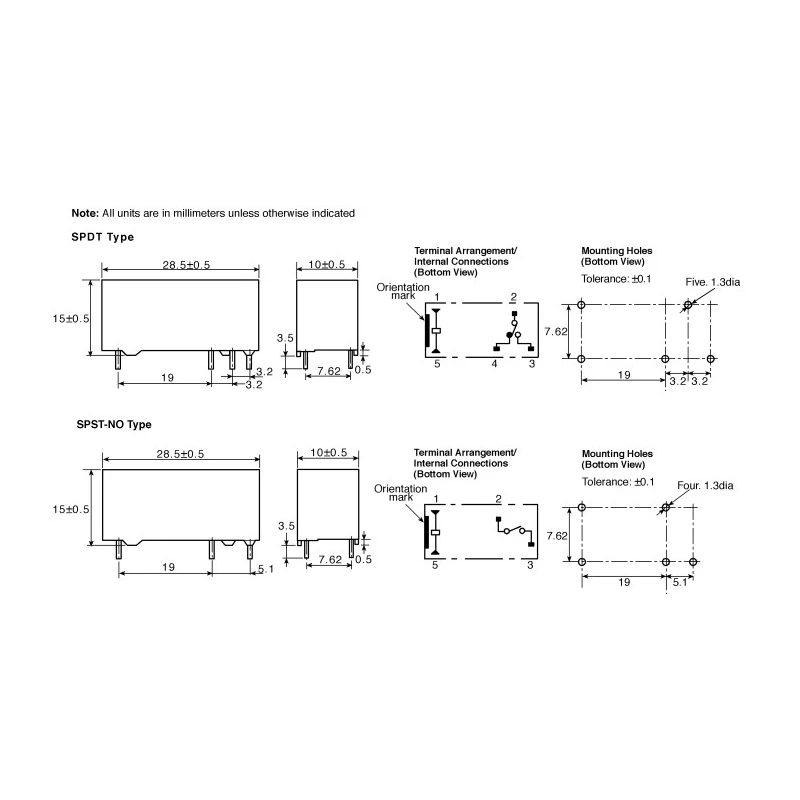

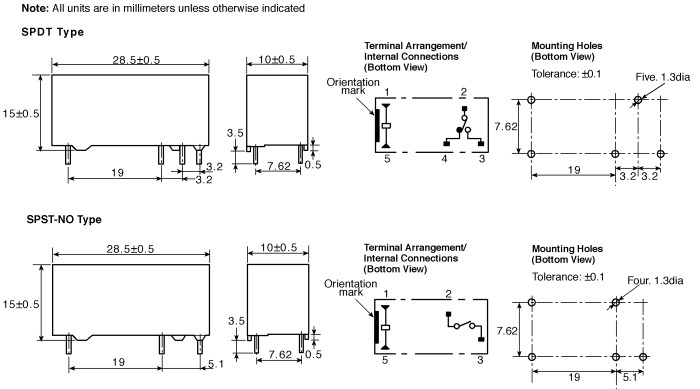

The compact design with dimensions 28.8mm in length, 10.5mm in width, and 15.3mm in height make it ideal for PCB mounting and integration in space-constrained assemblies. Solder terminals facilitate firm and reliable connections.
Gold plated contact material reduces contact resistance (approximately 100mΩ) and enhances electrical reliability while the fully sealed construction offers protection against dust and contaminants. Operating temperature range from -40°C to 85°C makes it suitable for harsh industrial and automation environments.
This relay has a high mechanical life expectancy of 10 million cycles, ensuring long-term durability and dependable performance. It also meets international standards including RoHS compliance, IEC, CENELEC and VDE approvals, guaranteeing safety and environmental standards.
Operates with 5V DC coil voltage and supports 8A switching current. SPDT contact configuration for flexible circuit control. Compact PCB mounting with solder terminals. Gold plated contacts with low 100mΩ resistance. Wide operating temperature range from -40°C to 85°C.
Fully sealed design with 8mm creepage for safety. Mechanical lifespan of 10 million operations. RoHS compliant and meets IEC, CENELEC & VDE standards. Suitable for industrial, automation, and electrical applications. Explore the extensive range of reliable Power Relays and other electronic components available on EnvMart for your industrial and electrical project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 8A.
This relay features an SPDT (Single Pole Double Throw) contact configuration, allowing flexible circuit control.
The dimensions are 28.8mm in length, 10.5mm in width, and 15.3mm in height.
It operates within a temperature range of -40°C to +85°C.
This model uses solder terminals for secure connections.
The contact resistance is approximately 100mΩ.
The mechanical lifespan is rated at 10 million operations.
It is RoHS compliant and meets IEC, CENELEC, and VDE standards.
The coil resistance is 114Ω.
It can handle switching AC voltages up to 250V AC and DC voltages up to 30V DC.
The relay is manufactured in Malaysia.
