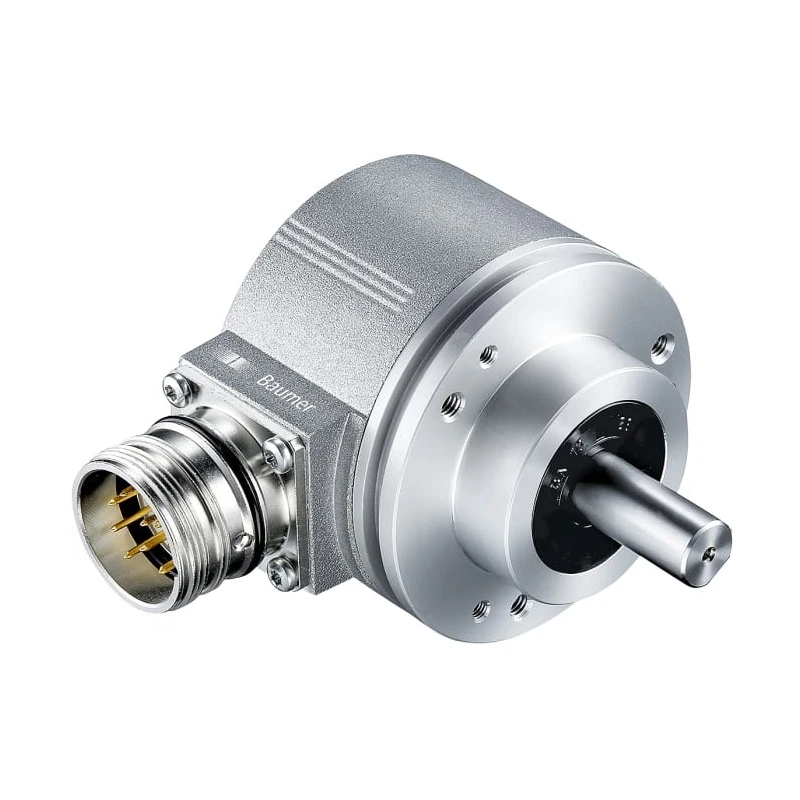

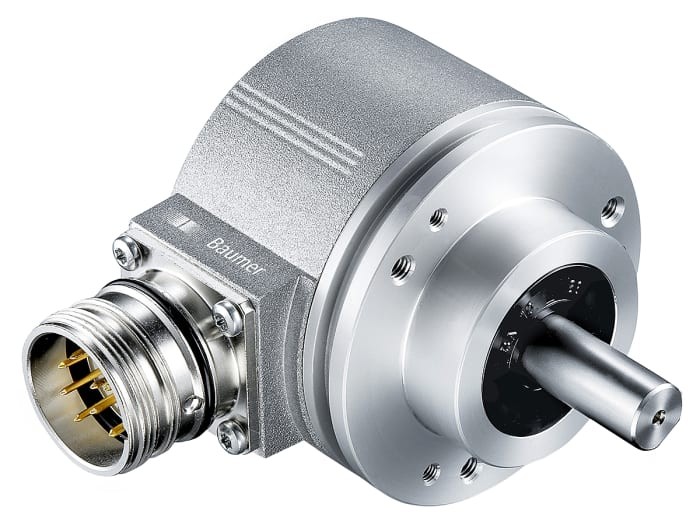

Baumer Optical Incremental Encoder EIL580 Series 30V, 2048 ppr, Push Pull HTL Signal, Solid Shaft 10 EIL580-SC10.5FN.02048.A

Baumer EIL580-SC10.5FN.02048.A Optical Incremental Encoder is a high-performance sensor designed for precision motion control applications. It utilizes optical encoder technology to provide 2048 pulses per revolution, ensuring accurate position feedback in industrial automation systems.

This encoder features a robust solid stainless steel shaft of 10 mm diameter, housed within a durable die-cast aluminium enclosure designed to withstand mechanical shock and vibrations commonly encountered in industrial environments. The device supports Push Pull and HTL output signals, offering flexible interface options to accommodate various control systems.

Operating voltage is up to 30V, making it compatible with a wide range of automation equipment. With an IP65 ingress protection rating, the encoder is well protected against dust and water, suitable for use in harsh conditions. Its compact form factor with dimensions of 58 mm width, 63 mm height, and 48 mm depth allows easy integration into existing machinery setups.

The maximum rotational speed is 12000 rpm, with a switching frequency capability of 300 kHz, supporting fast and responsive motion sensing. Installation is facilitated by a clamp mount type, ensuring secure attachment to shafts. The product operates reliably across a broad temperature range from -40°C to 85°C, accommodating diverse industrial applications from manufacturing to process control.

Manufactured in Germany, this encoder complies with UL standards, underscoring its quality and safety credentials. It is ideal for use in motion control sensor applications requiring precision, durability, and versatile interfacing options.

Equipped with precise optical sensing technology for reliable performance. Features a solid stainless steel shaft with 10 mm diameter for durability. Supports Push Pull and HTL output signal types for versatile interfacing.

Designed with die-cast aluminium housing providing resistance to shock and vibrations. Operates within a supply voltage of up to 30V ensuring compatibility with various systems. IP65 rated for protection against dust and water ingress in demanding environments.

Compact design with dimensions 58 mm width, 63 mm height, and 48 mm depth. Supports maximum rotational speed up to 12000 rpm and switching frequency of 300 kHz. Clamp mount type enables straightforward installation and secure fixation.

Operates reliably in temperature range from -40°C to 85°C for industrial applications. Manufactured in Germany adhering to UL standards for quality assurance. Explore more increments and encoders at EnvMart for industrial and automation needs.
