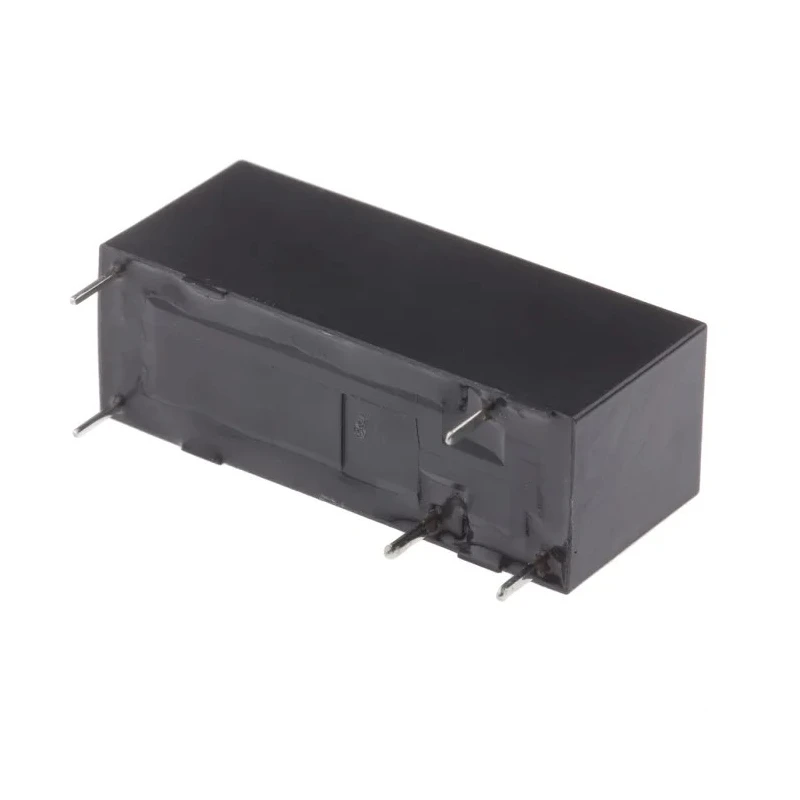

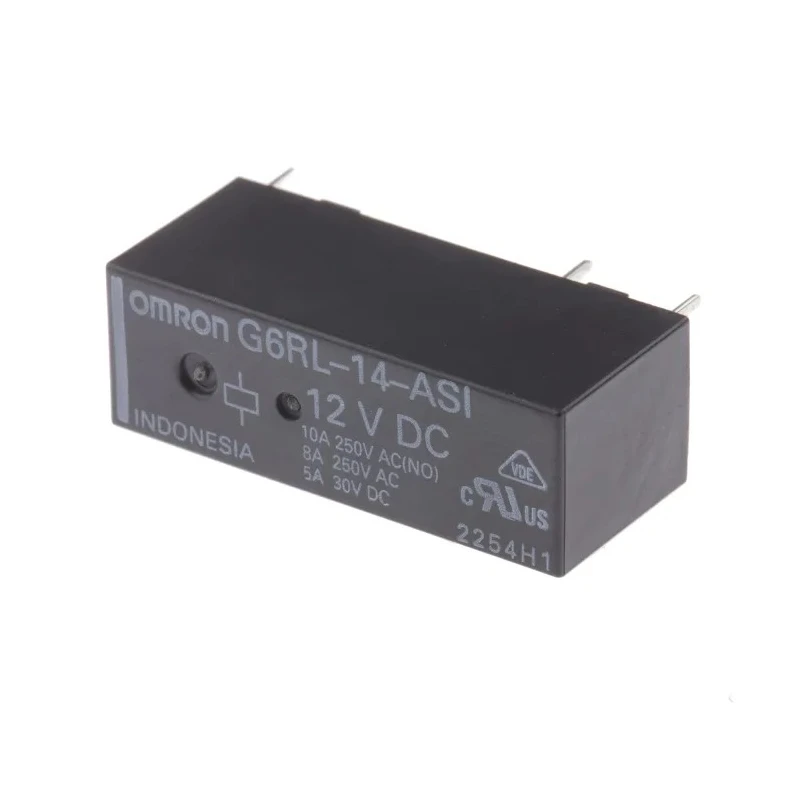

Omron Power Relay PCB Mount SPDT 12V DC Coil 10A Switching Current G6RL-14-ASI DC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-14-ASI DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 654Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 300V ac |
| Coil Power | 220mW |
| Switching Power | 300mW |
| Low coil power consumption | 220mW (typical) |
Key Features
- Equipped with a 12V DC coil voltage.
- Features Single Pole Double Throw (SPDT) contact configuration.
- Designed for PCB mounting with solder terminal type.
- Supports a switching current of 10A with 300V AC/DC voltage ratings.
- Low coil power consumption of approximately 220mW.
- Compact low-profile design with maximum height 12.3mm.
- Operating temperature range from -40°C to 85°C.
- Durable silver alloy contact material for reliable switching.
Product Description
Omron G6RL-14-ASI DC12 power relay is a reliable and compact relay designed for efficient switching applications in electronic and electrical circuits. It features a 12V DC coil and a Single Pole Double Throw (SPDT) contact configuration, making it highly versatile for various industrial and commercial uses.
The relay offers a robust switching current capacity of 10A and supports both AC and DC switching voltages up to 300V. Its low coil power consumption of 220mW reduces energy usage, making it suitable for systems requiring power efficiency.
Its compact low-profile design, with a maximum height of 12.3mm, is ideal for space-constrained PCB mounting applications. The device operates reliably over a wide temperature range from -40°C to 85°C, suitable for harsh operational environments.
The contact material is a silver alloy, ensuring high conductivity and longevity, while the solder terminals facilitate secure mounting on printed circuit boards. This relay complies with UL 508 and CSA approvals, attesting to its quality and safety standards.
Equipped with 12V DC coil voltage for consistent operation. SPDT contact configuration for versatile switching tasks. Low coil power consumption of 220mW for energy efficiency. Compact 12.3mm maximum height for PCB mounting suitability.
Operating temperature from -40°C to 85°C for robust performance. Silver alloy contacts ensure reliable and long-lasting switching. Switching current rated at 10A for medium power applications. Supports switching AC and DC voltages up to 300V.
Complies with UL and CSA standards for safety and reliability.
This Omron Power Relay is ideal for various industrial applications including automation systems, control panels, instrumentation, HVAC control, and other electrical devices requiring reliable switching performance. The low profile design helps integrate it seamlessly into compact PCB designs, maintaining system efficiency and durability.
Explore a comprehensive range of electronic relays and power components at EnvMart for all your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 10A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.

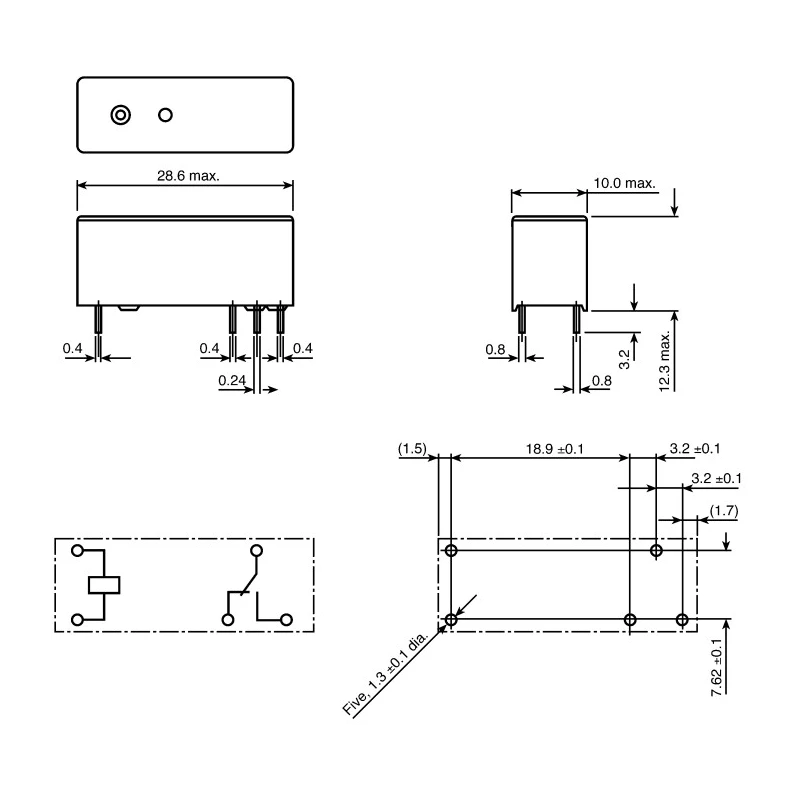

The dimensions are 28.5mm in length, 10mm in width, and a maximum height of 12.3mm.
It operates reliably within a temperature range of -40°C to 85°C.
It is equipped with solder terminals for PCB mounting.
The coil power consumption is approximately 220mW.
It supports switching voltages up to 300V AC and 300V DC.
The contacts are made of silver alloy, ensuring reliable switching.
It complies with UL and CSA standards, attesting to its quality and safety.
The contact resistance is rated at 100mΩ.
The coil resistance is 654Ω.
