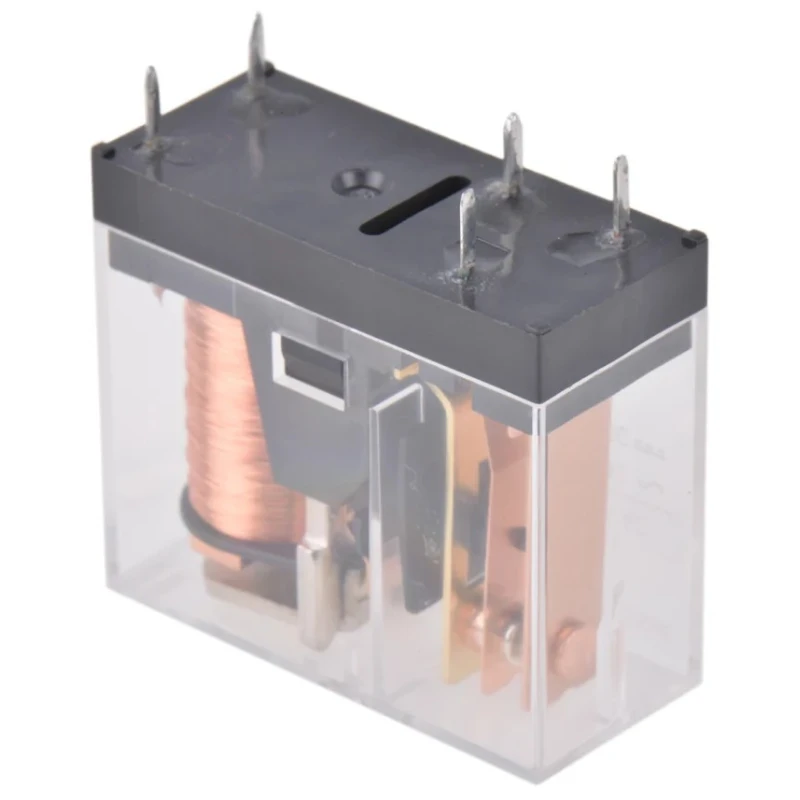

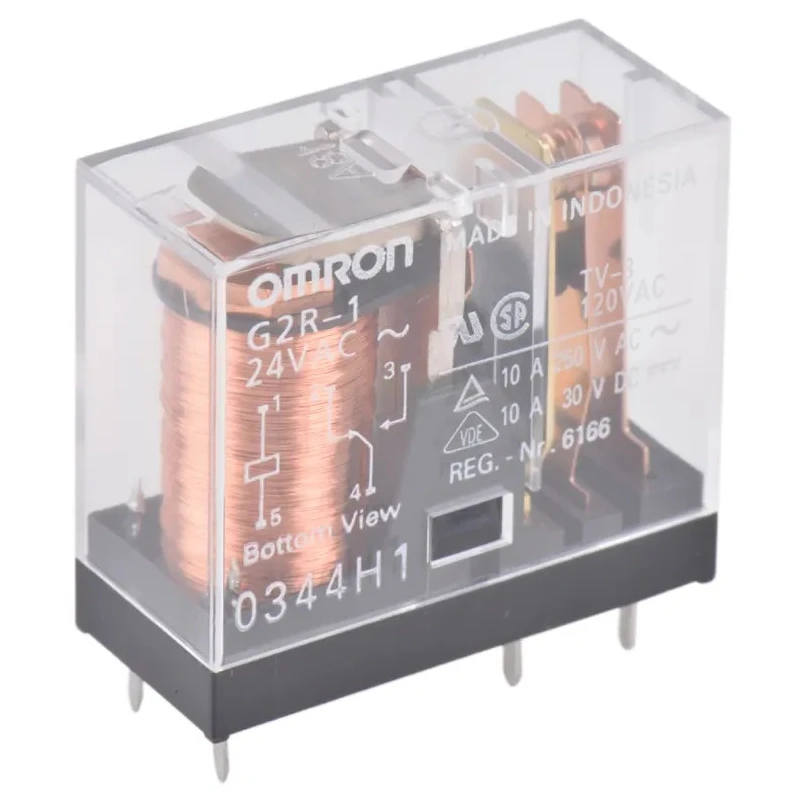

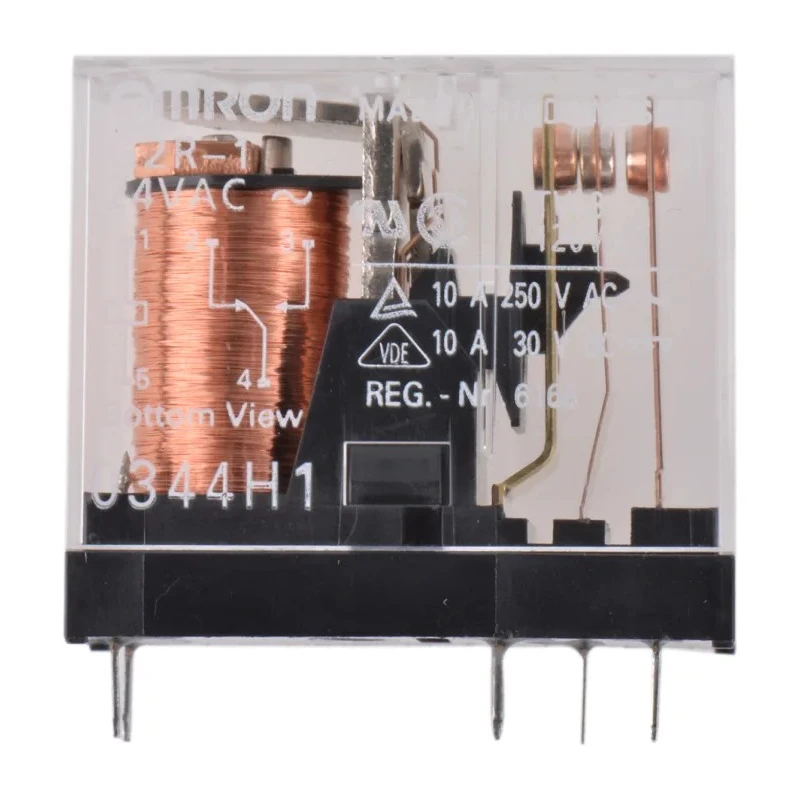

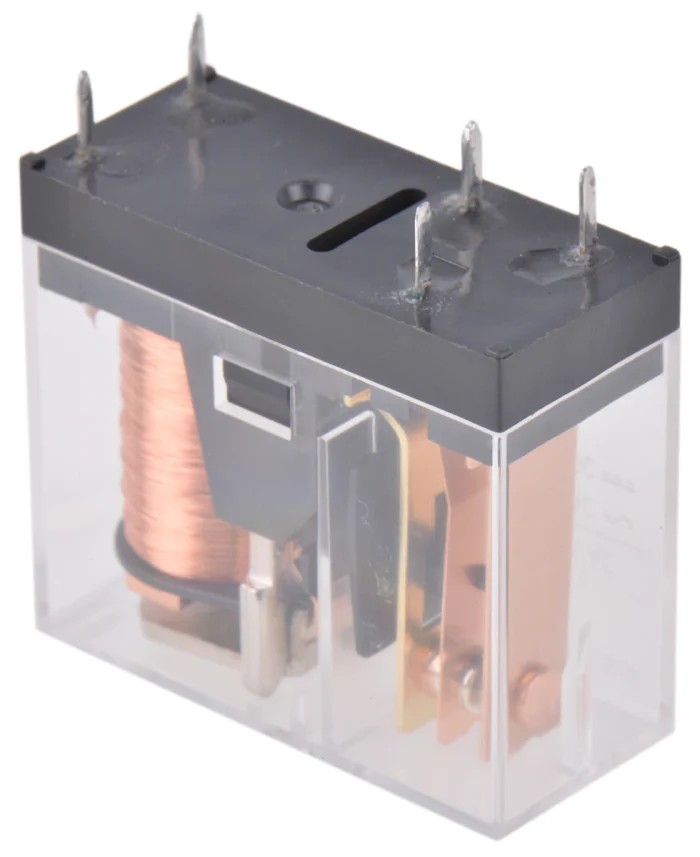

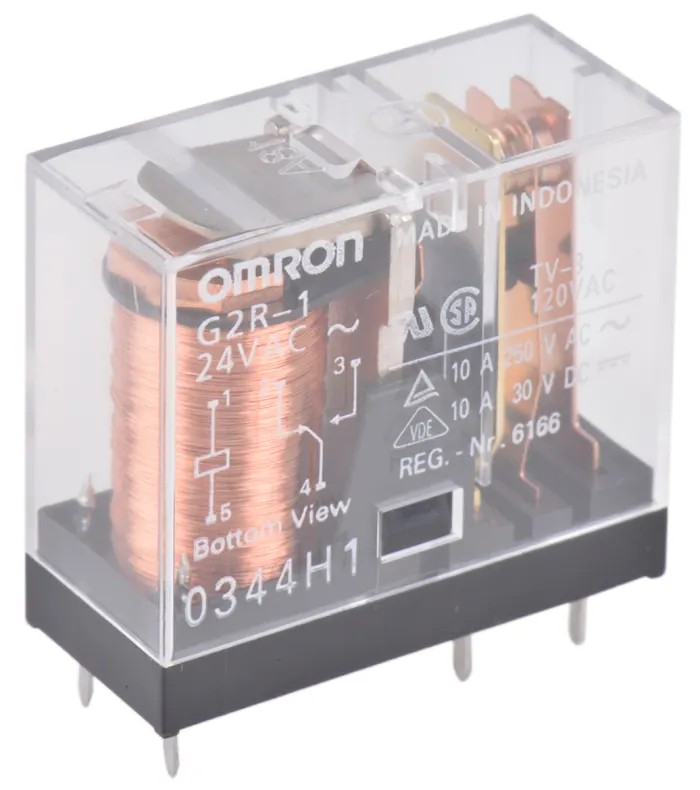

Omron Power Relay PCB Mount SPST 24V AC Coil 10A Switching Current G2R-1 AC24

Omron G2R-1 AC24 power relay is a highly reliable SPST type PCB-mount relay designed for a wide range of domestic and commercial electrical applications. It incorporates a 24V AC coil with a switching current rating of 10A, providing efficient control of electrical loads in automation and power switching circuits.

The relay maintains stable operation across a broad temperature range from -40°C to 70°C, ensuring durability in various industrial environments. With compact dimensions of 25.5 mm height, 13 mm width, and 29 mm length, it integrates seamlessly into PCB layouts without occupying excessive space.

This product features silver alloy contacts that offer excellent conductivity and low contact resistance of 30mΩ, contributing to high switching efficiency and long operational life. It supports switching voltages up to 380V AC and 125V DC, making it suitable for diverse electrical control applications.

The coil power consumption is notably low at 900mW with a coil resistance of 260Ω, reducing energy usage during operation. The plug-in terminal design facilitates easy installation, replacement, and maintenance on printed circuit boards.

Compliant with UL508 and CSA 22.2 safety standards, this power relay meets stringent quality and safety requirements essential for industrial and commercial systems. The 8mm creepage and clearance further ensure safe operation under various electrical conditions.

Designed for general purpose PCB mounting in electrical and automation systems. Operates reliably between -40°C to 70°C for durable performance. Features silver alloy contacts with 30mΩ contact resistance ensuring efficient switching.

Supports switching AC voltage up to 380V and DC voltage up to 125V. Compact dimensions of 25.5 x 13 x 29 mm fit diverse PCB layouts. Coil power consumption is low at 900mW with 260Ω coil resistance. Complies with UL and CSA standards guaranteeing quality and safety.

Silver alloy contact material enhances conductivity and durability. Reliable plug-in terminal type for straightforward installation and maintenance.

This Omron G2R-1 AC24 Power Relay is ideal for industrial, automation, and commercial electrical control applications requiring a reliable, compact PCB-mounted switching solution. Browse EnvMart’s extensive relay category for more options suitable for your automation and power management needs.
