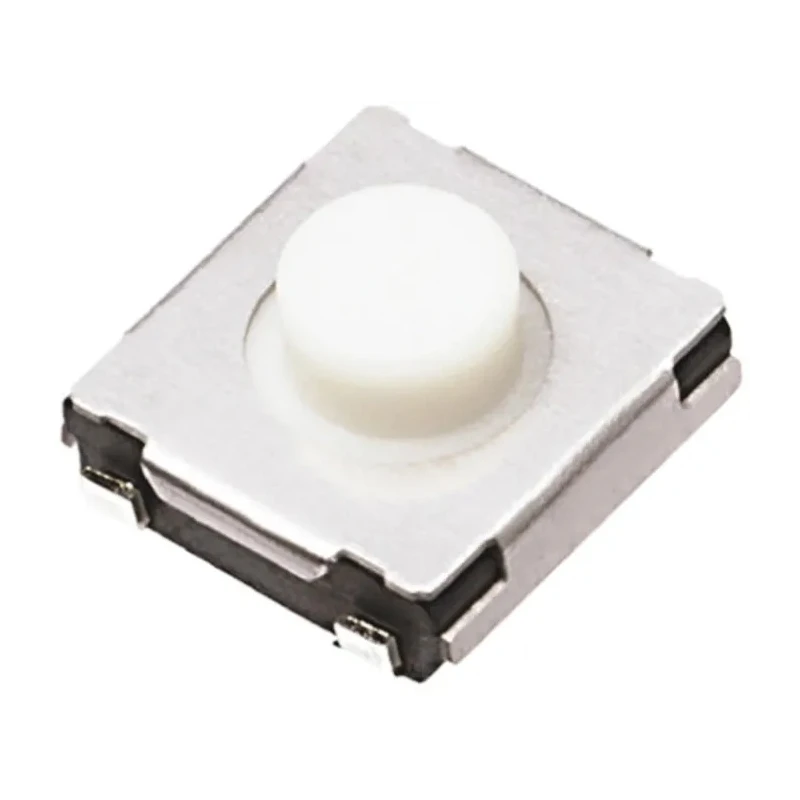

Panasonic White Tactile Switch Push Plate, SPST 20mA 15 V dc, 3.1 mm Actuator Length EVQQ2Y03W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3.1mm |
| Length | 6.6mm |
| Model | EVQQ2Y03W |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 3.1mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 3.5N |
| Mechanical Life | 100000Cycles |
Key Features
- Provides a tactile momentary switch operation with clear, sharp clicking feedback.
- Designed for surface mount mounting type with white push plate actuator.
- Rated for 20mA contact current at 15 V dc for small current applications.
- Compact form factor with dimensions 6.6 mm length, 6 mm width, and 3.1 mm height.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Long mechanical life of up to 100,000 cycles ensuring high reliability.
- Operating force of 3.5N delivers a light touch user experience.
- Compliant with RoHS standards for environmental safety.
Product Description
Panasonic EVQQ2Y03W White Tactile Switch Push Plate is a high-quality momentary switch suitable for electrical, automation, and control applications requiring a compact and reliable tactile switch component. Featuring a SPST contact configuration with normally open contacts, this surface mount tactile switch provides a sharp and clear tactile click response for precision control.
Its actuator has a length of 3.1 mm with a white push plate style, and the switch measures 6.6 mm in length and 6 mm in width with a height of 3.1 mm. Rated for low current of 20mA at 15 V dc, it is ideal for keyboard and keypad switch applications as well as other low power switching tasks.
The switch operates efficiently across a wide temperature range from -40°C to 85°C, making it suitable for use in industrial, commercial, and laboratory environments. It requires an operating force of 3.5N, offering a light and consistent user touch experience. Additionally, the device supports a mechanical life of 100,000 cycles, ensuring durability during frequent actuations.
Designed for surface mount technology, it can be easily integrated into printed circuit boards and assemblies. The switch complies with RoHS standards, contributing to environmentally friendly manufacturing and use.
Provides tactile snap action with clear clicking feedback. Compact surface mount design for flexible PCB integration. SPST contact configuration, normally open. Rated for 20mA contact current at 15 V dc. Operating temperature range from -40°C to 85°C.
100,000 mechanical cycles for long service life. Operating force of 3.5N for light actuation. White push plate actuator with 3.1 mm length. Compliance with RoHS environmental standards.
This tactile switch is suitable for use in a variety of electronics, automation, and industrial applications that require precise and reliable momentary switching. Explore more Tactile Switches and electronic components at EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features an SPST (Single Pole Single Throw) contact configuration with normally open contacts.
It is rated for a contact current of 20mA at a voltage of 15V dc, making it suitable for small current applications.
This model measures 6.6 mm in length, 6 mm in width, and has a height of 3.1 mm.
The operating temperature range is from -40°C to 85°C, allowing it to function in various environments.
It supports a mechanical life of up to 100,000 cycles, ensuring long-term reliability during use.
The switch requires an operating force of 3.5N for actuation, providing a light touch user experience.
This model is designed for surface mount technology, facilitating easy integration into printed circuit boards.
Yes, it complies with RoHS standards, contributing to environmentally friendly manufacturing.
The actuator style is a push plate, and it features a white actuator color.
It is suitable for electrical, automation, and control applications, especially in keyboard and keypad switch tasks.
The terminal type for this model is surface mount, which is compatible with various PCB designs.
This tactile switch belongs to the EVQQ2 series, which includes a range of similar tactile switches.
