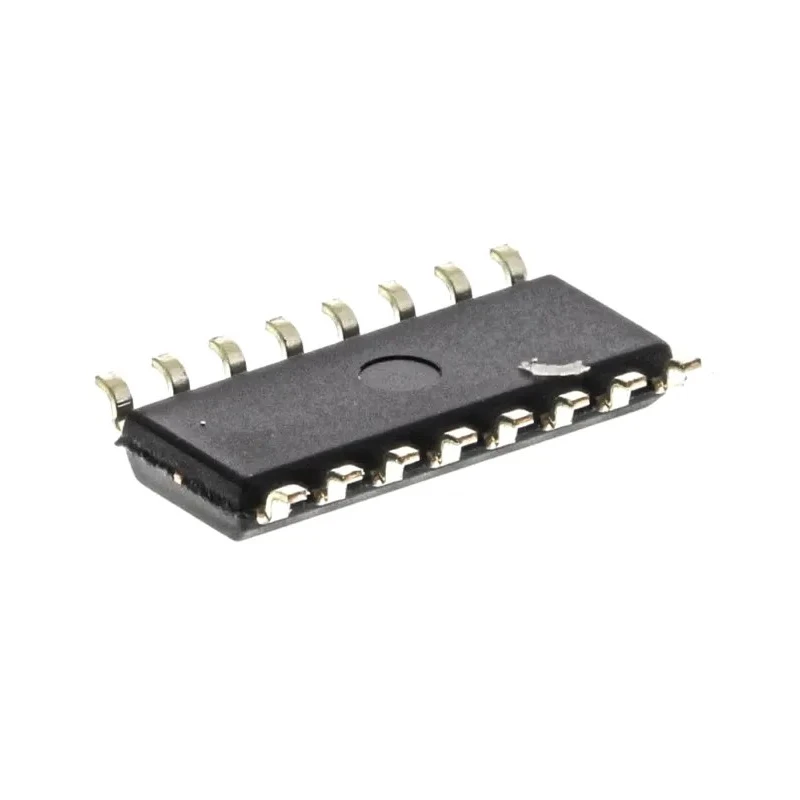

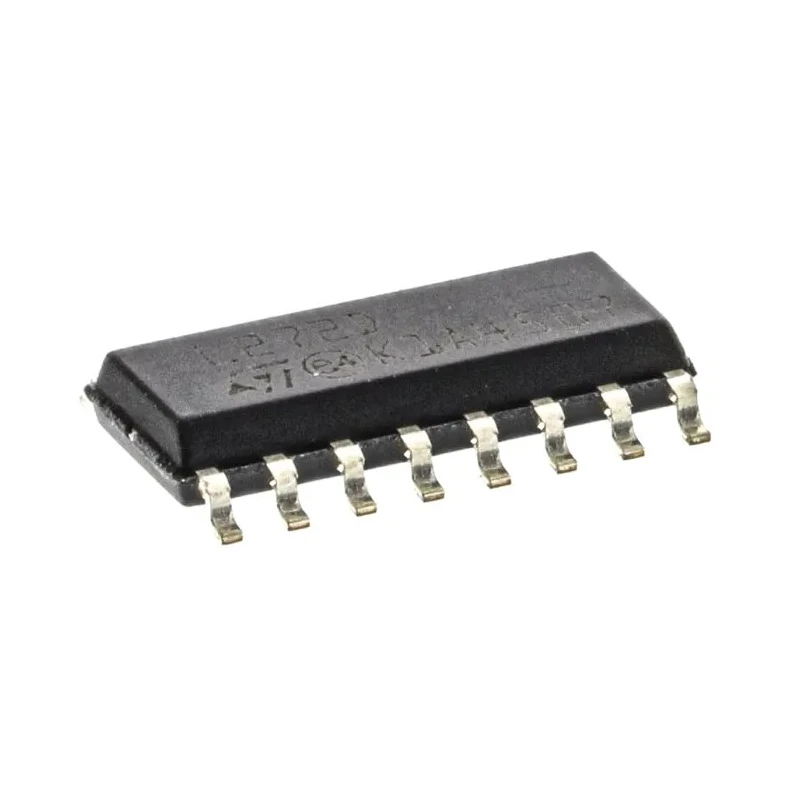

STMicroelectronics Dual Power Operational Amplifier, 350 kHz Gain Bandwidth, 16-Pin SOIC Package, 5-28V L272D

STMicroelectronics L272D is a dual power operational amplifier engineered to deliver high gain and high output power, housed in a 16-pin SOIC surface mount package. Operating with a supply voltage range from 5V to 28V, it provides reliable performance suitable for a variety of industrial and laboratory applications including servo amplifiers and power supplies.

This amplifier boasts a gain bandwidth product (GBP) of 350 kHz, enabling efficient and accurate signal amplification. Its low input bias current of 2.5 μA and input offset voltage of 60 mV contribute to precision in signal processing tasks. The device supports output currents up to 1 ampere, allowing it to drive demanding loads effectively.

Designed for robust operation, the L272D operates across a wide temperature range from -40°C to 85°C, making it suitable for challenging environments. The slew rate of 1 V/μs ensures the amplifier can manage fast-changing input signals without distortion or delay.

The physical footprint is compact with package dimensions of 10 mm length, 4 mm width, and 1.65 mm height, facilitating ease of integration onto printed circuit boards with surface mount technology. The L272D complies with RoHS environmental standards, ensuring it meets regulatory requirements.

Its typical applications include use in servo amplification systems, power supply control, and other general purpose analog signal amplification in electronic circuits. Although not rated for automotive standards, it is ideal for electronics manufacturing, industrial control, and laboratory instrumentation.

Operates within a voltage range of 5V to 28V. Provides high gain bandwidth of 350 kHz. Low input bias current of 2.5 μA for precision. Compact 16-Pin SOIC surface mount package. Output current capability up to 1A. Wide operating temperature range -40°C to 85°C.

Slew rate of 1 V/μs for fast signal handling. RoHS compliant for environmental safety. Ideal for servo amplifier and power supply applications. Suitable for industrial and laboratory electronics uses. Explore the Operational Amplifier category at EnvMart for more solutions by STMicroelectronics and other leading brands.
