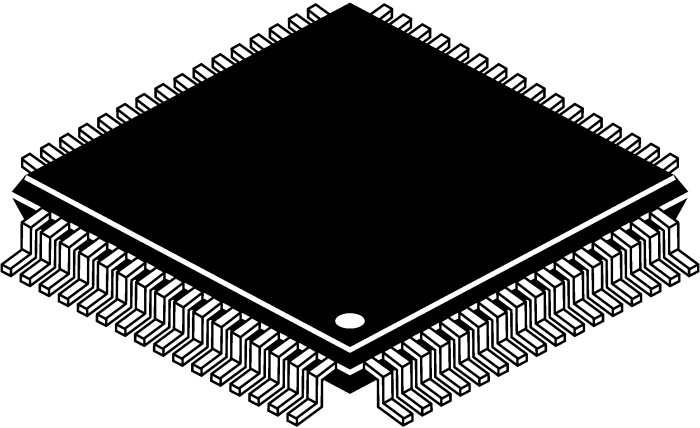

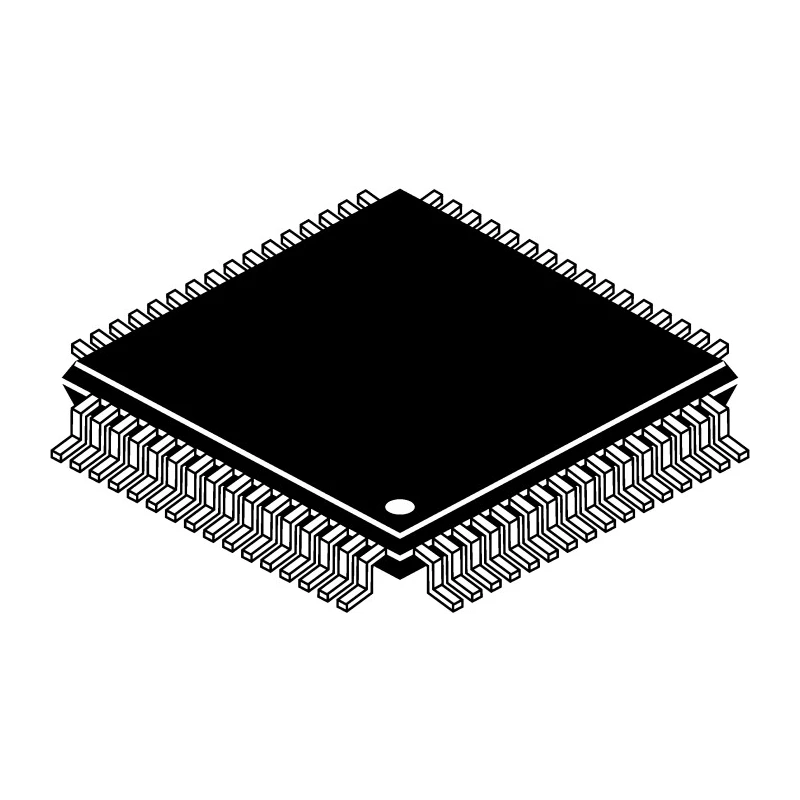

MaxLinear 4-Channel UART Interface IC 64-Pin LQFP Package ST16C554DCQ64-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.6mm |
| Length | 12mm |
| Model | ST16C554DCQ64-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | LQFP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 1.5Mbps |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- Supports 4 independent UART channels for multi-port serial applications.
- Includes 16-bit transmit FIFO and 16-bit receive FIFO buffers for data handling.
- Maximum data rate up to 1.5 Mbps suitable for high-speed communication.
- Surface mount package type LQFP with 64 pins for compact PCB integration.
- Operates at supply voltages from 2.97 V to 5.5 V ensuring compatibility with varied systems.
- Operating temperature range from 0°C to 70°C suitable for commercial applications.
- Physical dimensions include length 12 mm and height 1.6 mm.
- Designed for use in embedded systems requiring UART interface and serial data transfer.
Product Description
MaxLinear ST16C554DCQ64-F is a robust 4-channel UART interface integrated circuit housed in a 64-pin Low-Profile Quad Flat Package (LQFP). It facilitates serial communication by handling asynchronous data transmission and reception efficiently across multiple channels. The device incorporates 16-bit deep FIFO buffers for both transmit and receive operations, enabling smooth data flow without CPU interruptions.
With a maximum data rate of 1.5 Mbps, this UART IC supports high-speed serial communication required in industrial, embedded, and telecommunications applications. It operates on a supply voltage range of 2.97 V to 5.5 V, making it compatible with diverse power domains. The device's operating temperature range is 0°C to 70°C, catering to standard commercial environments.
The compact 64-pin LQFP package with dimensions of 12 mm length and 1.6 mm height allows easy surface mounting on printed circuit boards, suitable for high-density system designs. This component is ideal for system designers and engineers looking to integrate multiple serial ports within embedded systems, industrial communication modules, and control equipment.
Supports 4 UART channels for simultaneous serial data communication. Includes 16-bit transmit and receive FIFO buffers to enhance data throughput and reduce CPU overhead. Maximum serial data rate of 1.5 Mbps supports fast data transfer requirements.
Surface mount LQFP package with a pin count of 64 for compact footprint. Wide supply voltage range from 2.97 V to 5.5 V for versatile power supply compatibility. Commercial temperature operation from 0°C to 70°C ensures reliable performance.
Physical dimensions facilitate easy PCB integration in embedded applications.
This UART IC finds applications in industrial automation, telecommunications equipment, embedded control systems, and any scenario requiring reliable and efficient serial communication.
Explore a wide range of semiconductor Interface ICs on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 1.5 Mbps, suitable for high-speed serial communication.
It supports 4 independent UART channels for simultaneous serial data communication.
The physical dimensions of this unit are 12 mm in length and 1.6 mm in height.
It operates at supply voltages ranging from 2.97 V to 5.5 V, ensuring compatibility with various systems.
This model is housed in a 64-pin Low-Profile Quad Flat Package (LQFP), designed for surface mounting.
The operating temperature range is from 0°C to 70°C, suitable for commercial applications.
Yes, it includes 16-bit transmit and 16-bit receive FIFO buffers to enhance data throughput and reduce CPU overhead.
It is suitable for industrial automation, telecommunications equipment, and embedded control systems requiring reliable serial communication.
The country of origin for this model is India.
It features a surface mount type, facilitating easy integration onto printed circuit boards.
The 16-bit FIFO buffers allow for efficient data handling, enabling smooth data flow without CPU interruptions during transmission and reception.
It supports high-speed communication with a maximum data rate of 1.5 Mbps, making it suitable for applications requiring fast data transfer.
