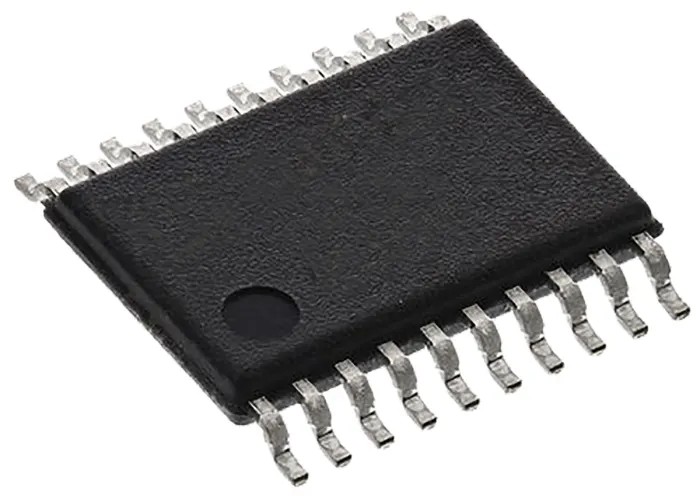

Texas Instruments 8-Bit Transparent Latch with 3-State Output 20-Pin TSSOP SN74HC373PW

The Texas Instruments SN74HC373PW is an advanced 8-bit transparent latch integrated circuit featuring a 3-state output that allows data to be latched and driven onto a bus with high impedance when required. This device belongs to the 74HC family of high-speed CMOS logic ICs, combining low power consumption with fast response times. It operates efficiently within a wide voltage range of 2 to 6 volts and supports a wide temperature range from -40°C up to 85°C, making it suitable for industrial and commercial applications.

Its non-inverting D type latch mode ensures transparent data capture when the enable input is active, providing seamless data flow and control. The 3-state output capability allows the device output driver to be effectively disconnected from the circuit, enabling bus-oriented systems and multiplexing.

The SN74HC373PW comes in a 20-pin Thin Shrink Small Outline Package (TSSOP) designed for surface mounting, allowing for high-density PCB designs and efficient space utilization in embedded electronics.

This latch IC is CMOS compatible on both inputs and outputs, incorporating silicon gate CMOS technology for high-speed operation with low power dissipation compared to equivalent LSTTL devices. The compact form factor with a length of 6.5 mm and height of 1.15 mm further enhances its integration into electronic solutions.

Typical applications include electronic switching systems, bus drivers, data storage registers, and other embedded logic circuits needing reliable latching and bus control. This device is essential for industrial, electronic manufacturing, and laboratory instrumentation environments demanding precision and consistent logic behavior.

Operates at supply voltages between 2 V and 6 V. Features transparent latch mode for easy data management. Includes 3-state outputs for bus control applications. Supports broad temperature range from -40°C to +85°C. Compact 20-pin TSSOP surface mount package.

Compatible with CMOS input and output levels. Utilizes high-speed silicon gate CMOS technology for efficient operation. Dimensions: length 6.5 mm, height 1.15 mm. Part of the 74HC family of logic ICs. Explore more electronic components and semiconductor solutions at EnvMart for your industrial and manufacturing needs.
