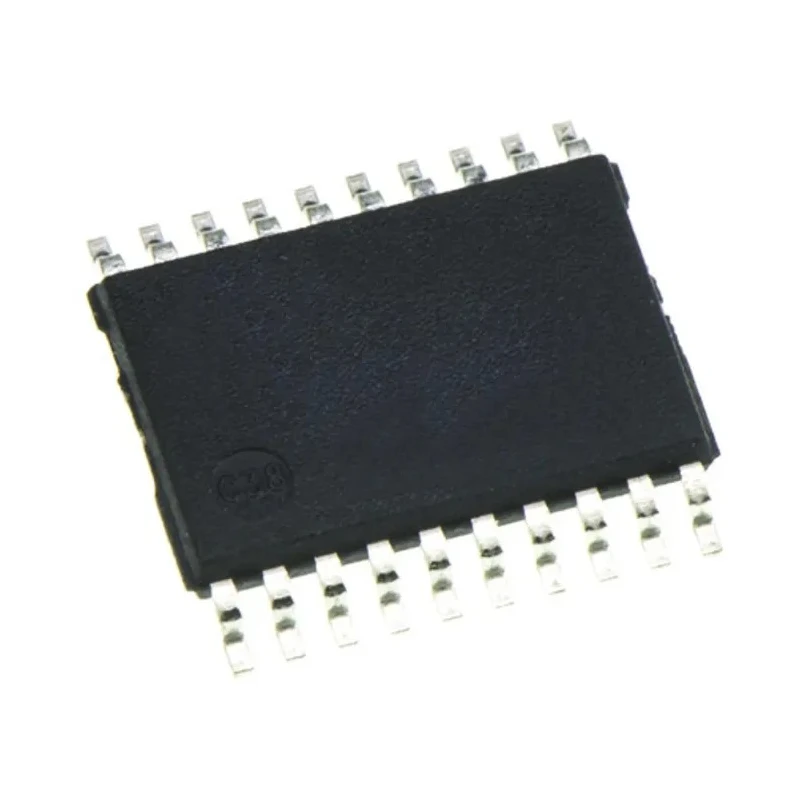

Toshiba 8-Bit Octal D Type Latch Transparent 20-Pin TSSOP 74VHC573FT

Free Delivery in India | Lowest Global Shipping Charges

Toshiba 8-Bit Octal D Type Latch Transparent 20-Pin TSSOP 74VHC573FT

Name: Toshiba 8-Bit Octal D Type Latch Transparent 20-Pin TSSOP 74VHC573FT
Brand: Toshiba
SKU: 233857
Price: 0.24 USD
Availability: InStock



Category Latch ICs Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Height	1mm
Length	6.5mm
Model	74VHC573FT
Mount Type	Surface
Series	74VHC
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Inverting
Number Of Channels	8
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	74VHC
Logic Function	D Type
Minimum Supply Voltage	2V
Latch Mode	Transparent
Number of Bits	8
Balanced propagation delays	tPLH ≈ tPHL

Key Features

The 8-bit D-type latch features transparent latch mode and inverting polarity.
It has a 20-pin TSSOP surface mount package ideal for compact PCB layouts.
Operating supply voltage ranges from 2.0 V to 5.5 V.
The device supports a wide operating temperature range from -40°C to 125°C.
Includes advanced input protection circuits ensuring compatibility with different supply voltages.
High-speed operation up to 180 MHz typical frequency at 5 V supply.
Low maximum power consumption of 4.0 μA at 25°C ambient temperature.
Pin and function compatible with 74 series TTL types for easy integration.

Product Description

Toshiba 74VHC573FT is a high-performance 8-bit octal D-type latch available in a 20-pin TSSOP package. This transparent latch IC employs advanced silicon gate C2MOS technology to achieve high speed comparable to Bipolar Schottky TTL devices, while maintaining the advantages of low power consumption typical of CMOS devices.

The latch features an output enable input that places the outputs in a high impedance state when enabled, enhancing bus interfacing capability. Inputs are protected allowing voltages between 0 V and 5.5 V without damage regardless of supply voltage, facilitating mixed voltage system interoperability such as interfacing 5 V and 3 V logic.

Operating voltage range is from 2.0 V to 5.5 V, with a guaranteed operating temperature range from -40°C to 125°C, making it suitable for a wide range of industrial and automotive environments. The device also complies with the AEC-Q100 automotive standard, ensuring reliability under harsh conditions.

This device's balanced propagation delays (tPLH approx equal to tPHL) and low noise output characteristics ensure stable and reliable system performance. It is pin and function compatible with the common 74 series 573 devices, easing integration into existing designs.

The 8-bit configuration supports simultaneous data latching of multiple channels. Low ICC current with a maximum of 4.0 μA reduces power consumption in standby. High noise immunity with VNIH and VNIL at a minimum of 28% of VCC.

Protected inputs prevent device damage from mismatched supply voltages. Wide operating frequency with typical maximum frequency of 180 MHz at 5 V supply.

This Toshiba 74VHC573FT latch IC is ideal for use in industrial controls, automotive systems, consumer electronics, and embedded computing solutions requiring reliable high-speed data latching with minimal power usage.
