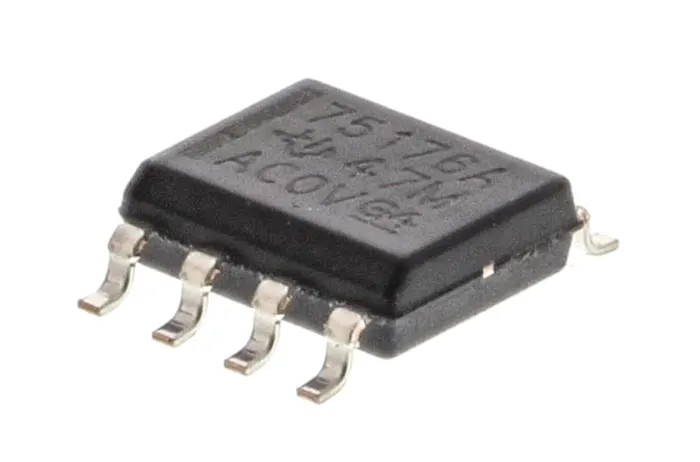

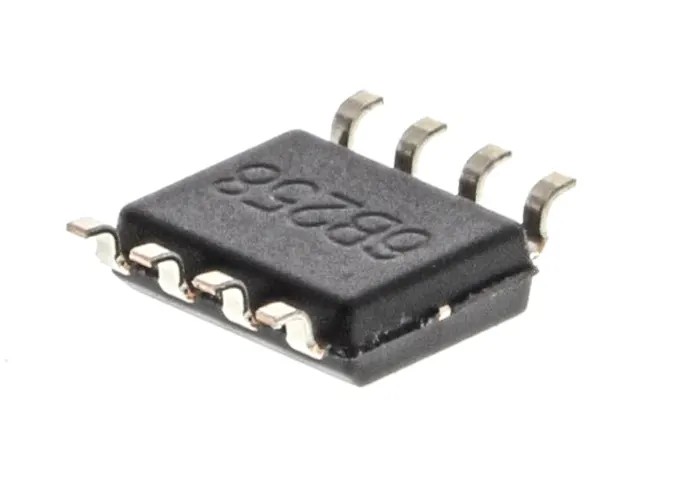

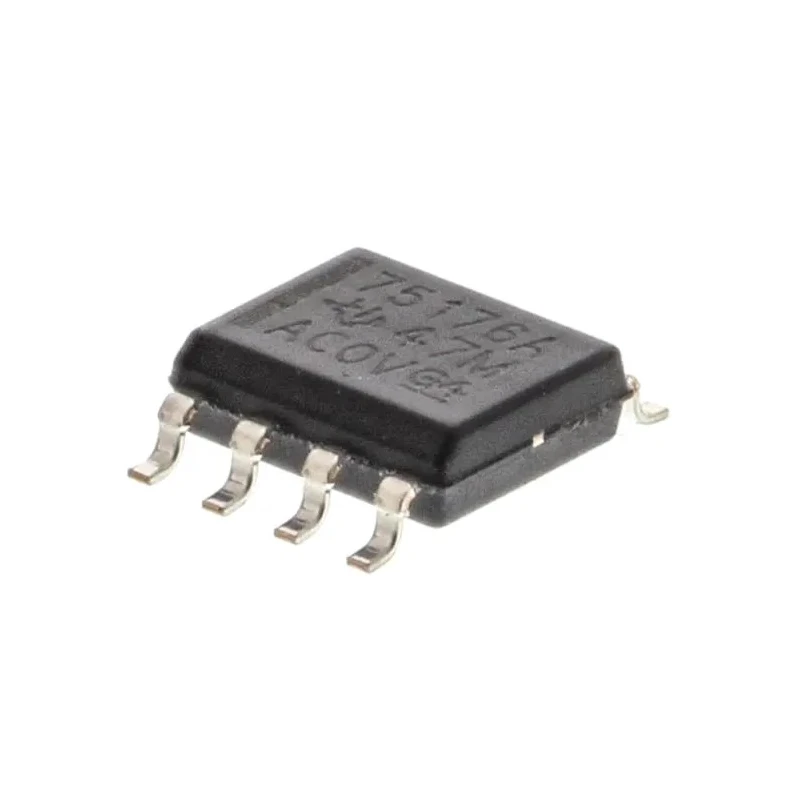

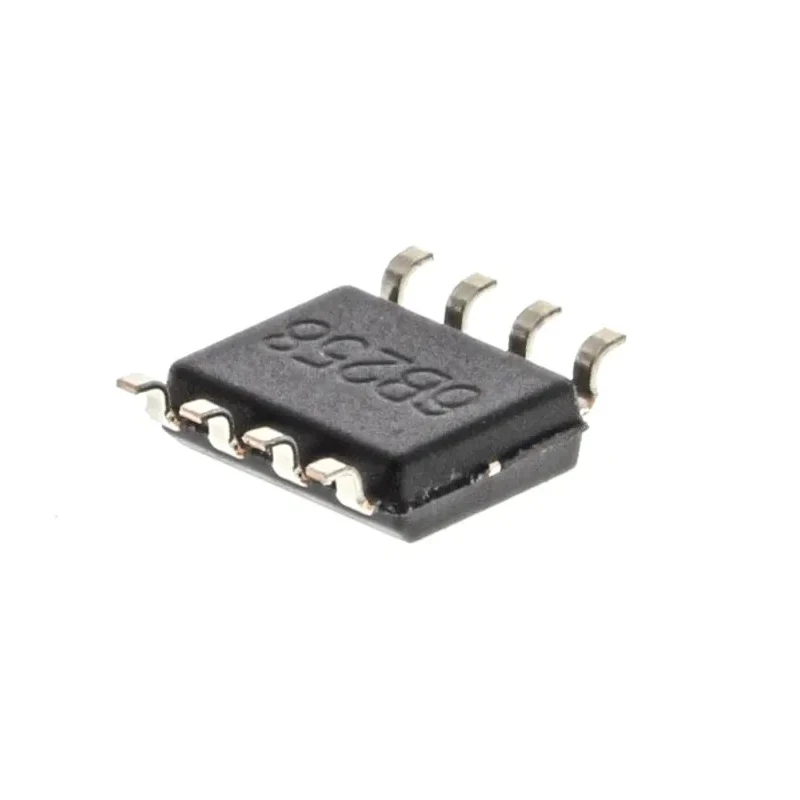

Texas Instruments Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC SN75176ADR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN75176ADR |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 50mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a supply voltage range of 4.75V to 5.25V.
- Features 1 differential channel with non-inverting polarity for bus transceiver applications.
- Maximum propagation delay time of 35 nanoseconds at capacitive load.
- Designed for surface mount technology with a compact 8-pin SOIC form factor.
- Operating temperature range from 0°C to 70°C ensures reliability in typical industrial conditions.
- Supply current consumption is low, approximately 50mA.
- Maximum high-level output current of -60mA and low-level output current up to 60mA.
- Meets RS-422 standard line transceiver specifications for robust communication.
Product Description
Texas Instruments SN75176ADR is a high-performance line transceiver integrated circuit designed for differential, non-inverting data transmission in industrial and electronic communication systems. With a single channel differential input/output and dedicated bus transceiver logic family (SN75), this IC supports robust serial communication meeting RS-422 standards.
The device operates reliably within a supply voltage range of 4.75V to 5.25V, supporting a wide range of applications requiring stable logic levels. It is housed in an 8-pin SOIC surface mount package offering compact and efficient PCB layouts. Maximum propagation delay time of 35ns ensures fast signal switching for timely data exchange.
Engineered to withstand operating temperatures between 0°C to 70°C and deliver up to -60mA high-level output and 60mA low-level output currents, this line transceiver suits various industrial and laboratory equipment needing reliable signal integrity. Its low supply current draw of 50mA contributes to power-efficient system designs.
Its physical dimensions of length 5mm, width 3.98mm, and height 1.75mm make it suitable for compact electronics requiring surface mount technology. Although not automotive rated, the IC fits standard line interface applications and is widely used in test instruments, industrial communication networks, and embedded electronic systems.
Operates on 4.75V to 5.25V supply voltage. Single-channel differential bus transceiver functionality. Low propagation delay for fast communication at 35ns. Compact 8-pin SOIC surface mount package. Operating range from 0°C to 70°C.
Maximum output currents of ±60mA. 50mA supply current for power efficiency. Physical size supports compact PCB designs. Complies with RS-422 line transceiver standards. Ideal for industrial, laboratory, and communication system applications.
This Texas Instruments line transceiver SN75176ADR is a dependable component for engineers specifying compact, fast, and reliable differential communication ICs in demanding industrial machine, instrumentation, and electronic subsystem environments.
Explore our extensive category of semiconductor interface ICs and line transceivers for more technical solutions at EnvMart.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN75176ADR operates with a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time for this model is 35 nanoseconds at capacitive load.
It has a maximum high-level output current of -60mA and a low-level output current of up to 60mA.
The operating temperature range for the SN75176ADR is from 0°C to 70°C.
This model is housed in an 8-pin SOIC surface mount package.
It supports differential input and output, functioning as a non-inverting bus transceiver.
The typical supply current consumption is approximately 50mA.
This unit belongs to the SN75 logic family.
The dimensions are 5mm in length, 3.98mm in width, and 1.75mm in height.
It is suitable for industrial communication networks, test instruments, and embedded electronic systems.
Yes, it meets RS-422 standard line transceiver specifications for robust communication.
This model is designed for surface mount technology.
