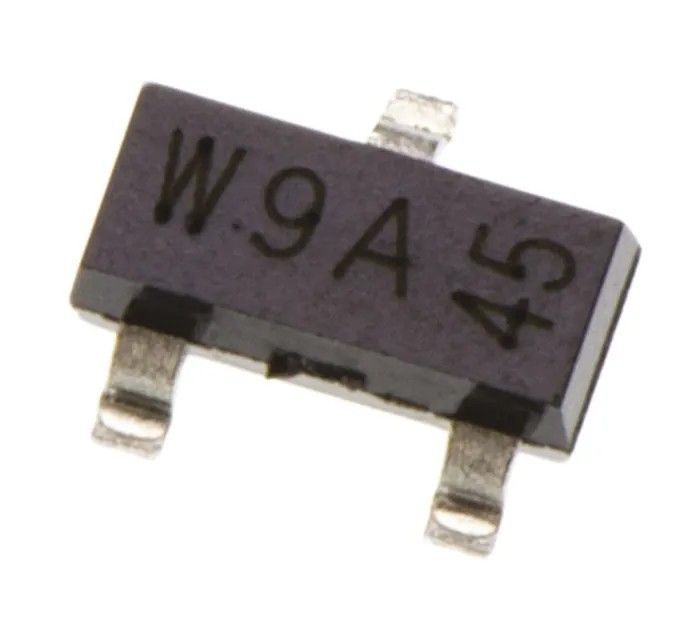

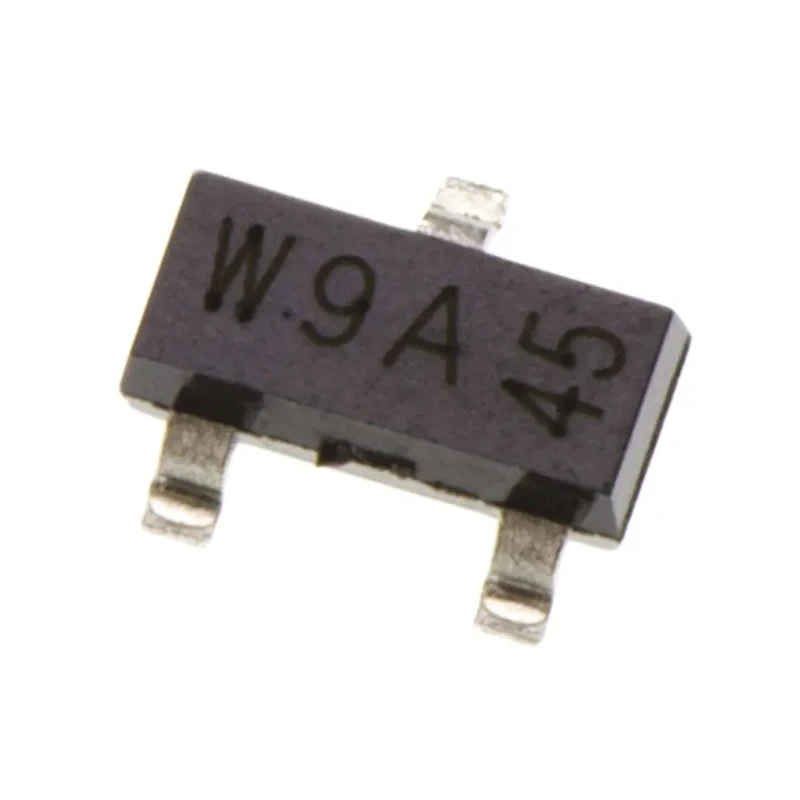

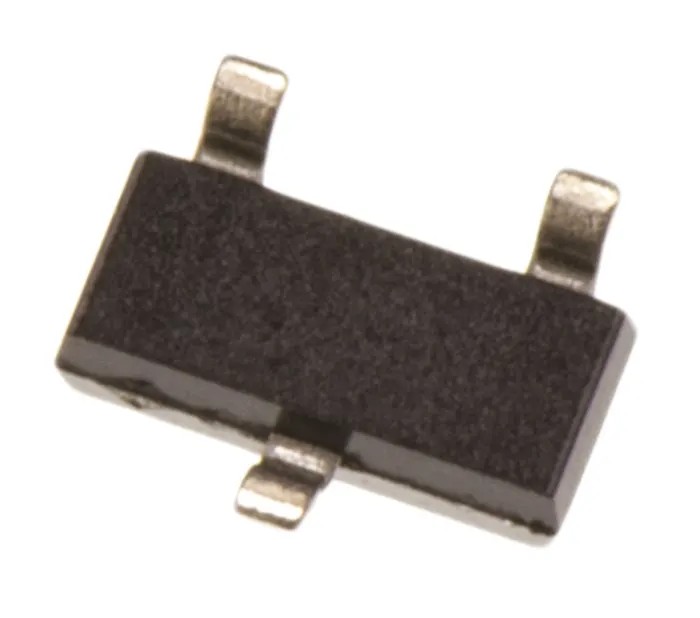

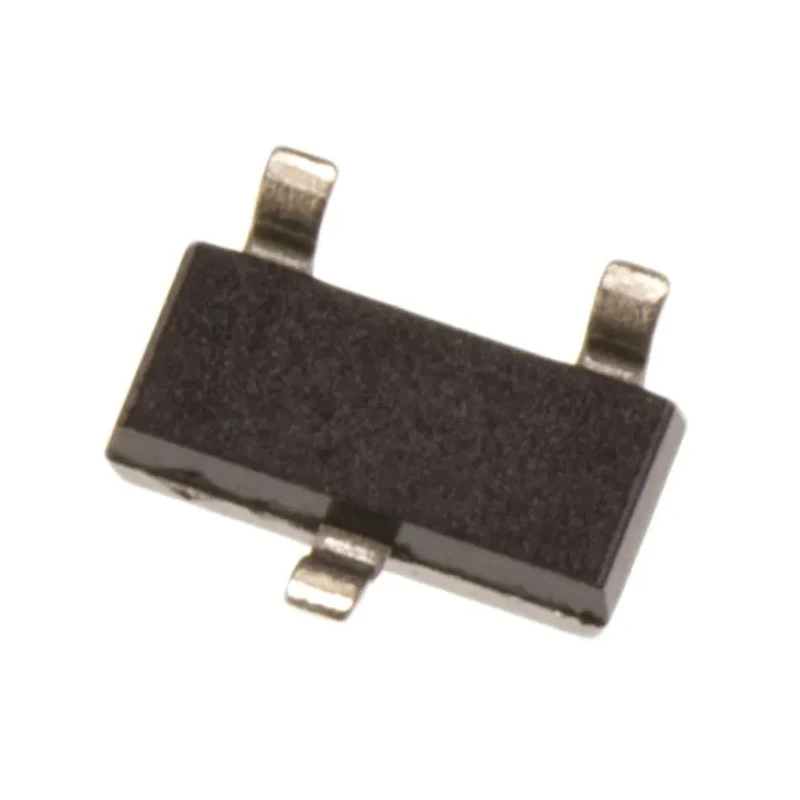

Nexperia 1.5 V Zener Diode Single 250 mW 4% Tolerance Surface Mount 3-Pin SOT-23 PLVA650A,215
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | PLVA650A,215 |
| Mount Type | Surface |
| Series | PLVA6xxA |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 0.25mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 5V |
| Zener Type | Avalanche |
| Maximum Zener Impedance | 700Ω |
| Typical Voltage Temperature Coefficient | 0.2mV/°C |
Key Features
- Nominal Zener voltage is 5 V with a 4% tolerance.
- Maximum power dissipation is rated at 250 mW for efficient thermal handling.
- Features an avalanche type Zener diode configuration for improved noise performance.
- Suitable for surface mount applications with a compact 3 mm length and 1.1 mm height package.
- Maximum operating temperature ranges from -65°C to 150°C providing reliability in harsh environments.
- Low test current of 0.25 mA ensures minimal power consumption in circuits.
- Maximum Zener impedance is 700 Ω offering stable voltage regulation.
- Reverse leakage current is minimal at 20 μA enhancing circuit efficiency.
Product Description
Nexperia PLVA650A,215 is a high-quality 1.5 V Zener Diode designed for precise voltage regulation and protection in electronic circuits. This single element Zener diode is rated at 250 mW power dissipation with a tight 4% voltage tolerance, allowing stable performance in applications requiring voltage reference or surge protection.
The diode is surface mount compatible with a compact 3-pin SOT-23 package measuring 3 mm in length and 1.1 mm in height. It features an avalanche Zener type construction known for low noise characteristics, suitable for sensitive electronic and automotive circuitry.
Electrical characteristics include a nominal Zener voltage of 5 V, a maximum test current of 0.25 mA, and a maximum Zener impedance of 700 Ω which contribute to excellent voltage stabilization capabilities. Reverse leakage current is controlled to a maximum of 20 μA, ensuring minimal losses and circuit disturbance.
Operating over a temperature range of -65°C to 150°C, this diode maintains reliability under extreme conditions, complying with the stringent automotive AEC-Q101 standard for enhanced durability in automotive electronics and industrial use.
The PLVA6xxA series encompasses reliable semiconductor devices widely used in power management, voltage regulation, and protection circuits in various industrial, automotive, and consumer electronics applications.
Nominal voltage 5 V with ±4% tolerance. Power rating of 250 mW ensures robust operation. Compact surface mount package SOT-23 fits high-density PCB designs. AEC-Q101 compliant for automotive grade applications. Low noise avalanche Zener diode type.
Wide operating temperature range from -65°C to 150°C. Low leakage current for energy-efficient circuits. Smooth voltage regulation due to low Zener impedance. Single element chip design for reliability. Package dimensions 3 mm x 1.1 mm for space-saving footprint.
This Nexperia Zener Diode PLVA650A,215 is recommended for industrial, automotive, and commercial electronics where voltage stabilization and protection against voltage spikes are critical. Explore related semiconductor products and components on EnvMart for your industrial applications.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5 V with a tolerance of ±4%.
The maximum power dissipation for this model is rated at 250 mW.
This Zener diode comes in a surface mount SOT-23 package, measuring 3 mm in length and 1.1 mm in height.
The maximum operating temperature for this diode is 150°C.
The minimum operating temperature for this model is -65°C.
The maximum reverse leakage current is 20 μA.
The maximum Zener impedance is 700 Ω, which contributes to stable voltage regulation.
The test current for this diode is 0.25 mA.
This diode complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
It features an avalanche type Zener diode configuration, known for improved noise performance.
This chip contains a single element Zener diode.
This Zener diode is recommended for industrial, automotive, and commercial electronics where voltage stabilization and protection against voltage spikes are critical.
