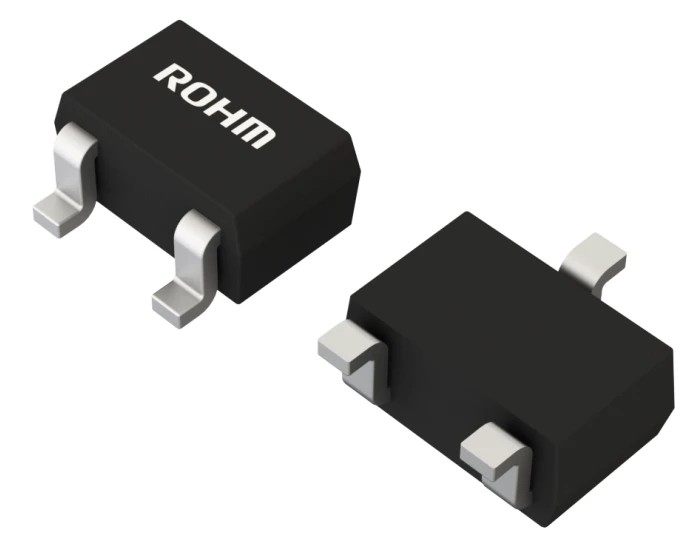

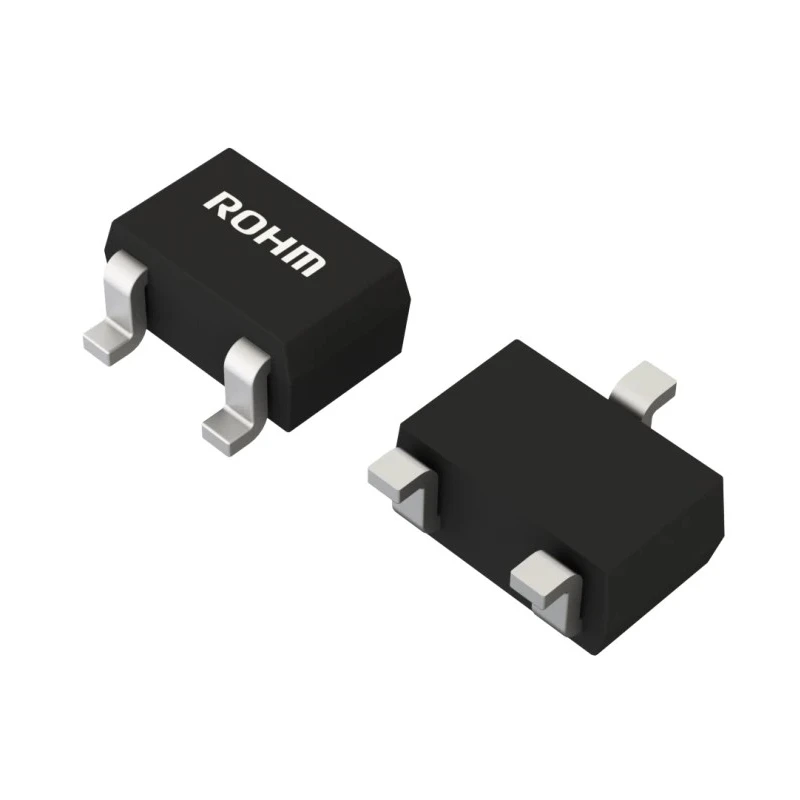

ROHM Schottky Barrier Diode 40 V 0.08 A Surface Mount 3-Pin SOT-323 RB508FM-40SFHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB508FM-40SFHT106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.08A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 340μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- Compact SOT-323 surface mount package designed for efficient PCB assembly.
- Maximum continuous forward current of 0.08 A suitable for low power rectification applications.
- Peak reverse repetitive voltage rated at 40 V ensuring reliable blocking capability.
- Low forward voltage drop of 0.66 V enhances efficiency in power circuits.
- Wide operating temperature range from -55°C to 150°C for robust performance.
- Extremely low typical peak reverse current of 340 μA minimizes leakage losses.
- Peak non-repetitive forward surge current capacity of 1 A for transient event tolerance.
- Series diode configuration with 3 pins to simplify circuit integration.
Product Description
The ROHM RB508FM-40SFHT106 is a Schottky barrier diode characterized by a compact SOT-323 surface mount package with three pins. Designed for general rectification in electronic circuits, this diode offers a maximum continuous forward current rating of 0.08 A and a peak reverse repetitive voltage of 40 V, making it ideal for low voltage power applications.
This diode features a low forward voltage drop of 0.66 V which contributes to improved efficiency and reduced power loss in DC circuits. Furthermore, it operates reliably over an extensive temperature range from -55°C to 150°C, ensuring durability in various environmental conditions.
The device’s peak reverse current is notably low at approximately 340 μA, reducing leakage current and enhancing circuit stability. Additionally, it supports a peak non-repetitive forward surge current rating of 1 A, allowing it to withstand occasional transient currents without damage.
Being a surface mount device, it facilitates automated PCB assembly, saves space, and offers high reliability for applications in industrial electronics, power supply circuits, and consumer electronic devices.
The RB508FM series complies with RoHS standards, assuring environmentally conscious production without hazardous substances. Its small mold type package is suitable for manufacturing and design efficiency improvements.
Compact SOT-323 package for surface mount applications. Maximum forward current: 0.08 A and peak repetitive reverse voltage: 40 V. Low typical forward voltage of 0.66 V increases efficiency. Wide operating temperature range from -55°C to 150°C.
Peak reverse current of 340 μA minimizes leakage. Peak surge current tolerance of 1 A for transient loads. Series diode configuration with three pins. RoHS compliant for environmentally friendly use. High reliability and suitable for electronic and industrial applications.
Explore high reliability Schottky barrier diodes and other semiconductor components in our Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 0.08 A.
The peak reverse repetitive voltage for this model is rated at 40 V.
The diode has a low forward voltage drop of 0.66 V, which enhances efficiency in power circuits.
It operates reliably over a wide temperature range from -55°C to 150°C.
The typical peak reverse current is approximately 340 μA, minimizing leakage losses.
The diode can withstand a peak non-repetitive forward surge current of 1 A.
This diode features a series configuration with 3 pins.
Yes, the diode complies with RoHS standards, ensuring environmentally friendly production.
It comes in a compact SOT-323 surface mount package, designed for efficient PCB assembly.
This model is suitable for general rectification in electronic circuits and low voltage power applications.
This model is a Schottky barrier diode, which is known for its low forward voltage drop and fast switching capabilities.
The country of origin for this diode is India.
