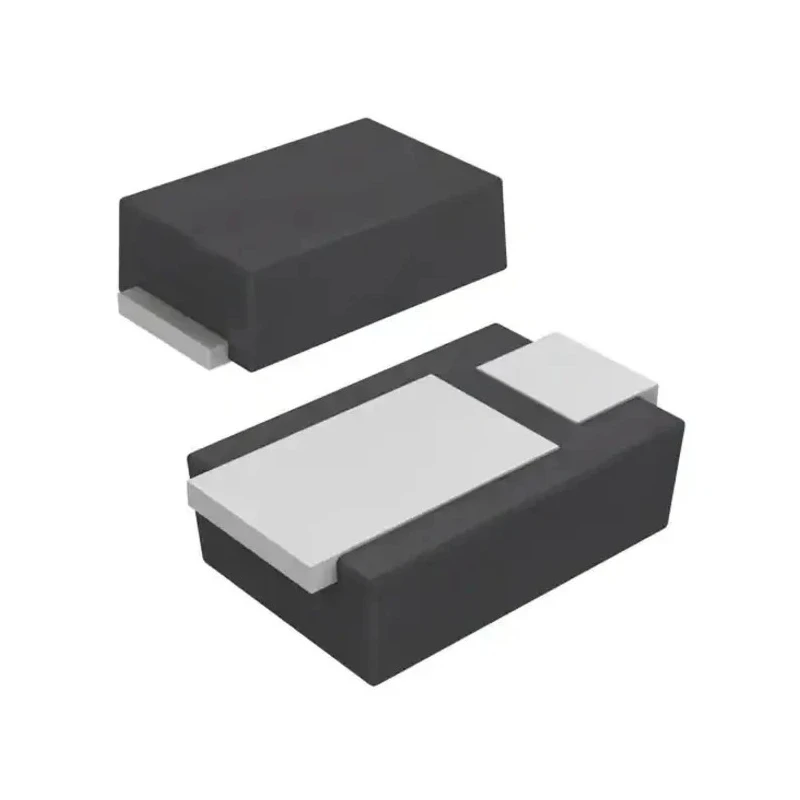

ROHM 40 V 1 A Surface Mount Rectifier & Schottky Diode PMDE Package RBR1VWM40ATR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RBR1VWM40ATR |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PMDE |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 0.52V |
Key Features
- Maximum continuous forward current of 1 ampere enables reliable current handling.
- Peak reverse repetitive voltage rating of 40 volts ensures robust blocking capability.
- Low forward voltage drop of 0.52 V enhances efficiency in power circuits.
- Operates in a wide temperature range from -55°C to 150°C for industrial environments.
- Compact 2-pin PMDE surface mount package suitable for space-saving PCB designs.
- Peak non-repetitive forward surge current rating of 20 A provides surge handling capacity.
- RoHS compliant ensuring environmental safety.
- Single diode configuration ideal for rectification and switching applications.
Product Description
ROHM RBR1VWM40ATR is a high reliability 40 V, 1 A Schottky diode designed for surface mount applications. It features a low forward voltage drop of 0.52 V, enabling efficient power rectification in various electronic circuits. The compact PMDE package with 2 pins supports dense PCB layouts sought in modern electronic designs.
This diode allows continuous forward current of 1 ampere with a peak reverse repetitive voltage of 40 volts, making it suitable for power conversion and protection functions across industrial and commercial electronics.
Operating temperature range from -55°C to 150°C ensures stable performance even under harsh environmental conditions. The diode's peak non-repetitive forward surge current of 20 A offers transient handling capability for surge events.
Conforming to RoHS standards, the RBR1VWM40ATR supports eco-friendly manufacturing processes and end-user safety. The device’s extremely low peak reverse current of 50 microamperes minimizes leakage current and power loss in circuits.
Typical applications include general rectification, power supplies, switching power circuits, and industrial control systems. Its high reliability and low voltage drop characteristics make it an essential component for efficient power management.
Maximum continuous forward current of 1 ampere enables reliable current handling. Peak reverse repetitive voltage rating of 40 volts ensures robust blocking capability. Low forward voltage drop of 0.52 V enhances efficiency in power circuits.
Operates in a wide temperature range from -55°C to 150°C for industrial environments. Compact 2-pin PMDE surface mount package suitable for space-saving PCB designs. Peak non-repetitive forward surge current rating of 20 A provides surge handling capacity.
RoHS compliant ensuring environmental safety. Single diode configuration ideal for rectification and switching applications. Extremely low peak reverse current of 50 microamperes reduces leakage losses. Designed for high reliability in power rectifier and Schottky Diode applications.
Explore more semiconductor and power electronic components at EnvMart for your industrial, manufacturing, and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the RBR1VWM40ATR is 1 ampere.
This model has a peak reverse repetitive voltage rating of 40 volts.
The forward voltage drop of this Schottky diode is 0.52 volts.
It operates within a temperature range from -55°C to 150°C.
This diode comes in a compact PMDE package with 2 pins, suitable for surface mount applications.
The peak non-repetitive forward surge current rating is 20 amperes.
The peak reverse current is rated at 50 microamperes.
Yes, the RBR1VWM40ATR is RoHS compliant, ensuring environmental safety.
It features a single diode configuration, ideal for rectification and switching applications.
Typical applications include general rectification, power supplies, switching power circuits, and industrial control systems.
Key features include a low forward voltage drop, high surge current capacity, and a wide operating temperature range.
The country of origin for this diode is India.
