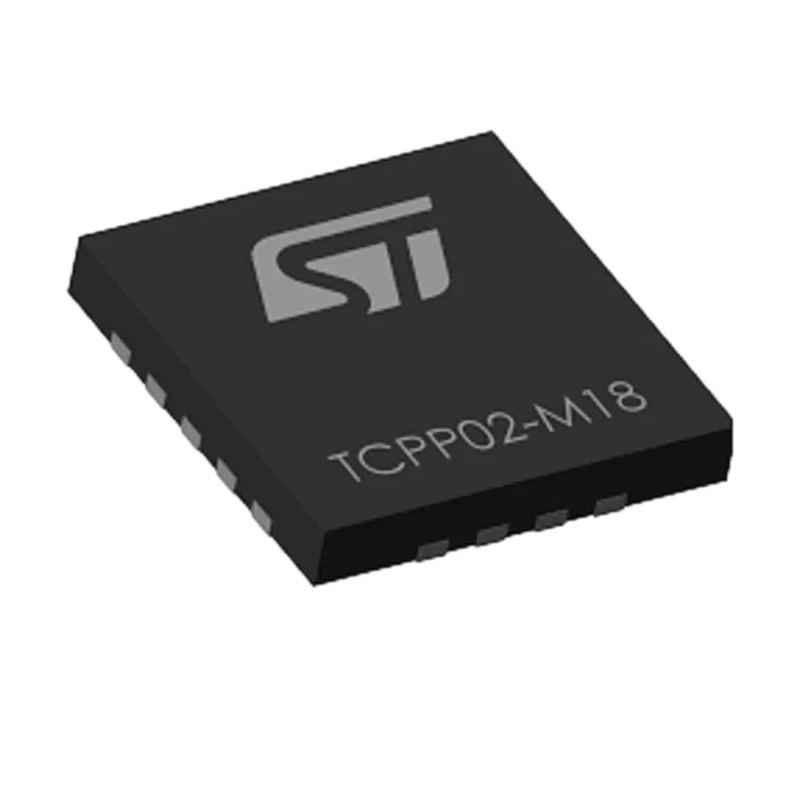

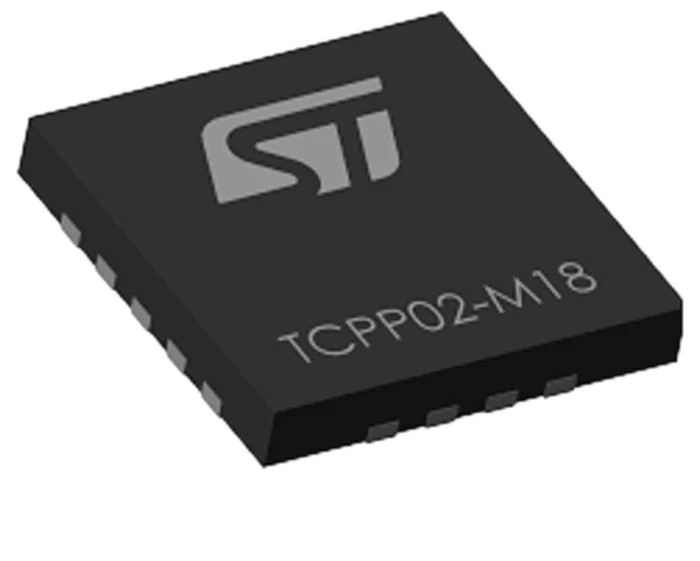

STMicroelectronics USB Controller, USB Type C Interface, 5.5V Max Supply Voltage, 2.7V Min Supply Voltage, 18-Pin TCPP02-M18
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 600μm |
| Length | 3.5mm |
| Model | TCPP02-M18 |
| Mount Type | Surface |
| Series | TCPP02-M18 |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN-18 |
| Sub Type | USB Interface |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB-C power delivery standard 3 |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2.7mA |
| USB Specification | USB Type C |
| Supported Protocols | USB Type C |
Key Features
- Provides 24 V tolerant ESD protection according to IEC61000-4-2 level 4 on USB-C communication pins.
- Includes overvoltage protection on CC1 and CC2 pins against shorts with VBUS pin.
- Features programmable VBUS overcurrent protection with integrated charge pump and gate driver.
- Supports VBUS current sensing with analog output and integrated discharge functions.
- Equipped with over temperature and over voltage protections for robust operation.
- Compliant with USB-C power delivery standard 3.1 up to 100 W power range.
- Operates over a junction temperature range of -40 °C to 125 °C.
- Uses a compact surface mount 18-pin QFN package with dimensions 3.5 mm length and 600 μm height.
Product Description
STMicroelectronics TCPP02-M18 is a USB Controller designed for USB Type C interfaces, supporting a maximum supply voltage of 5.5 V and minimum of 2.7 V. Housed in an 18-pin QFN package with dimensions 3.5 mm by 600 μm, it provides robust protection and management features for USB Type C source applications.
The controller offers 24 V tolerant ESD protection compliant with IEC61000-4-2 level 4 on CC lines, ensuring high reliability against electrostatic discharge. It integrates overvoltage protection on CC1 and CC2 lines to prevent damage caused by short circuits with VBUS pins, common during cable insertion or removal.
An integrated charge pump and gate driver facilitate external N-channel MOSFET control for programmable VBUS overcurrent protection. Analog output current sensing and discharge capabilities on VBUS and VCONN lines provide enhanced power management and safety.
Additional safety features include over temperature protection and over voltage protection on CC lines, complying with USB-C power delivery standard 3.1 to support programmable power supply up to 100 W. Communication is managed through an I2C interface with two available addresses, enabling flexible system integration.
The device operates reliably in ambient temperatures ranging from -40 °C to 125 °C, suitable for industrial and automotive environments. Its surface mount QFN-18 package and low supply current of 2.7 mA make it ideal for compact, power-efficient designs.
This USB Controller is applicable in consumer electronics, industrial equipment, and automotive systems requiring compliant and safe USB Type C power delivery solutions. Provides 24 V tolerant ESD protection per IEC61000-4-2 level 4.
Overvoltage and overcurrent protection on CC and VBUS lines. Integrated charge pump and gate driver for external MOSFETs. Supports USB-C power delivery standard 3.1 up to 100 W. Wide operating temperature range from -40 °C to 125 °C.
Compact 18-pin QFN surface-mount package with low power consumption. Explore EnvMart’s Electronics & Electricals section for a wide range of semiconductor and USB Interface ICs designed to meet advanced industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5 V.
It operates reliably in ambient temperatures ranging from -40 °C to 125 °C.
This model uses a compact surface mount 18-pin QFN package with dimensions of 3.5 mm in length and 600 μm in height.
It offers 24 V tolerant ESD protection compliant with IEC61000-4-2 level 4 on the CC lines.
The TCPP02-M18 supports the USB Type C specification and is compliant with USB-C power delivery standard 3.1.
The supply current for this model is 2.7 mA.
It includes overvoltage protection on CC1 and CC2 lines, over temperature protection, and programmable VBUS overcurrent protection.
It supports VBUS current sensing with an analog output and has integrated discharge functions.
The TCPP02-M18 supports the USB Type C protocols.
This model has a pin count of 18.
It is applicable in consumer electronics, industrial equipment, and automotive systems requiring USB Type C power delivery solutions.
It integrates a charge pump and gate driver for controlling external N-channel MOSFETs, enabling programmable VBUS overcurrent protection.
