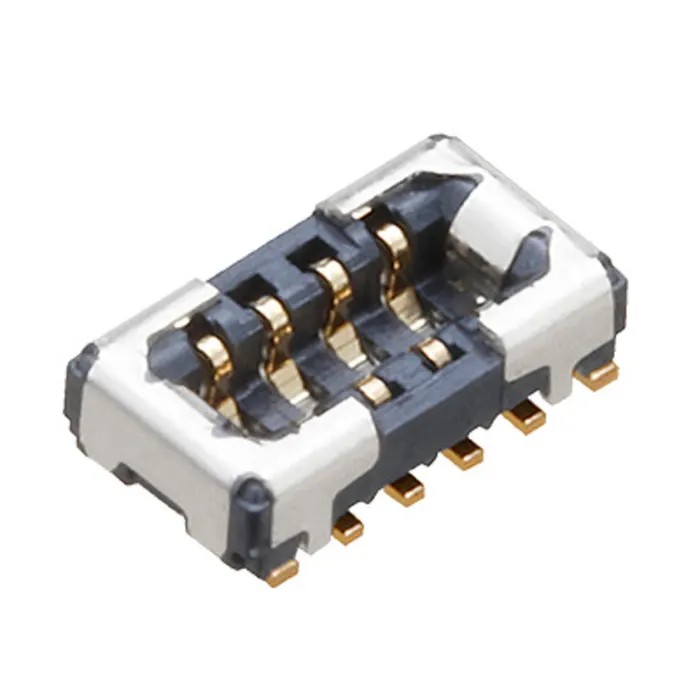

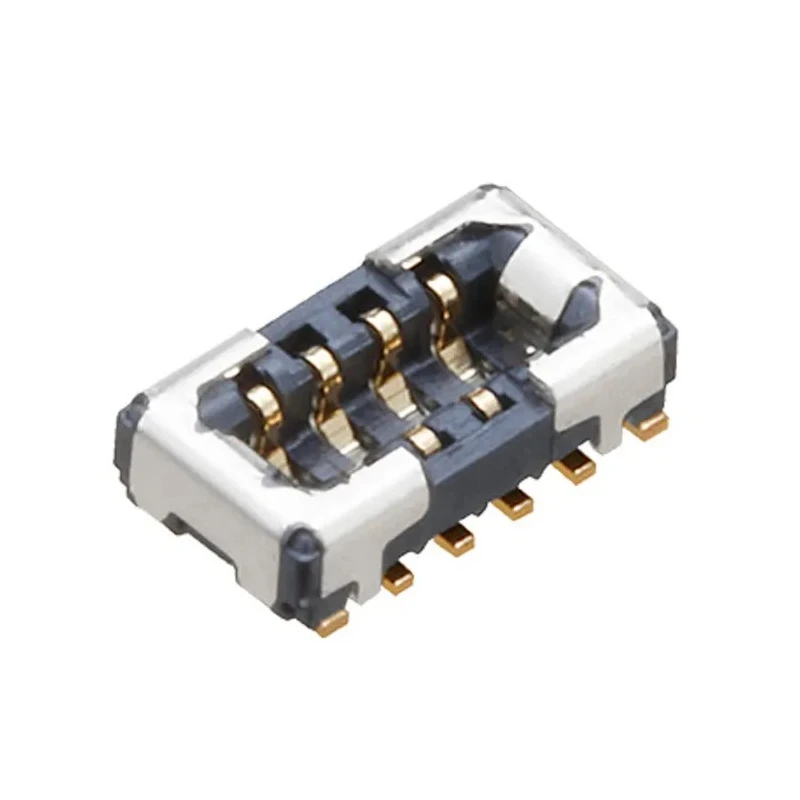

Panasonic AXF Series Horizontal Surface PCB Socket, 4-Contact, 1 Row, 0.35 mm Pitch, 3A, 30V, Liquid Crystal AXF5K0412A

Panasonic AXF5K0412A is a high-performance horizontal surface PCB socket designed for compact and robust electronic applications. This connector features 4 female contacts arranged in a single row with a fine pitch of 0.35 mm, suitable for board-to-board connections in densely packed circuits.

The socket supports a continuous current of 3 amperes and withstands operating voltages up to 30 volts, making it ideal for low power electronics. Its housing is made from Liquid Crystal Polymer, which provides exceptional mechanical strength and thermal stability while maintaining a slim profile.

Mechanical design optimizes space with a width of only 1.3 mm and a low mated height of 0.6 mm, enabling compact device layouts without sacrificing performance. The TOUGH CONTACT construction ensures a secure connection with high mating force and offers excellent durability to handle multiple mating cycles.

Gold and nickel plating on copper alloy contacts provide strong corrosion resistance and reliable electrical contact. The connector performs reliably in a temperature range from -55°C to 85°C, suitable for various industrial and commercial electronic assemblies.

This series from Panasonic has no special standards or approvals but is manufactured in Japan to high factory quality. Its surface mount termination and horizontal orientation facilitate automated assembly processes, increasing manufacturing efficiency.

Applications for this PCB socket include industrial control electronics, telecommunications equipment, instrumentation, and computing devices requiring miniature, reliable board-to-board connectors.

Supports 3A current rating ensuring reliable conductivity. Compact 0.35 mm pitch and low profile design. Durable Liquid Crystal Polymer housing construction. Gold and nickel plated copper alloy contacts resist corrosion.

Wide operating temperature from -55°C to 85°C. Horizontal board-to-board connector for flexible PCB layouts. Manufactured in Japan ensuring quality and consistency. Surface mount termination suitable for automated assembly.
