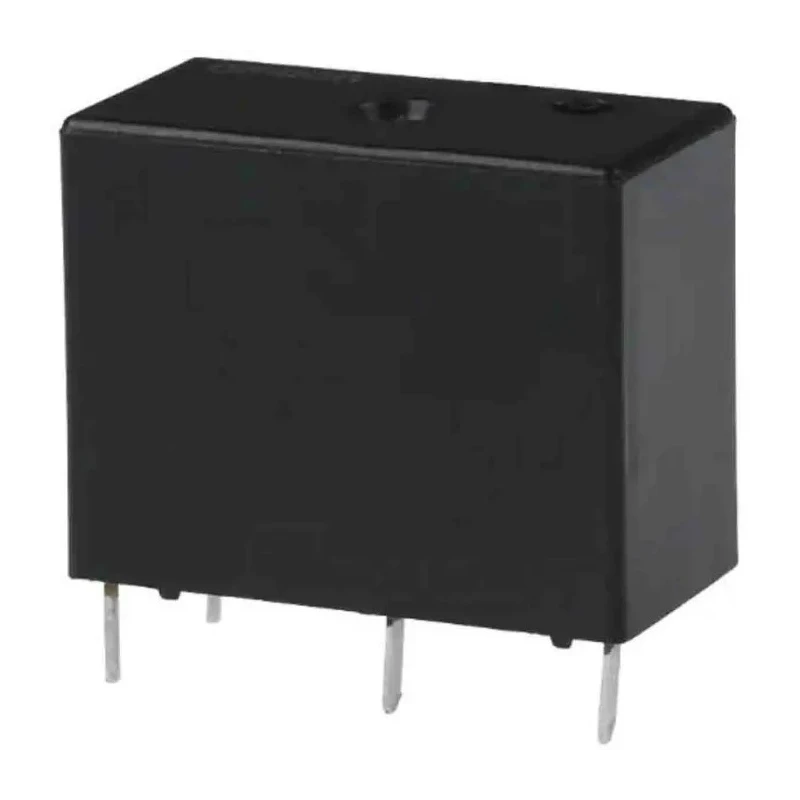

Omron PCB Power Relay 5V DC Coil 10A Switching Current SPST G5Q-1A-EU DC5 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 18.9mm |
| Length | 20mm |
| Model | G5Q-1A-EU DC5 (TY) |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- The relay features a 5V DC coil voltage providing efficient switching operations.
- Single Pole Single Throw (SPST) contact configuration ensures straightforward switching.
- Supports a maximum switching current of 10A for robust electrical loads.
- Capable of switching DC voltages up to 30V and AC voltages up to 277V.
- Designed for PCB mounting with PCB pin terminals for convenient integration.
- Coil resistance is accurately set at 125 ohms for stable coil power consumption.
- Operates efficiently within a temperature range of -40°C to 105°C.
- Equipped with silver alloy contacts ensuring low contact resistance of 100mΩ for optimal performance.
Product Description
The Omron G5Q-1A-EU DC5 (TY) PCB Power Relay is engineered for precise and reliable switching in control and automation equipment. Featuring a 5V DC coil voltage and SPST (Single Pole Single Throw) contact configuration, this relay is ideal for applications requiring stable and efficient switching up to 10A.
Its robust switching capacity for DC voltages (up to 30V) and AC voltages (up to 277V) allows integration in diverse electrical systems. Designed for printed circuit board mounting, it uses PCB pin terminals simplifying installation and ensuring secure connections.
The relay operates within harsh industrial environments, supporting a wide temperature range from -40°C to 105°C and ambient humidity tolerance up to 85%. Silver alloy contacts minimize contact resistance to 100mΩ, enhancing electrical conductivity and durability.
Compact in size (20mm length, 18.9mm height, 10mm width), it fits efficiently in constrained spaces in manufacturing, automation, HVAC, and industrial control applications. With coil resistance of 125Ω and coil power of 200mW, it maintains low power consumption while delivering reliable performance.
Omron's power relay adheres to RoHS standards ensuring compliance with environmental safety directives. It is manufactured in China and supplied in new condition, making it a dependable component for professional and industrial use.
The relay's 5V DC coil voltage delivers consistent switching power. SPST contact configuration for simplified switching control. Maximum switching current of 10A suitable for medium-load applications. Switching voltages of 30V DC and 277V AC extend operational flexibility.
Compact PCB mount type with pin terminals for easy installation. High reliability through silver alloy contacts with low resistance. Wide operating temperature range supports diverse environmental conditions. Coil resistance and power specifications promote energy efficiency.
RoHS certification ensures compliance with environmental laws. Explore additional Omron Power Relays and related automation components on EnvMart to find the ideal solutions for industrial control, manufacturing, and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 5V DC, which provides efficient switching operations.
It supports a maximum switching current of 10A, making it suitable for medium-load applications.
This relay features a Single Pole Single Throw (SPST) contact configuration for straightforward switching.
It can switch DC voltages up to 30V and AC voltages up to 277V, allowing for versatile integration in electrical systems.
The contact resistance is 100mΩ, which helps enhance electrical conductivity and performance.
The relay has dimensions of 20mm in length, 18.9mm in height, and 10mm in width, making it compact for PCB mounting.
It operates efficiently within a temperature range of -40°C to 105°C, suitable for harsh industrial environments.
It is designed for PCB mounting and uses PCB pin terminals for convenient integration.
The contacts are made of silver alloy, which minimizes contact resistance and enhances performance.
The coil resistance is set at 125Ω, which contributes to stable coil power consumption.
Yes, it adheres to RoHS standards, ensuring compliance with environmental safety directives.
The coil power consumption is 200mW, promoting energy efficiency during operation.
