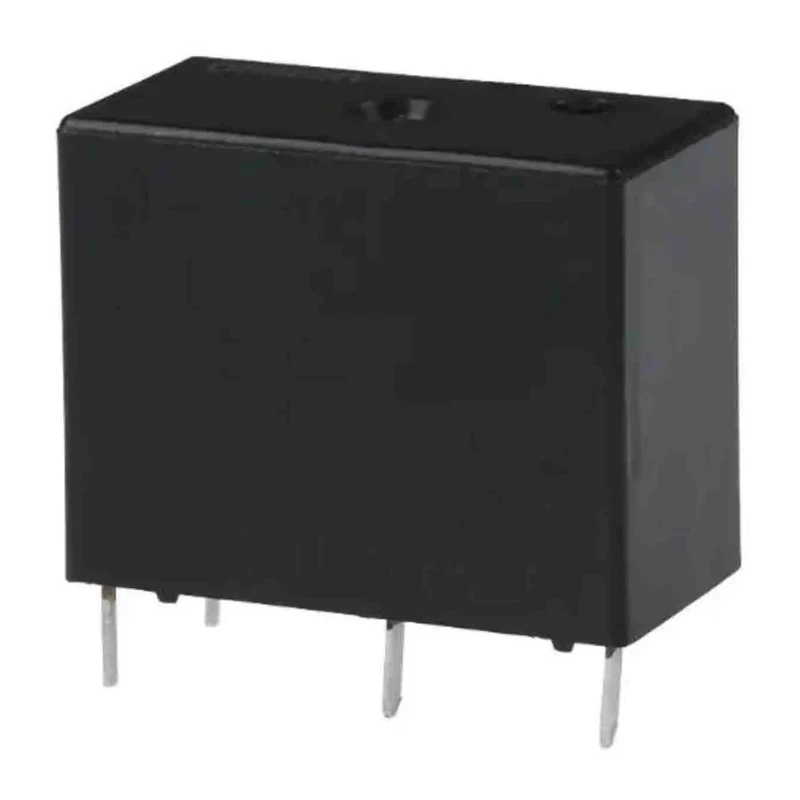

Omron PCB Power Relay SPST 12V DC Coil 10A Switching Current G5Q-1A4 DC12 (TY)

Omron G5Q-1A4 DC12 (TY) PCB Power Relay is a high-performance single pole single throw (SPST) relay designed for PCB mounting with a 12V DC coil voltage and a maximum switching current of 10A. It features a compact form factor with dimensions of 20mm in length, 10mm in width, and 18.9mm in height. The relay operates efficiently within a wide temperature range from -40°C to 105°C, making it highly suitable for diverse industrial and commercial applications.

Built with silver alloy contact material, it offers low contact resistance of 100mΩ and coil resistance of 720 Ohms, consuming only 200mW coil power. The relay complies with RoHS standards and incorporates a class F coil insulation system for enhanced reliability and insulation. It supports switching voltages up to 30V DC and 277V AC, making it versatile for both DC and AC circuits.

This power relay is optimized for use in control equipment output applications, offering an 8-kV impulse withstand voltage which ensures robustness against voltage spikes. It uses PCB pins for easy and secure mounting onto printed circuit boards.

Designed with a 12V DC coil voltage for efficient operation. Supports switching current up to 10A for reliable electrical control. Single Pole Single Throw (SPST) contact configuration for standard switching applications.

Compact dimensions: 20mm length, 10mm width, and 18.9mm height. Built to operate in temperatures ranging from -40°C to 105°C reliably. Uses silver alloy contact material ensuring low contact resistance of 100mΩ. Features a coil resistance of 720 Ohms and coil power consumption of 200mW.

Suitable for PCB mounting with PCB pin terminal type for easy integration. Meets RoHS standards with high-quality class F coil insulation system. Capable of withstanding 8-kV impulse voltage for enhanced durability.

This Omron power relay is ideal for electrical, automation, and control system applications in industrial, manufacturing, and commercial environments. It provides dependable switching performance, ensuring safety and operational efficiency. Browse more quality Power Relays and electrical components at EnvMart.
