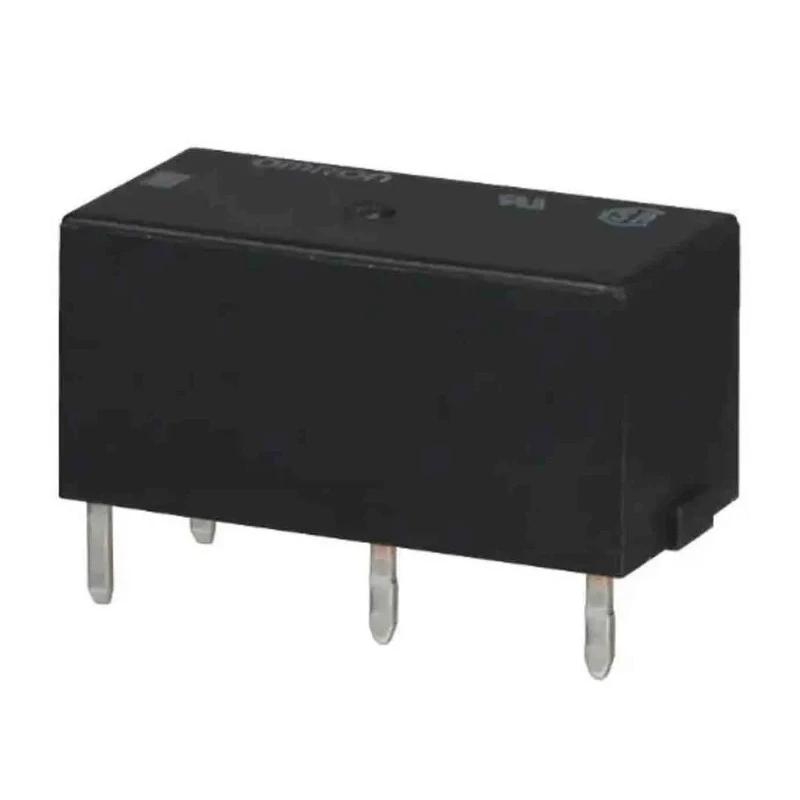

Omron PCB Power Relay 5V dc Coil 5A Switching Current SPST G6B-2014P-US DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 16mm |
| Length | 20mm |
| Model | G6B-2014P-US DC5 |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83.3Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 300mW |
Key Features
- Designed for PCB mounting with PCB pin terminals.
- Switching voltages up to 125V dc and 380V ac for versatile use.
- Silver alloy contact material with low contact resistance of 30mΩ.
- Coil voltage of 5V dc with resistance of 83.3Ω and 300mW coil power.
- Operating temperature range from -25°C to 70°C.
- Compact size with 20mm length, 9.9mm width, and 16mm height.
- Fully sealed construction ensuring durability and environmental protection.
- RoHS compliant for environmentally safe operation.
Product Description
Omron G6B-2014P-US DC5 PCB Power Relay offers a reliable switching solution with a coil voltage of 5V dc and a maximum switching current of 5A in a Single Pole Single Throw (SPST) configuration. It is specifically designed for PCB mounting, featuring PCB pin terminals for easy integration.
This relay supports switching DC voltage up to 125V and AC voltage up to 380V, making it suitable for various industrial and electronic applications requiring efficient power control. The relay uses silver alloy contacts, which provide excellent conductivity and durability, while maintaining a maximum contact resistance of only 30 milliohms to minimize losses.
The relay’s coil resistance is precisely 83.3 ohms, consuming only 300 milliwatts of power, which enhances energy efficiency. Operating temperature range is from -25°C to 70°C, allowing consistent performance in diverse environments. The compact dimensions of 20mm length, 9.9mm width, and 16mm height contribute to its suitability for tight PCB layouts.
Fully sealed construction protects against contaminants and environmental factors, ensuring long-term reliability and compliance with RoHS standards. This makes the relay suitable for applications in electrical, automation, industrial machinery, HVAC, and manufacturing sectors.
Manufactured in China, the Omron G6B-2014P-US DC5 power relay combines high dielectric strength, compact form factor, and robust electrical characteristics, making it an optimal choice for power relay applications requiring stable and efficient switching.
Designed for PCB mounting with PCB pin terminals. Switching voltages up to 125V dc and 380V ac for versatile use. Silver alloy contact material with low contact resistance of 30mΩ. Coil voltage of 5V dc with resistance of 83.3Ω and 300mW coil power.
Operating temperature range from -25°C to 70°C. Compact size with 20mm length, 9.9mm width, and 16mm height. Fully sealed construction ensuring durability and environmental protection. RoHS compliant for environmentally safe operation.
Suitable for industrial, electrical, automation, and PCB power relay applications. Manufactured with high-quality standards by Omron in China. Browse more products in the Electronics & Electricals Power Relays category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 5V DC.
The maximum switching current for the G6B-2014P-US DC5 is 5A.
This power relay has dimensions of 20mm in length, 9.9mm in width, and 16mm in height.
The contact configuration of the G6B-2014P-US DC5 is Single Pole Single Throw (SPST).
The operating temperature range is from -25°C to 70°C.
This model is designed for PCB mounting and features PCB pin terminals.
The relay supports a maximum switching voltage of 125V DC and 380V AC.
The contacts of the G6B-2014P-US DC5 are made of silver alloy.
The contact resistance is 30 milliohms (30mΩ).
The coil resistance is 83.3 ohms, and it consumes 300 milliwatts of power.
Yes, this power relay is RoHS compliant, ensuring environmentally safe operation.
This relay is suitable for applications in electrical, automation, industrial machinery, HVAC, and manufacturing sectors.
